2.7

Drive unit installation

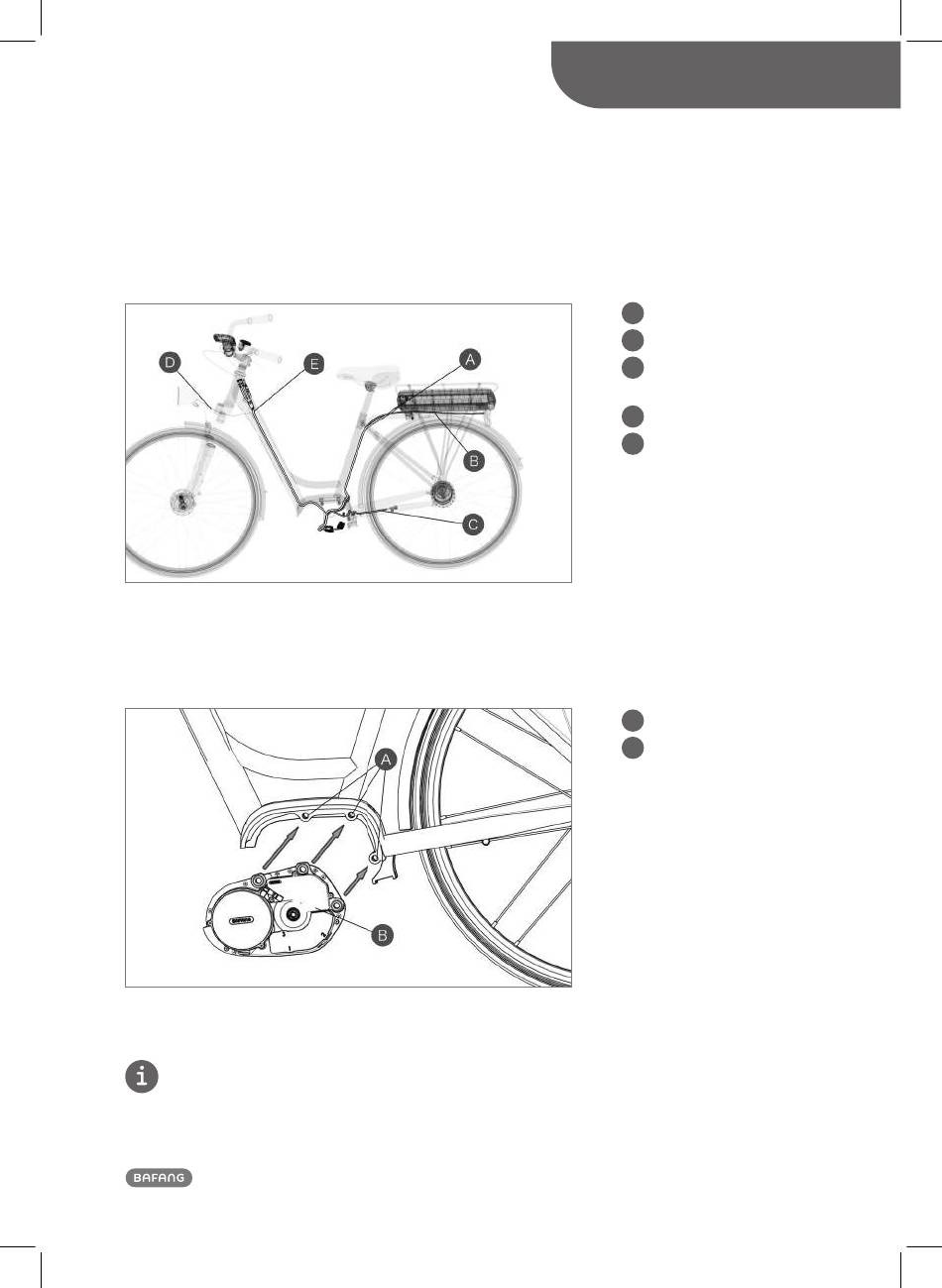

Cables should be arranged in advance according to the e-bike type and the cabling system before installing the drive
unit.
Align the three mounting holes of the drive unit with the mounting holes in the bike frame.
Pay attention to the outgoing directions of the cables. Please note that the cables should not be squeezed by the drive unit.
DEALER MAnuAL Max Drive SySteM
SyStEM InStALLAtIon
battery cable
A
taillight cable
b
external speed sensor
C
cable
headlight cable
D
EB-BuS
e
mounting holes
A
drive unit
b
MM G33.350
