When the components are connected:
1. Start the software for the "webvisu" control panel.
Enter the following values to your Windows network settings to this end:
IP address: 192.168.178.5
Subnet mask: 255.255.255.0
The web interface can be found at the following URL:
http://192.168.178.10:8080/webvisu.htm
2. Insert a workpiece into the holding unit.
3. Advance the parallel gripper to the pick position. Use the scroll keys in the "webvisu" user interface
under "H-gantry".
4. Save the positions by clicking the "Teach" button.
5. Close the gripper by clicking the "Open/close gripper" button.
6. Advance to an idle position (scroll keys). In doing so, advance in the negative X direction until a new
workpiece fits into the picking station.
© Festo Didactic 8049748

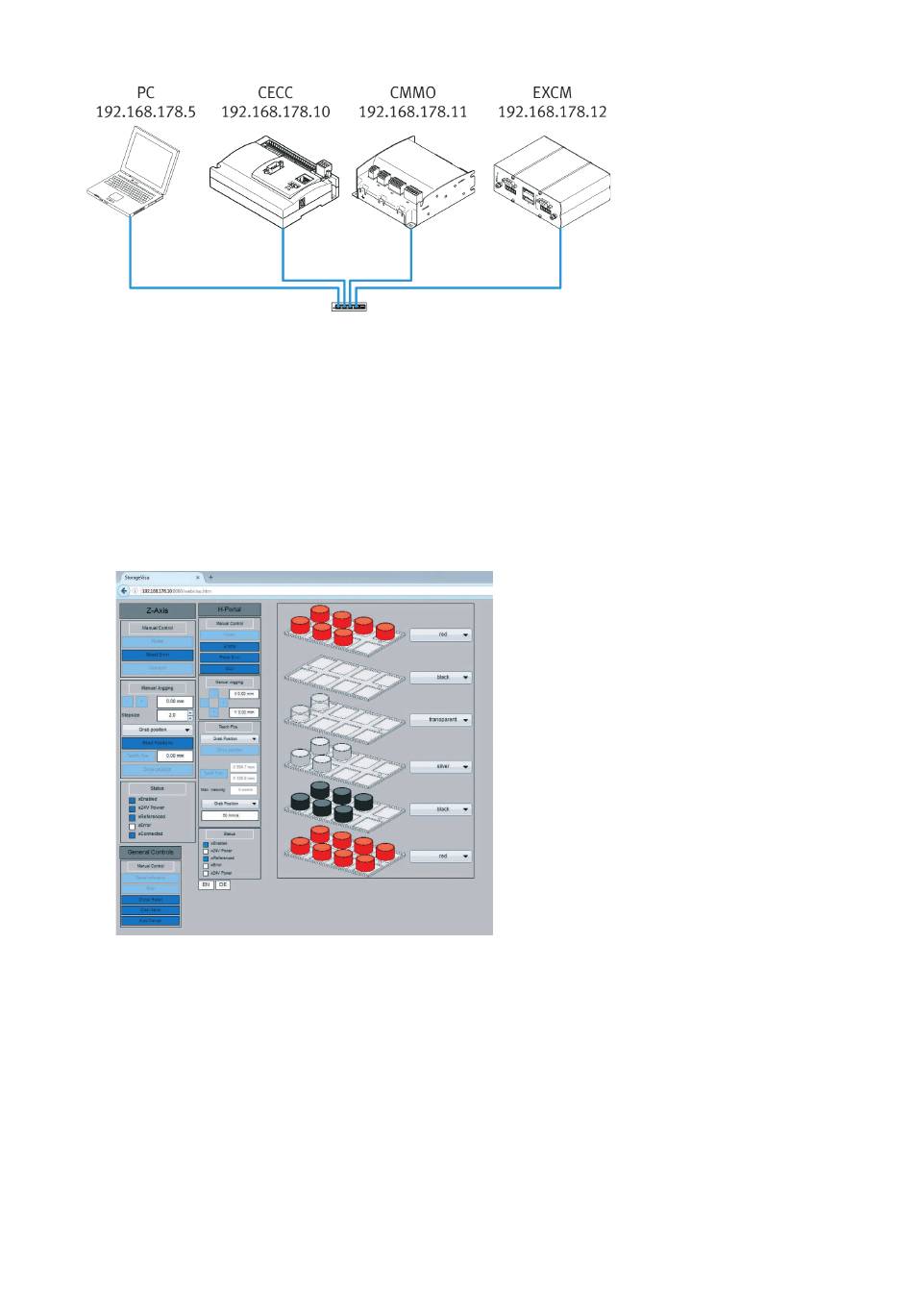

User interface of the visualization and control software
Storage station
