1.- PRESENTATION AND GENERAL ASPECTS

1.1 GENERAL POINTS
The DaKaR EVOluTIOn key cutting machine has been designed on the basis of safety
standards currently in force in the Eu.
The safety of the personnel involved in handling this type of machines can only be
achieved with a well designed worker safety programme, like the implementation of
a maintenance programme and following recommended advice as well as compliance
with the safety standards included in this manual.
although the machine is not difficult to install, it is best not to try to install, adjust or
use it without having first read this manual.
The machine leaves our factory ready for use and only requires calibration operations
for the tools that are going to be used.
1.2 TRANSPORT AND PACKING
The machine comes in a robust cardboard box protected with packing foam with the
following dimensions:
Width = 520 mm; height = 650 mm; Depth = 575 mm
Weight of machine plus packing = 30 Kg.
When you unpack the machine, check carefully to see if it has suffered any damage
during transportation.
If you find any problems, please inform the carrier immediately and do not do anything
with the machine until the carrier's agent has carried out an inspection.
To move the machine from one place to another, get hold of the machine by the base,
and not by any other part.

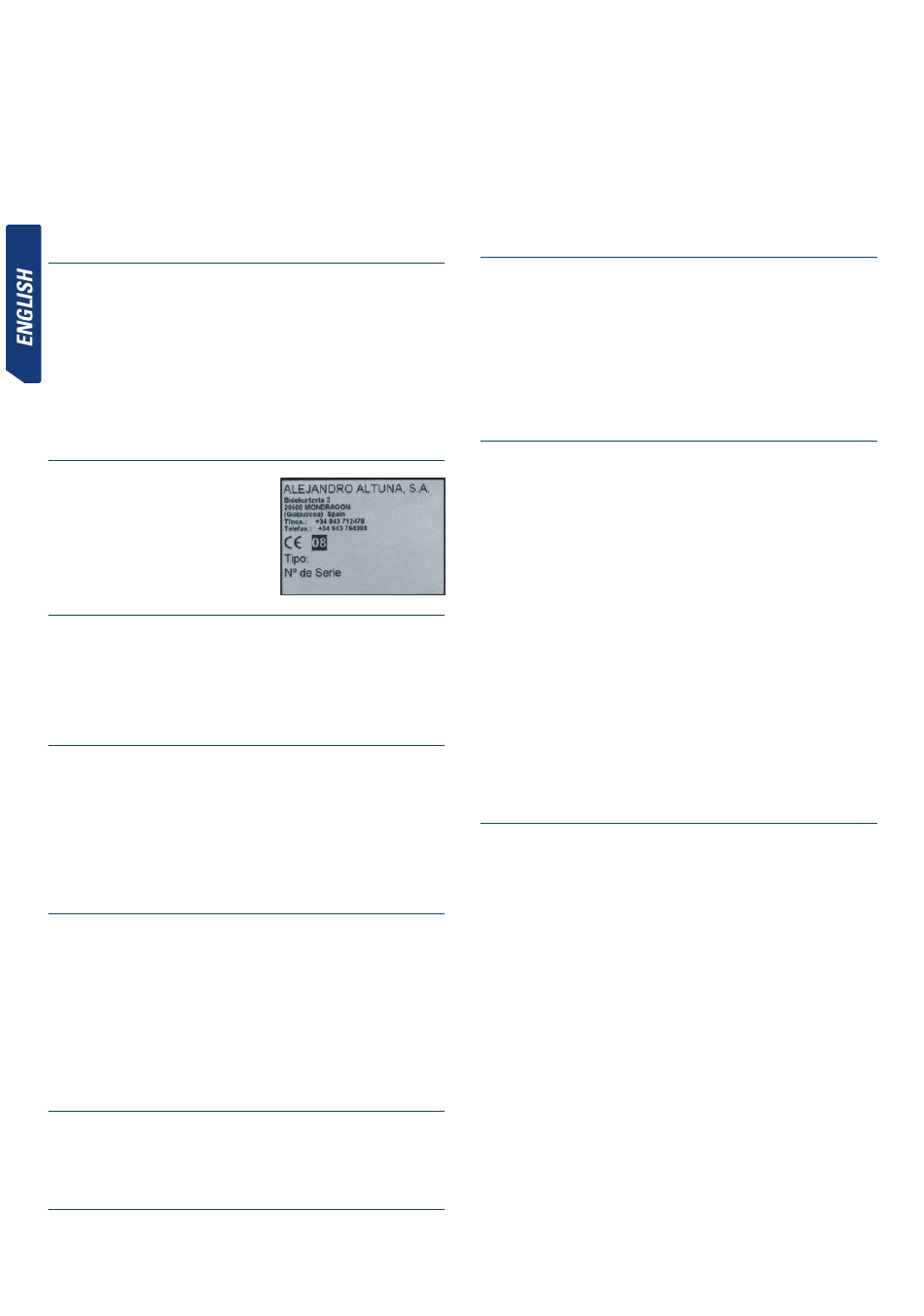

1.3 IDENTIFICATION LABEL
The DaKaR EVOluTIOn key cutting ma-
chine has an identification label, giving the
machine's serial or registration number, the
manufacturer's name and address, the cE
mark and year of manufacture.

2. - CHARACTERISTICS OF THE MACHINE

The DaKaR EVOluTIOn machine is a highly robust and precision key cutting machine,
which stands out for having a clamp that enables many different types of keys to be
clamped, without the need for any adaptors.
It incorporates a novel force control system, which increases cutting precision.
2.1 FAMILIES OF KEYS
The DaKaR EVOluTIOn machine cuts the following types of keys, among others:
- Dimple keys
- Wave keys
- Tubular keys
- Fc6 and Fc120 keys
- TK23, TK24 and TK25 keys
- JIS4p keys
- TB1p5 keys
2.2 ACCESSORIES
The machine is supplied with a number of accessories for its use and maintenance. all
these accessories can be housed in the machine's tool store.
- 2 fuses (housed in the bottom of the tool store)
- Set of allen keys (5, 3 and 2.5)
- 1 special 1.5 short-arm allen key
- 2 tip-stop strips
- 2 jaw adjustment rods.
- 2 adaptors for chI9T tubular key
- cutters: F-1 and F-13
- Tracer points: T-1 and T-13.
2.3 TOOL STORE
The machine has a tool store, which is fitted to the top of the machine. It can be remo-
ved and laid directly on a table (in this way providing extra space on top of the machine,
which can be used for keeping keys, accessories, etc...).
2.4 ELECTRIC CIRCUIT
The main components of the electric and electronic circuits are as follows:
Socket.
connection plate.
3-position switch.
Transformer.
motor.
Keypad-display.
control card.
cutter.
Tracer point.
clamp.
lighting lED.
Force sensor.
See Figure 2
2.5 TECHNICAL DATA
Motor: Single phase 400 W. ,230 V - 50 hz (Optional: Single phase 400W, 110V – 60hz)
Cutter: hSS (Optional: hard metal)
Cutter speed: 6,000 and 11,000 r.p.m.
Clamps: Two clamping faces and 0 / 45 º tilting
Displacement: On three axes with precision roller guides.
Effective stroke: X axis = 71 mm; Y axis = 62 mm; Z axis = 40 mm
Lighting: lED
Dimensions: Width = 430 mm, Depth = 385 mm and height = 485 mm
Weight: 25 Kg
2.6 MAIN ELEMENTS OF THE MACHINE
1.- Keypad-display
2.- clamp-holder slide (X – Y axes)
3.- Slide activation lever, x – y axes
4.- Knob to block clamp-holder slide, x axis
5.- Slide spring mechanism activation wheel, x-axis
6.- clamp
7.- lever to block clamp rotation
8.- clamp knob
9.- head (Z axis)
10.- lever to activate and block head, z axis
11.- Tracer point spring mechanism knob
12.- Tool-holder
13.- cutter
14.- Tracer point
15.- Tracer point height adjustment wheel
16.- main switch
17.- motor speed selector (2 speeds)
18.- lighting lEDs
19.- Swarf protector
20.- Tool store
21.- cutter blocking button
See Figure 3
2.7 COMPONENTS AND FUNCTIONAL PARTS
2.7.1 chanGInG ThE cuTTER anD TRacER pOInT (21)
To release the cutter, you have to press the cutter blocking button and at the same time
rotate the tool-holder by hand.
after removing the cutter to be replaced, insert the new cutter and secure it in the tool-
holder, making sure that its end butts up against the inside of the tool-holder.
The tracer point is replaced in the same way as the cutter. The only difference to bear in
mind is that the rotation of the tracer point is always blocked internally.
2.7.2 BlOcKInG ThE SlIDE aT ThE EnD OF ThE "Y" aXIS TRaVEl
In order to prevent the slide from moving in the "Y" direction, whilst the key cutting
machine is holding the keys in the clamp, the slide has been equipped with momentary
blocking in that direction.
To active this blocking, just move the slide as far as it will go in the direction towards
to the key cutting machine.
To deactivate the blocking, just move the slide forward, exercising a little force.
2.7.3 clamp (6)
The features of the clamp on the DaKaR EVOluTIOn key cutting machine are superior
to those of any normal machine on the market, as it has two separate clamping faces.
In addition, the clamps can be blocked in any rotation position between 45º 0º -45º.
2.7.4 TRacER pOInT SpRInG mEchanISm (11)
The tracer point can be used in two different ways, depending on the work you are
going to do:
