Accessory Pendulum mounts VPN

7 Accessory Pendulum mounts VPN

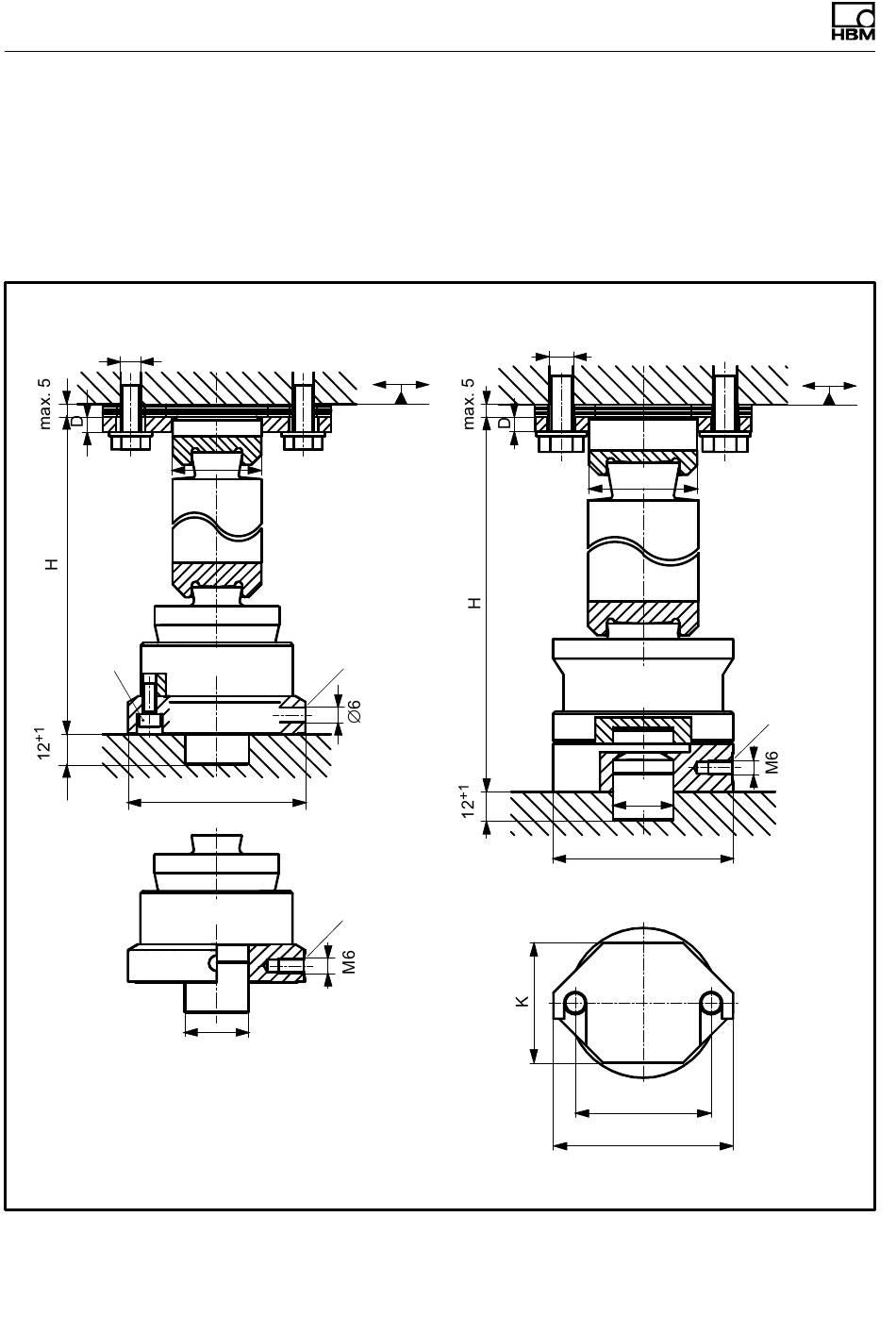

RTN/...T/VPN (Pendulum mounts for Load cells RTN... / 1 t - 100 t)
Material: Stainless steel
M
RTN... / ≤4.7 t
(2)
RTN... / ≤4.7 t
(1) = Permissible play
(2) = 4 Screws M5x12 DIN EN ISO 4762;
Torque: 4 N@m
(3) = Bore hole for ventilation
(4) = Earthing connection
18
Scope of supply: Base plate, Pendulum, Center ring,
Shims, Collapsible tube grease, Screws
∅A
(3)
∅B
(4)
D10
∅25
h9
A1153-2.0 HBM: public
M
( 1 )
±N
∅A
RTN... /
10 t ... 100 t
D10
∅25
h9
∅B
Top view
F
E
Dimensions in mm
( 1 )
±N
(4)
RTN
