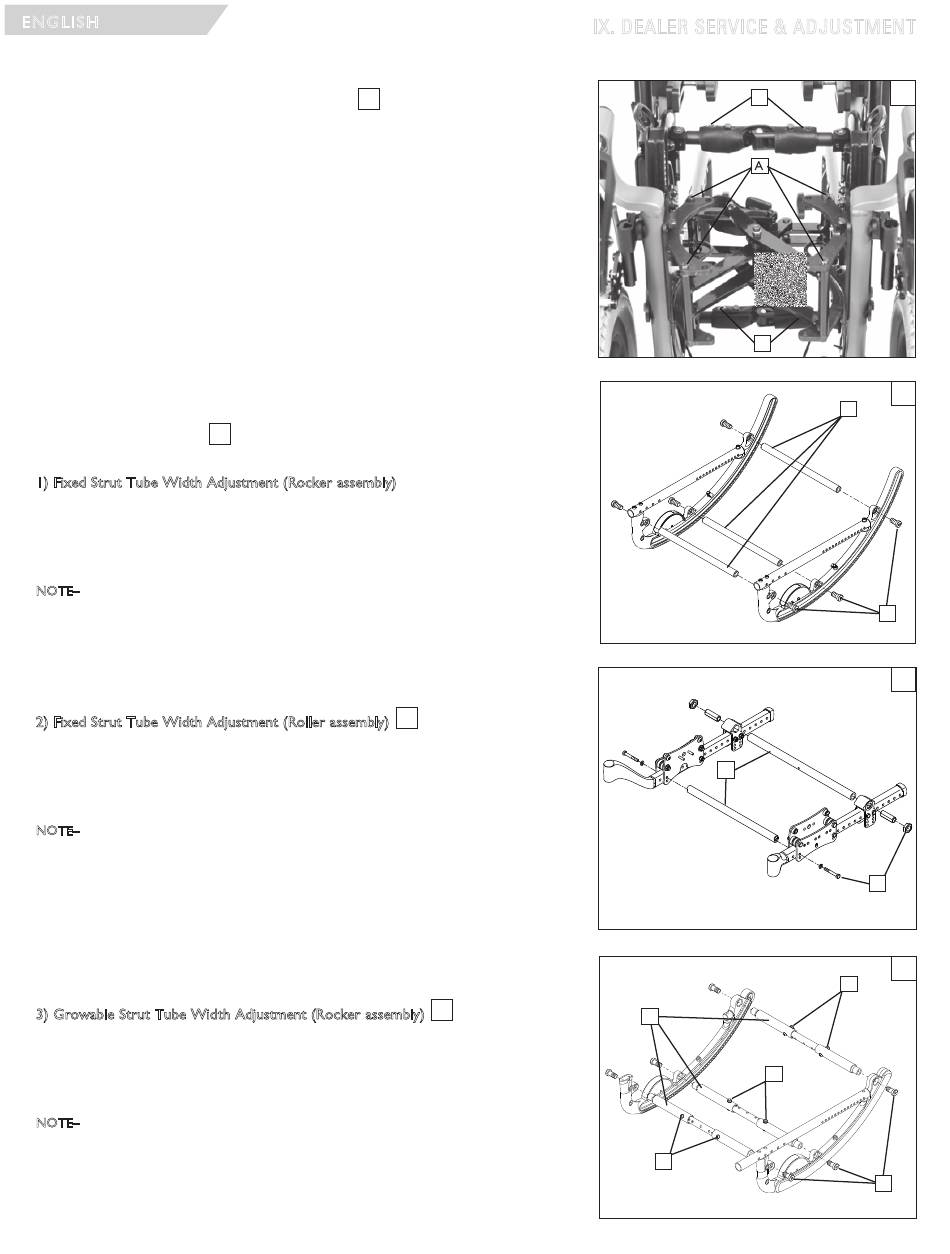

BB. XLOCK™ WIDTH ADJUSTMENT
1. Frame Width Adjustment either 1" (only adjust 1 side) or 2" (adjust both sides).
a. Remove the Hex head screws, and washers (A) from the left and/or right front
side frame tabs depending if you want a 1" or 2" adjustment.
b. Remove the Hex head screws, and washers (B) from the front and rear strut
locking tubes.
c. Re-align the XLOCK™ assembly with the correct adjustment holes.
d. Thread the Hex head screws (A) and washers thru the tab holes and into the
XLOCK™ Brace.
e. Thread the Hex Head screws (B) into the locking struts in the adjustment
holes at the new width.
f. Tighten all of the hex head screws to 120 in-lbs.
CC. FRAME WIDTH
The frame of the IRIS is built to accommodate growth by using the growth kit components.
1) Fixed Strut Tube Width Adjustment (Rocker assembly)
a. Remove the bolts (C) from both ends of the strut tubes (D) for all strut tubes.
b. Replace with the appropriate length strut tubes
c. Tighten the bolts (C) at each end.
d. Repeat for each strut tube (D).
NOTE– Use a torque setting of 200 in.-lbs. when tightening hardware (C).
2) Fixed Strut Tube Width Adjustment (Roller assembly)
a. Remove the bolts (E) from both ends of the strut tubes (F) for all strut tubes.
b. Replace with the appropriate length strut tubes
c. Tighten the bolts (E) at each end.
d. Repeat for each strut tube (F).
NOTE– Use a torque setting of 200 in.-lbs. when tightening hardware (E).
3) Growable Strut Tube Width Adjustment (Rocker assembly)
a. Remove the hardware (G) from all three strut tubes (H) and adjust all three tubes an
equal distance.
b. When you are sure the width is equal for all three adjustable tubes, tighten the hard-
ware to a torque setting of 150 in-lbs after adjusting the strut tubes.
NOTE–
Use a torque setting of 200 in.-lbs. when tightening hardware (C).
