E NG LI S H

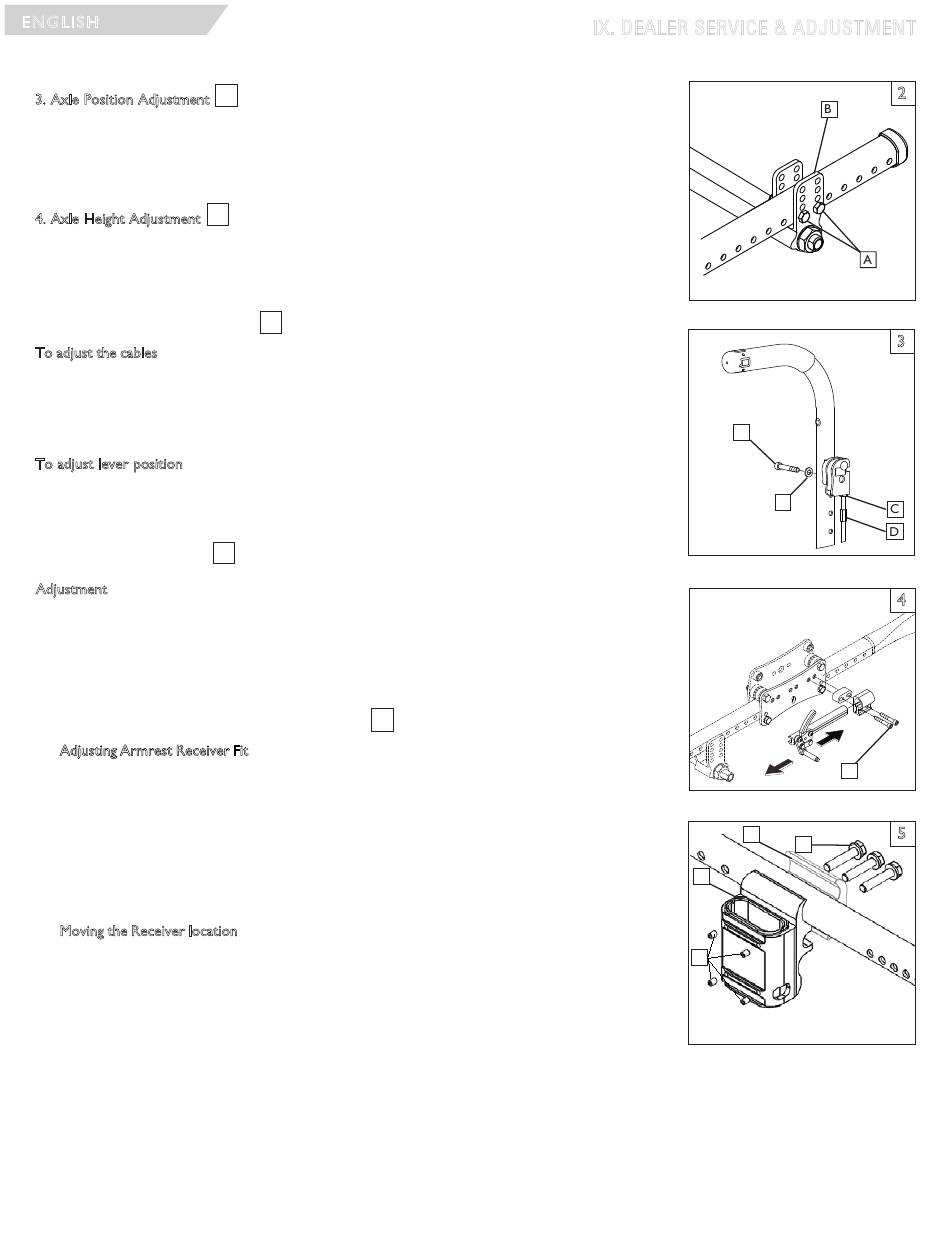

3. Axle Position Adjustment
a. Remove both wheels from the chair.
b. Remove the bolts (A) from the axle plate (B) on both sides of the chair.
c. Reposition the axle plate in desired position.
d. Insert and tighten bolts (A).
4. Axle Height Adjustment
a. Loosen and remove bolts (A).
b. Set axle at desired height using pre-set holes in the axle plate (B) on both sides.
c. Replace and tighten bolts.
E

. HUB LOCK ADJUSTMENT

To adjust the cables
a. Loosen jam nut (C) using a 10mm wrench.
b. Turn adjustment screw (D) in our out as necessary. Turning screw upward will loosen cable, turning
downward will tighten cable.
c. Re-tighten jam nut (C) against lever mount.
d. Repeat steps 1-3 for opposite side of chair as necessary.
To adjust lever position
a. Remove socket screw (E) and washer (F) from lever and backrest.
b. Choose desired hole in backrest to mount lever and re-install screw and washer.
c. Repeat steps 1-2 for opposite side of chair.
F. WHEEL LOCKS
Adjustment
a. Evenly loosen both screws (G). Do not attempt to remove one screw at a time.
b. Slide assembly toward rear wheel until clamp embeds into tire to prevent wheel movement, when in
locked position.
c. Tighten screws (G).
G. SINGLE -POST ARMREST RECEIVER
1. Adjusting Armrest Receiver Fit
To tighten or loosen the fit of the armpost in the receiver:
a. Loosen the 4 set screws (J) by using a 5/64" Hex Key.
b. With the armrest assembly in the receiver (K) press firmly on the outside of the
receiver.
c. Maintain pressure on the receiver and re-tighten two of the set screws (J).
d. Remove the armrest assembly and re-tighten the remaining two set screws.
e. The armrest will fit firmly in the receiver and lessen any noise that may result
from vibration.
2. Moving the Receiver location
a. Loosen the 3 bolts (I) holding the clamp halves(H) together (do not remove
them)
b. Slide the clamp so that armrest is at the correct position.
c. Tighten the 3 bolts (I).
2
2
3
4
5
IX. DEALER SERVICE & ADJUSTMENT
21
E
F
G
H
I
K
J
MK-100151 Rev. D
2
3
4
5
