E NG LI S H

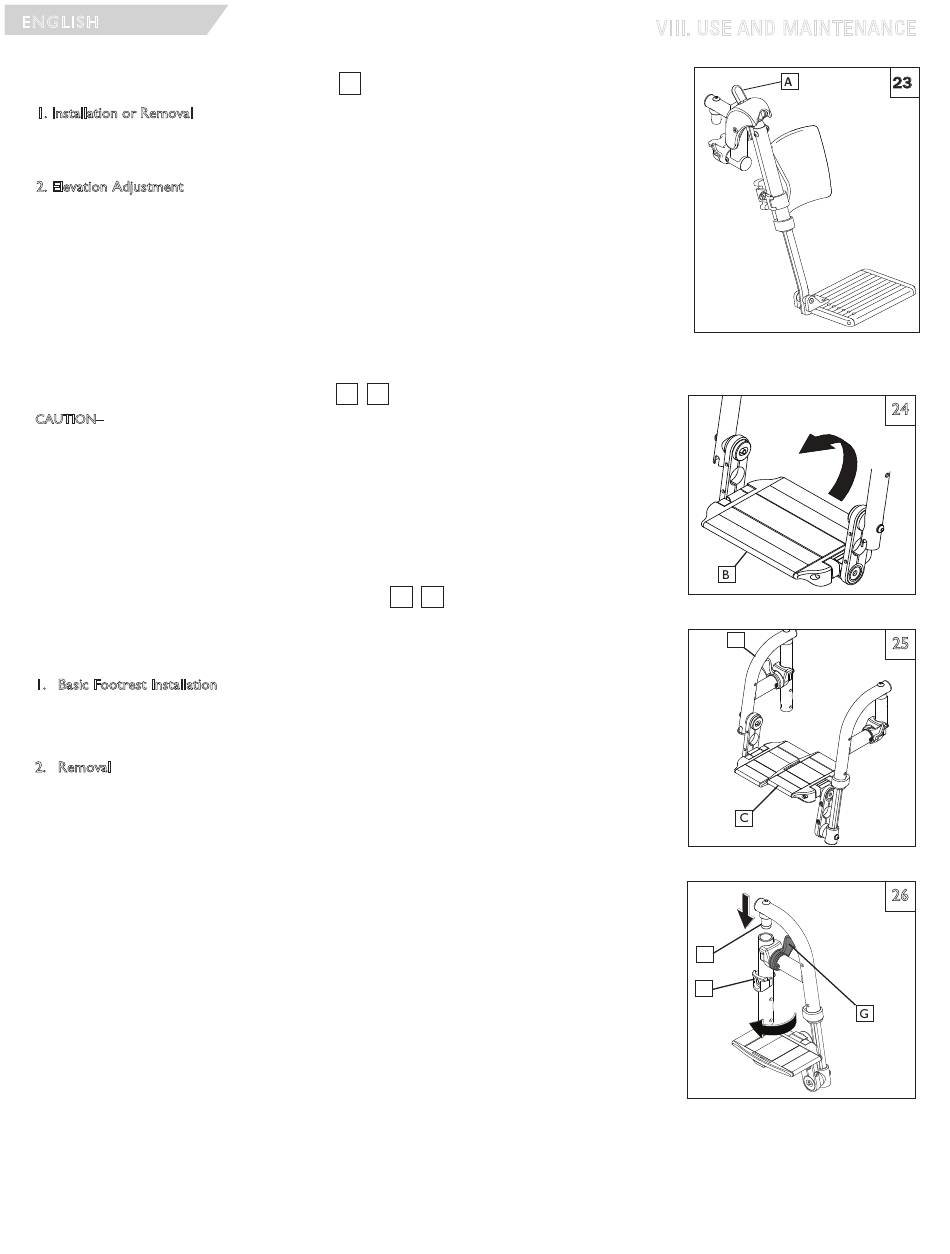

R. ELEVATING LEGREST (optional)
1. Installation or Removal
To install or remove Elevating Legrest (ELR) see instructions for Swing-away Footrest
installation.
2. Elevation Adjustment
a. To raise legrest, lift to desired position. Legrest will automatically lock in place.
b. To lower legrest, while seated in chair, press release lever (A) down and lower legrest to desired posi-
tion. Legrest will automatically lock in place.
S. Z-FINITY™FOOTREST SYSTEM
CAUTION– The Z-Finity™Footrest system is rated to 165lbs (75kg)
With the footrest system, Sunrise Medical offers either a single Flip-up Footplate (B), or dual footplates (C) that
are able to accomodate all of the possible heights and adjustment angles that the rider may require for their
comfort and support.
T. Z-FINITY™SWING-AWAY FOOTREST
The footrest system can also accomodate a swing-away hanger(D) with dual footplates (C) that are both height
adjustable and angle adjustable.
Swing-in-Swing-out Hangers and Footrests (80°)
1. Basic Footrest Installation
a. From the side, place the pivot (E) into the top of the frame tube which guides the hanger into the cor-
rect alignment with the locking plate (F) on front frame tube.
b. Rotate the footrest towards the front of the chair until it locks into place on locking plate.
2. Removal
a. To remove footrest, release latch (G) by pulling lever upward or pushing lever downward.
b. Rotate footrest inward or outward and lift.
23
24 25
25 26
17
VIII. USE AND MAINTENANCE
Elevating
Legrest
D
E
F
24
25
26
