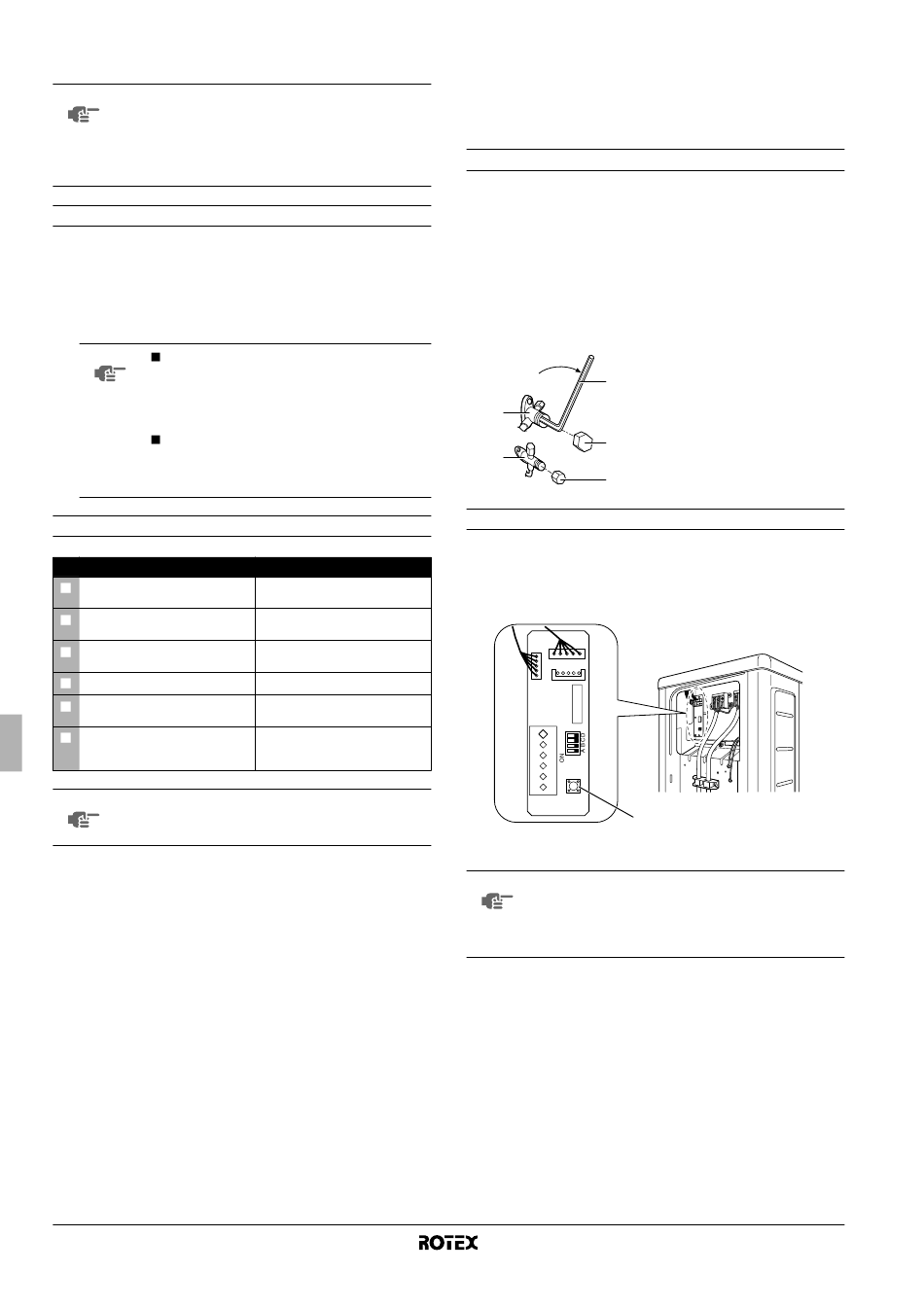

T
EST RUN AND FINAL CHECK
NOTE
Remark that during the first running period of the unit,
required power input may be higher than stated on the
nameplate of the unit. This phenomenon originates
from the compressor that needs elapse of a 50 hours
run in period before reaching smooth operation and
stable power consumption.

Trial operation and testing

1
Measure the voltage at the primary side of the safety breaker.
Check that it is 230 V.
2
Carry out the test operation in accordance with the indoor
installation manual and operation manual to ensure that all
functions and parts are working properly.
NOTE
The unit requires a small amount of power in
its standby mode. If the system is not to be
used for some time after installation, shut off
the circuit breaker to eliminate unnecessary
power consumption.
If the circuit breaker trips to shut off the
power to the outdoor unit, the system will
restore the original operation mode when the
power supply is restored.

Items to check

Check
Outdoor unit is installed properly
on solid base.
No refrigerant gas leaks.
Refrigerant gas and liquid pipes
are thermally insulated.
System is properly earthed.
The specified wires are used for
interconnecting wire connections.
Outdoor unit air intake and
exhaust is free of obstructions.
Stop valves are opened.
NOTE
Have the customer actually operate the unit while
looking at the manual included with the indoor unit.
Instruct the customer how to operate the unit correctly.
Installation manual
10
Symptom
Fall, vibration, noise
Incomplete cooling/heating
function
Water leakage
Electrical leakage
Inoperative or burn damage
Incomplete cooling/heating
function
P
UMP DOWN OPERATION
In order to protect the environment, be sure to pump down when
relocating or disposing of the unit. The pump down operation will
extract all refrigerant from the piping into the outdoor unit.

Pump down procedure

1
Remove the valve lid from liquid stop valve and gas stop valve.
2
Carry out the forced cooling operation.
3
After 5 to 10 minutes (after only 1 or 2 minutes in case of very
low ambient temperatures (<–10°C)), close the liquid stop valve
with a hexagonal wrench.
4
After 2-3 minutes, close the gas stop valve and stop forced
cooling operation.
2
3
1
4
5
4

Forced cooling operation

1
Press the forced operation switch SW1 to begin forced cooling.
2
Press the forced operation switch SW1 again to stop forced
cooling.
S102
S2
LED-A
SW4
SW1
1
1
Forced operation switch SW1
NOTE
Take care that while running forced cooling operation
the water temperature remains higher than 5°C (see
temperature read out of the indoor unit). You can
achieve this, for example, by activating all fans of the
fan coil units.
1
Gas stop valve
2
Close
3
Hexagonal wrench
4
Valve lid
5
Liquid stop valve
RRHQ+RRLQ006~008BAV3
Outdoor unit for air to water heat pump
4PW54244-1
