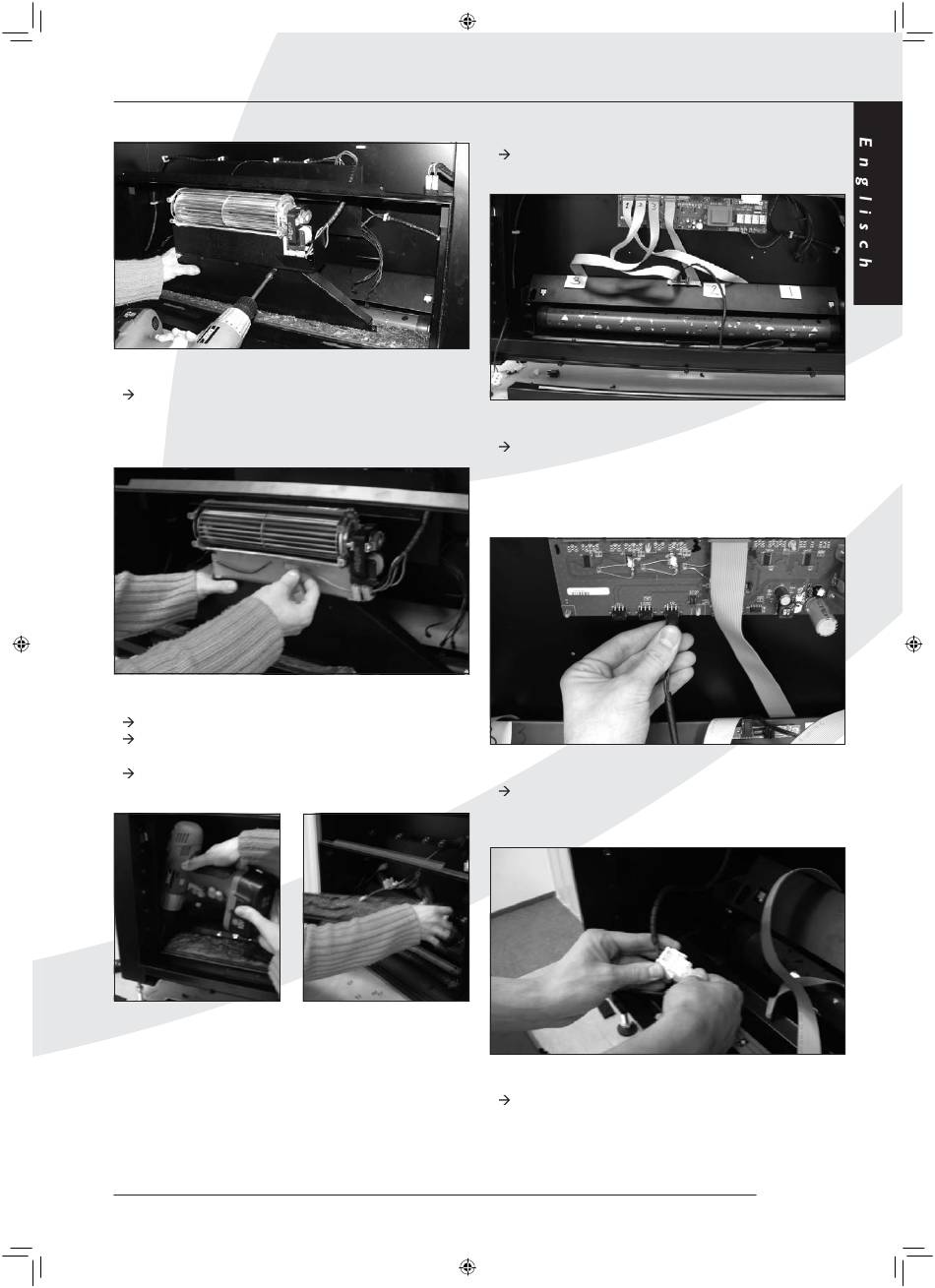

Remove the 3 fastons (red, red and blue wire) from
the heating element (Attention! This is an especially
fragile component!) and remove the 2 fastons from
the motor (blue and orange wire) (situation O);
Remove the entire heating unit (13) from the fi replace;
Remove both the effect glass sheet supports from the
fi replace (8 and 9);
Unscrew 4 parkers and remove the entire heating bed
profi le (16) from the fi replace (situation P);
463385-D84-03-NL.indd Sec1:9 463385-D84-03-NL.indd Sec1:9
Situation N
Situation O
Situation P
INSTALLATION AND SERVICE MANUAL
Disconnect the 3 left fl at cables from the main PCB
(situation Q);
Situation Q
Disconnect the IR connector from the main PCB.
Press-in the lug fully to release the connector fully and
easily (situation R);
Attention: if the connector is pulled too hard, the hard
main PCB may be damaged irreparably.
Situation R
Disconnect the 3-pole connector from the roll motor by
pressing in the lips of the cable harness section (18)
(situation S);
Situation S
Remove the 3 parkers for removing the fl ame unit (19)
(situation T);
