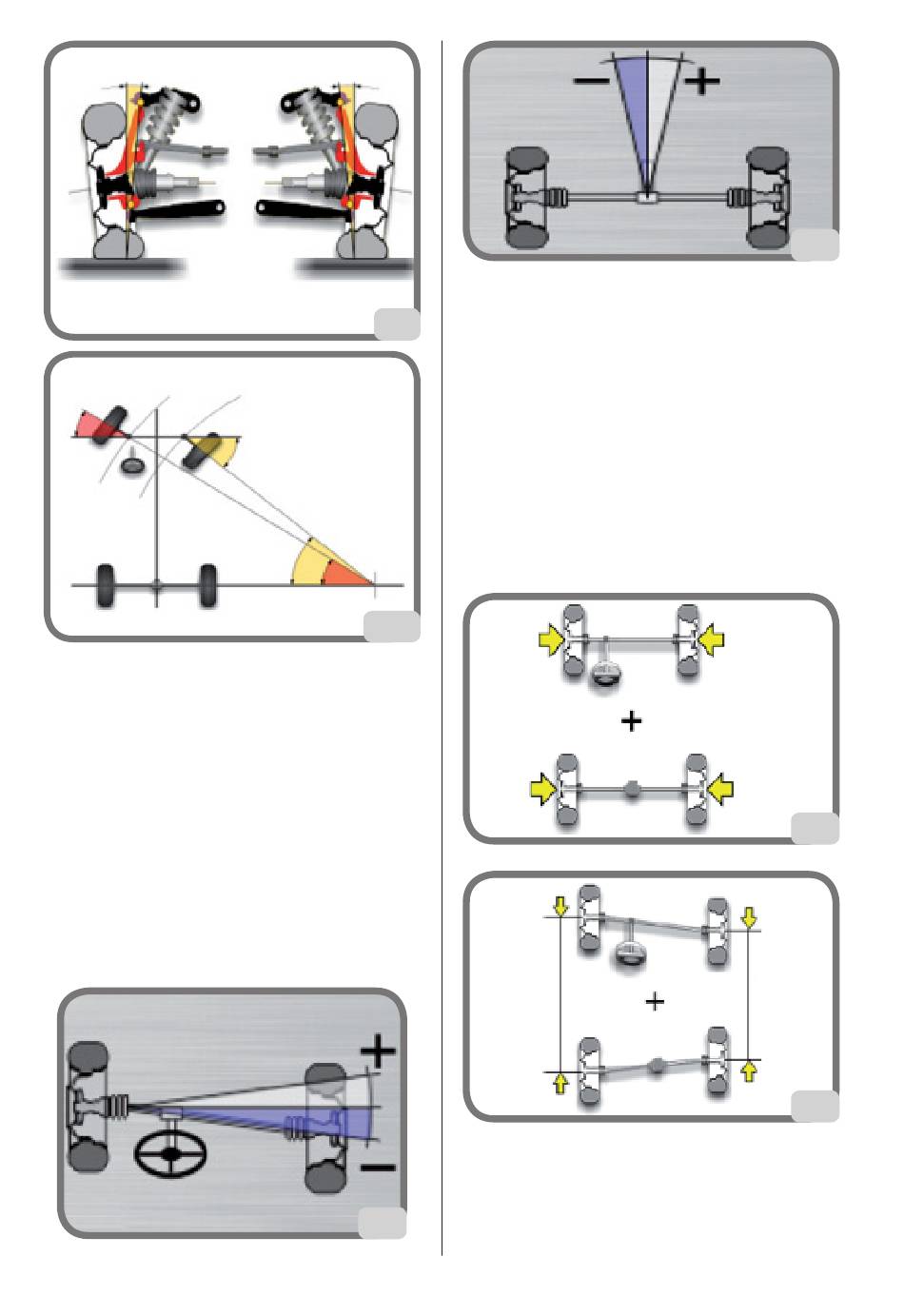

7) Misalignment of wheels on the same axle
or Set-Back.
The measurement of the difference in position
of one wheel in relation to the other, referred to
the perpendicular of the vehicle's longitudinal
axis (Fig. 16).
There are both front set-back and rear set-back; the
latter is not to be confused with the thrust angle.
The unit of measurement is the degree.
8) Thrust angle.
The angle formed between the axis of symmetry
of the vehicle and the travel direction of the rear
axle (Fig. 17).
The unit of measurement is the degree.
62
9) Track difference.
Angle formed by the line joining the ground
14
contact points of the front and rear wheels on
the left-hand side and the line joining the ground
contact points of the front and rear wheels on the
right-hand side of the vehicle (Fig. 18).
The units of measurement of track difference are
the degree or the millimetre, only if the wheel
base is known.
10) Wheel base difference.
Angle formed by the line joining the ground
contact points of the front wheels and that of
the rear wheels (Fig. 19).
15
11) Side offset.
Angle formed by the line joining the ground
contact points of the front and rear wheels on
the left-hand side, or the right-hand side, and
16
the vehicle's axis of symmetry (Fig. 20).
