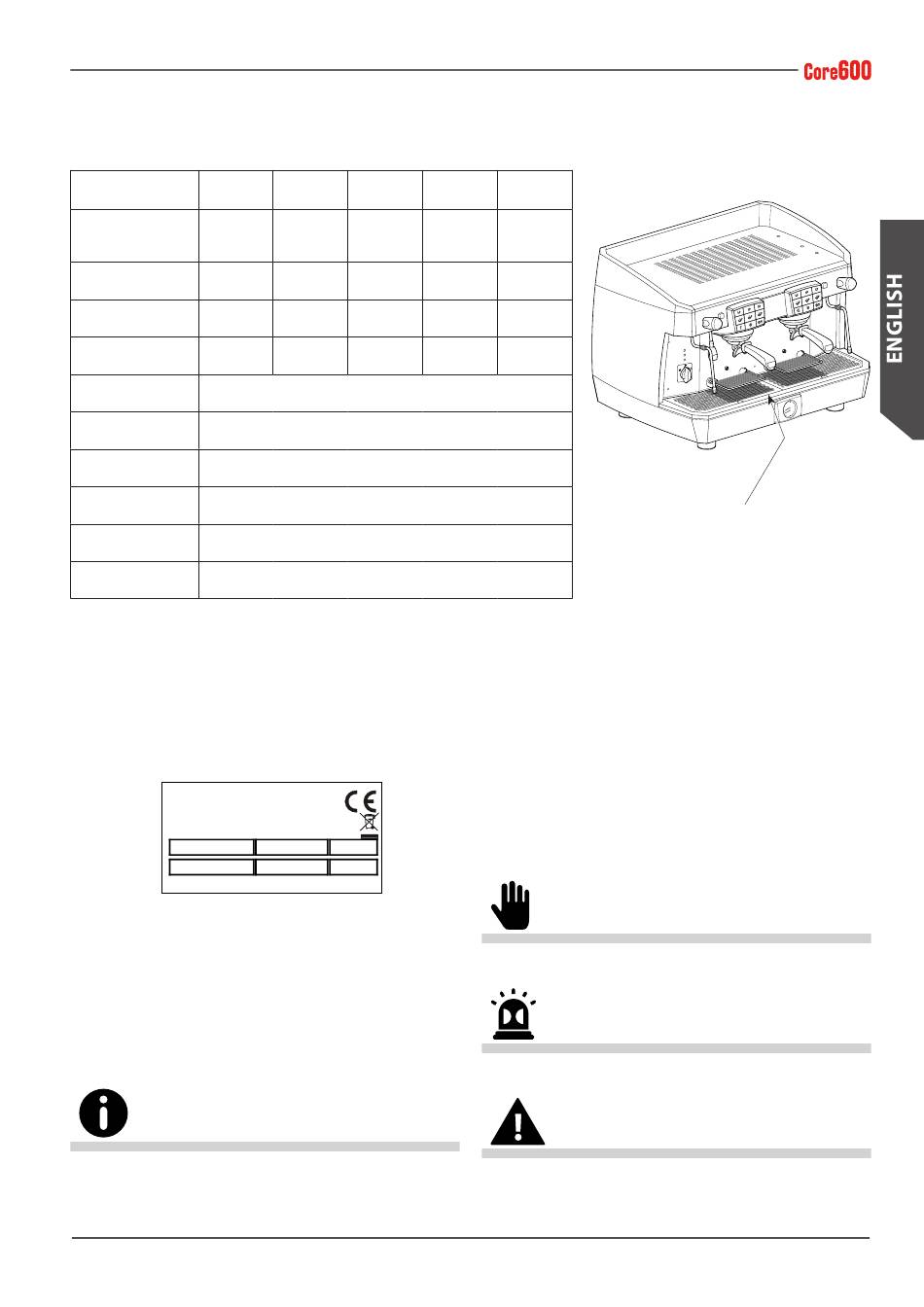

Data and marking

2.9
The machine's technical data is shown in the follow-
ing table:
TECHNICAL DATA
1GR
TABLE
120
Voltage (V) 230-400
240
Frequency (Hz) 50/60
Max. power (kW) 2.4/3.1/3.3
Boiler (l) 6/8
Safety valve
calibration (bar)
Boiler operating
pressure
Mains water pressure
Coffee dispensing
pressure
Working environment
temperature
Sound pressure level
According to Directive 2006/42/EC, the machine is
marked with the CE marking, meaning that the manu-
facturer declares, under its own responsibility, that the
machine is safe for people and property.
The CE nameplate which provides the identification
data is affixed to the base of the frame, under the drain
tray. Below is an example of the nameplate:
MARCHIO COMMERCIALE
ASTORIA MACCHINE PER CAFFÈ S.R.L.
Via C. Bardini,1 SUSEGANA (TV) - ITALY
Tel. +39.0438.6615 Fax +39.0438.60657
S/N:
V
If ever contacting the Manufacturer, always make note
of the following information:
• S/N - machine serial number;
• Mod. - machine model
• Y - year of manufacture;
The appliance data can also be found on the label
located on the machine's packaging.
It is forbidden to remove or damage the nameplate. If this occurs,
replace it as a matter of urgency, dealing exclusively through the
Manufacturer.
USER manual
COMPACT 2GR
120 120
230-400 230-400
240 240
50/60 50/60
3.1 3.1/3.9/4.2
7 10.5
0,19 MPa (1,9 bar)
0,08 - 0,14 MPa (0,8 - 1,4 bar)
0,15 - 0,6 MPa max (1,5 - 6 bar max)
0,8 - 0,9 MPa (8 - 9 bar)
5 - 35°C 95° U.R.MAX
< 70 dB
Mod. Y
Hz
W
MADE IN ITALY
3GR 4GR
230-400 230-400
240 240
50/60 50/60
5.6/6.0 6.6/7.1
17 23
3.

STORAGE

The machine is stored by the Manufacturer or the
Distributor.
4.

INSTALLATION

The installation of the machine must be performed
only by the Maintenance Technician.
During the installation the Maintenance Technician needs to
renewal operations of the water contained in the hydraulic circuits.
The machine's support base must be perfectly level and have no
irregularities.
The electric system must be equipped with a suitable 30 mA
residual-current device (RCD).
The CE label is affixed to the
base of the frame under the
drain tray.
