The system has 14 operation modes: 7 set colours and 7 sequences of different colours (see section 6.2.) The colour or sequence is
changed by a quick press of the pushbutton. The projector/s is/are placed in white if the pushbutton is pressed for longer.

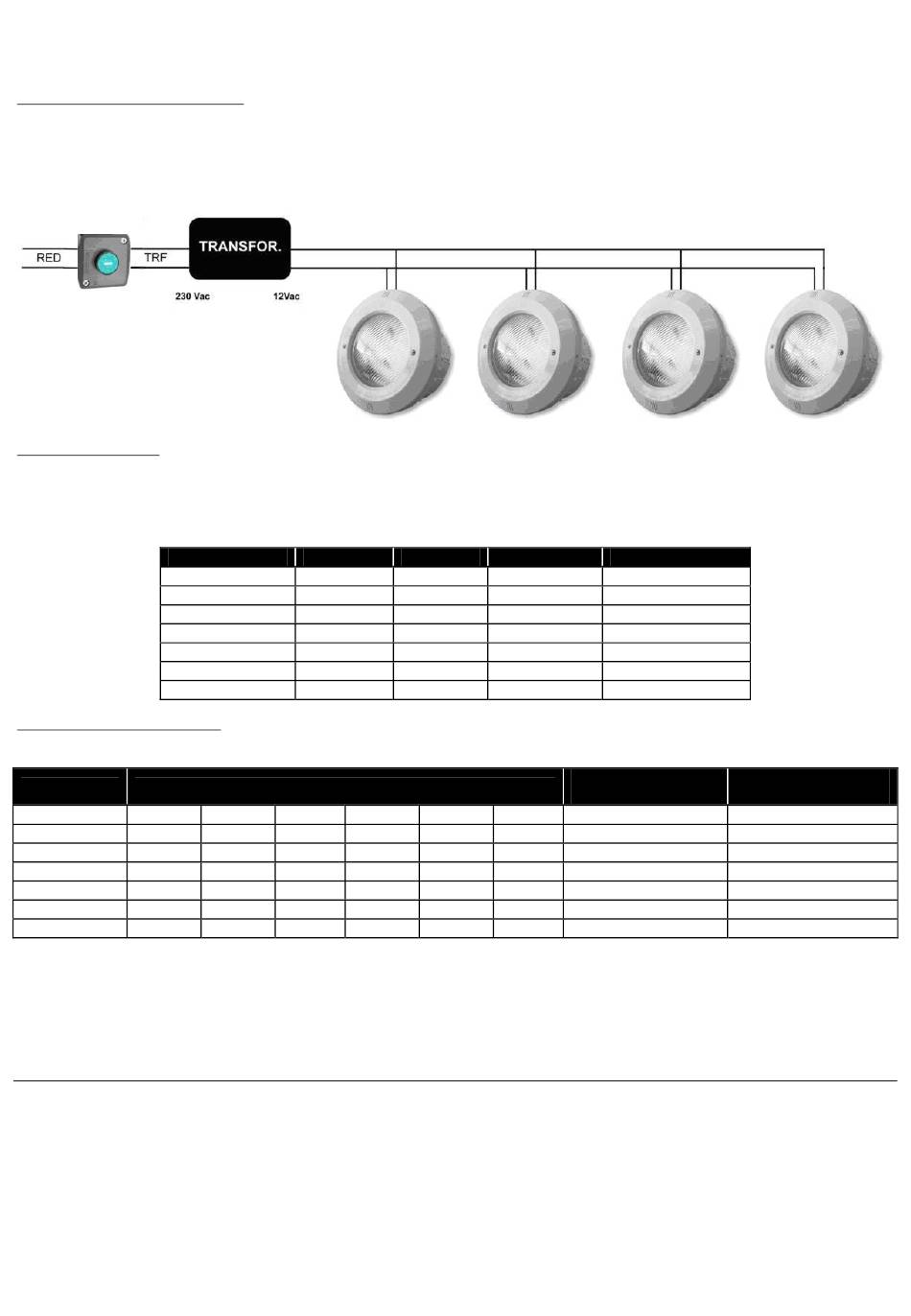

6.1. Electrical connection diagram

The system is composed of the projector/s, the transformer and the normally closed (NC) pushbutton.
The transformer must be able to supply 175VA for each led spotlight connected. For example, if you want to control 4 spotlights, you
must connect them in parallel to a transformer of at least 700VA. The pushbutton must be able to withhold the power consumed by
the number of projectors installed.

6.2. Operation modes

The Irys projector unit enables different light scenarios to be created inside the swimming pool with two operation possibilities:
Set colour: Selection of one set colour out of seven possibilities.
COLOUR Nº
Automatic sequence of colours: Selection of nine colour sequence programmes. Each programme is defined by the lighting time of
each colour and the transition time from one colour to another according to the following table:
SEQUENCE
1 Red
2 Red
3 Purple
4 Red
5 Purple
6 Yelow
7 Green
The colour or sequence is changed by pressing the pushbutton. The colour and sequence cycle is rotary. For example, if you are in
colour 5, by pressing once, you will reach colour 7, if you press once again, you will go to sequence 1. If you are in sequence 7,
press once and you will get to colour 2, which is Red.
Colour 1, corresponds to white and is reached by one long press.
7. SAFETY WARNINGS:
• The persons who are In charge of assembly shouid have the required qualificatlons for this type of work.
• Avoid making contact with the electric voltage.
• Comply with the currení standards regarding accident preventlon.
• In this regard, the IEC 364-7-702 standards must be observed. WIRING IN BUILDINGS. SPECIAL WIRING. SWIMMINGPOOLS.
• Any operation related to the maintenance or replacemení of parts shouid be performed with the floodlamp disconnected from the
electric power system.
• Do not handie with wet feet.
• The projector is designed ONLY TO BE USED SUBMERGED IN WATER and TO OPERATE ONLY WITH A SAFETY TRANSFORMER.
% RED
1 100
2 100
3 0
4 0
5 100
6 0
7 100
ORDER OF COLOURS
Blue Green Purple
Green Cyan Blue
Cyan Yelow -
Blue Green -
Cyan Yelow -
Purple Cyan -
Red Blue -
% BLUE % GREEN
100 100
0 0
100 0
0 100
100 0
100 100
0 100
Cyan Yelow
Purple Yelow
- -
- -
- -
- -
- -
4
COLOUR
White
Red
Blue
Green
Purple
Cyan
Yelow
COLOUR TIMING BLENDING TIMING
(SEC.)
2
4
4
8
18
0,5
0,5
(SEC.)
2
4
4
8
18
0,5
0,5
