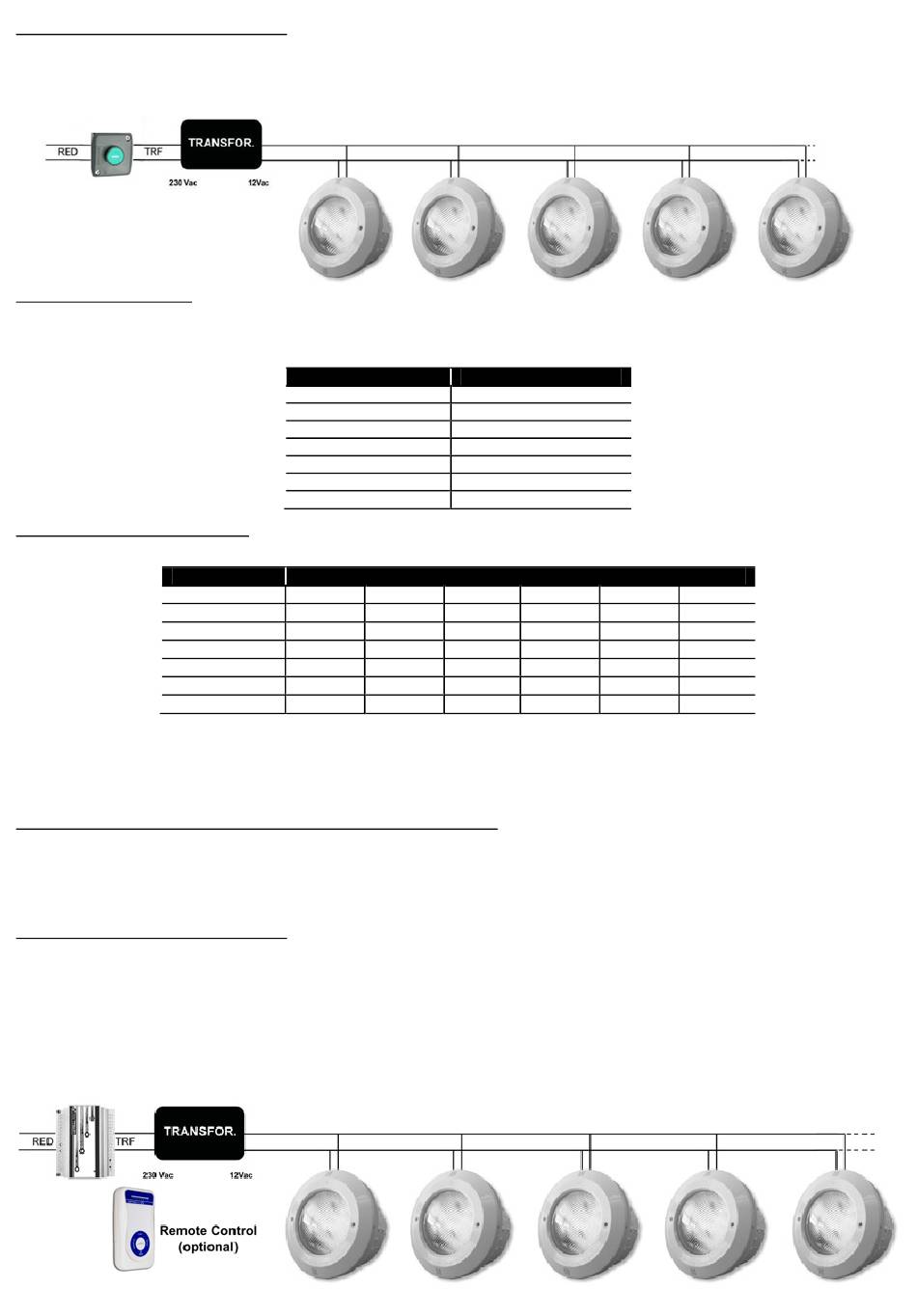

6.1.1. Electrical connection diagram

The COLORPLUS ECO system is composed of the projector/s, the transformer and the normally closed (NC) pushbutton.
The transformer must be able to supply 60VA for each led lamp connected. For example, if you want to control 5
lamps, you must connect them in parallel to a transformer of at least 300VA. The pushbutton must be able to withhold
the power consumed by the number of lamps installed.

6.1.2. Operation modes

The COLORPLUS ECO unit enables different light scenarios to be created inside the swimming pool with two operation
possibilities:
Set colour: Selection of one set colour out of seven possibilities.
Automatic sequence of colours
lighting time of each colour and the transition time from one colour to another according to the following table:
SEQUENCE
The colour or sequence is changed by pressing the pushbutton. The colour and sequence cycle is rotary. For example,
if you are in colour 6, by pressing once, you will reach colour 7. If you press once again, you will go to sequence 1. If
you are in sequence 7, press once and you will get to colour 2, which is Red.
Colour 1, corresponds to white and is reached by one long press.
6.2. COLORPLUS TOP: Modulator control and/or Remote control
The system has 20 operation modes: 12 set colours and 8 sequences of different colours (see section 6.2.2.).
The Modulator controls switching the lamps on and off, changes of colour and sequences and switching off timing.
If you have a remote control, apart from the modulator operations, you can also switch colours of a sequence on and off
and select the switching off time.
6.2.1. Electrical connection diagram
For correct installation, you will need the Modulator, the transformer and finally the leds lamp. As an option, this
system can be controlled by Remote Control.
The Modulator is connected to the 230 Vac mains by means of two terminals indicated MAINS, and to the primary
input of the transformer (230 Vac) by means of the terminals indicated TRF (See attached diagram).
Each Modulator can control until a maximum of five spotlights.
The transformer must have the capacity to supply 60 VA to each led lamp connected. For example, if you want to
control 5 lamps, they should be connected in parallel to a transformer of at least 300VA.
Each Modulator can control up to a maximum of 15 LED spotlights.
COLOUR Nº
1
2
3
4
5
6
7
: Selection of seven colour sequence programmes. Each programme is defined by the
1 Red Blue
2 Red Green
3 Purple Cyan
4 Red Blue
5 Purple Cyan
6 Yellow Purple
7 Green Red
COLOUR
White
Red
Blue
Green
Purple
Cyan
Yellow
ORDER OF COLOURS
Green Purple
Cyan Blue Purple
Yellow -
Green -
Yellow -
Cyan -
Blue -
3
Cyan Yellow
Yellow
- -
- -
- -
- -
- -
