DGPI(L)−...−AI F
When high demands are placed on the positioning behaviour:
2. Increase the stroke reduction.
You will achieve the best possible posi
tioning behaviour with a stroke reduction
of 10 % per end position.
Protecting the end positions in the event of operating or system faults:
3. Close the adjusting screws of the end positioning cushioning completely if you
wish to use this as an air cushion.

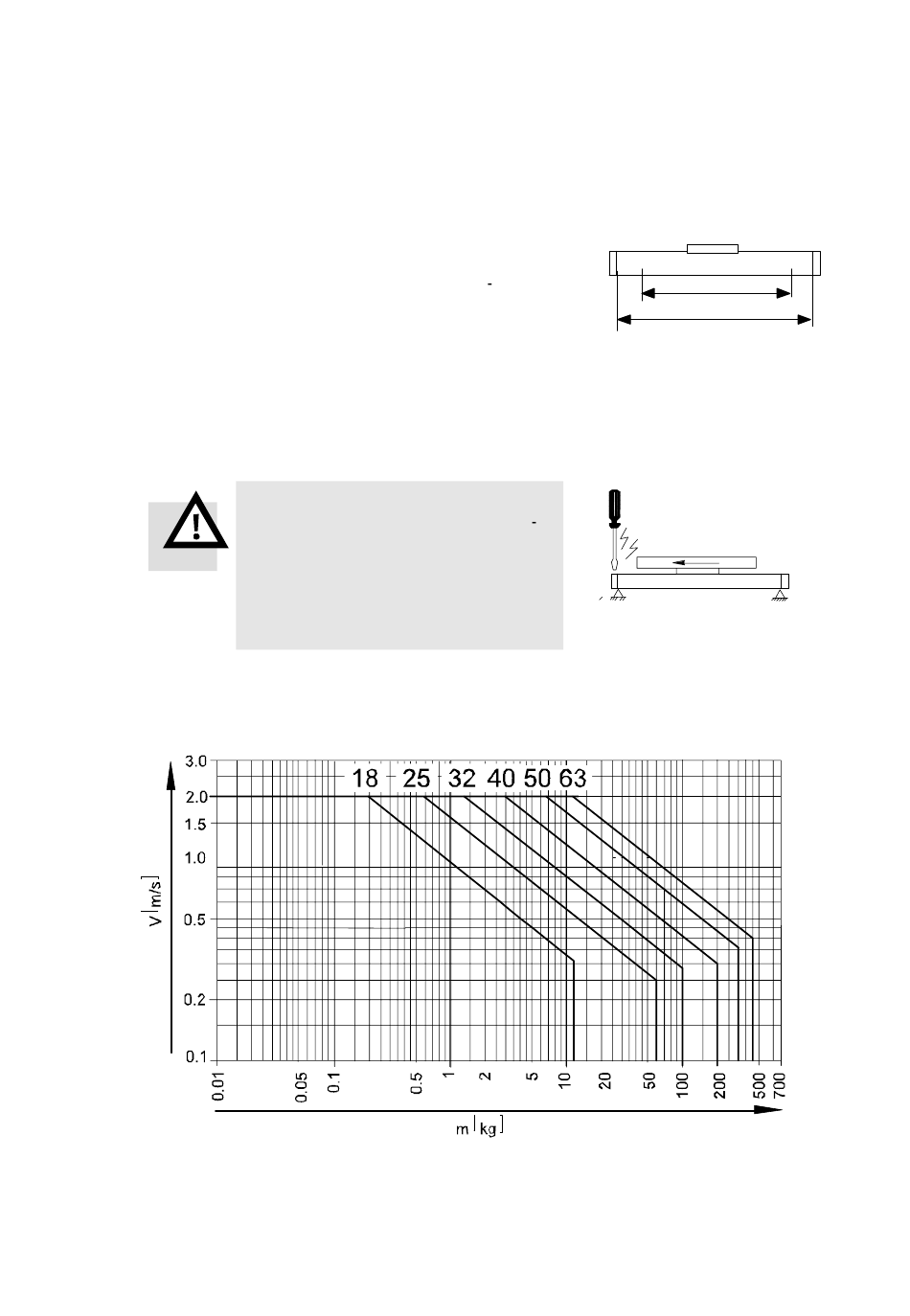

The diagram below shows the maximum cushioning ability of the end position
cushioning as a factor of the slide speed and the work load:
Fig. 22
30
Warning
Work loads projecting in the direc
tion of the slide movment
S Note that the adjusting screws
must only be turned when the
DGPI(L)−... is at a stand.
80 %
100 %
Fig. 20
Fig. 21
Festo DGPI(L)−...−AIF 0409a English
