DGPI(L)−...−AI F
Fitting the electric components
Wire the earth connection with earth potential.
S
Cable cross sectional area at least 1.5 mm
Cable length max. 10 m.
S Insert the screw with cutting thread (included in delivery) into the hole for
the earth connection 9 (see Fig. 1).
This will guarantee electrical contact despite the anodized coating.
Wire the measuring system connection together with the control system.
S
Only the original cable may be used for this purpose (Pin assignment see
Fig. 16).

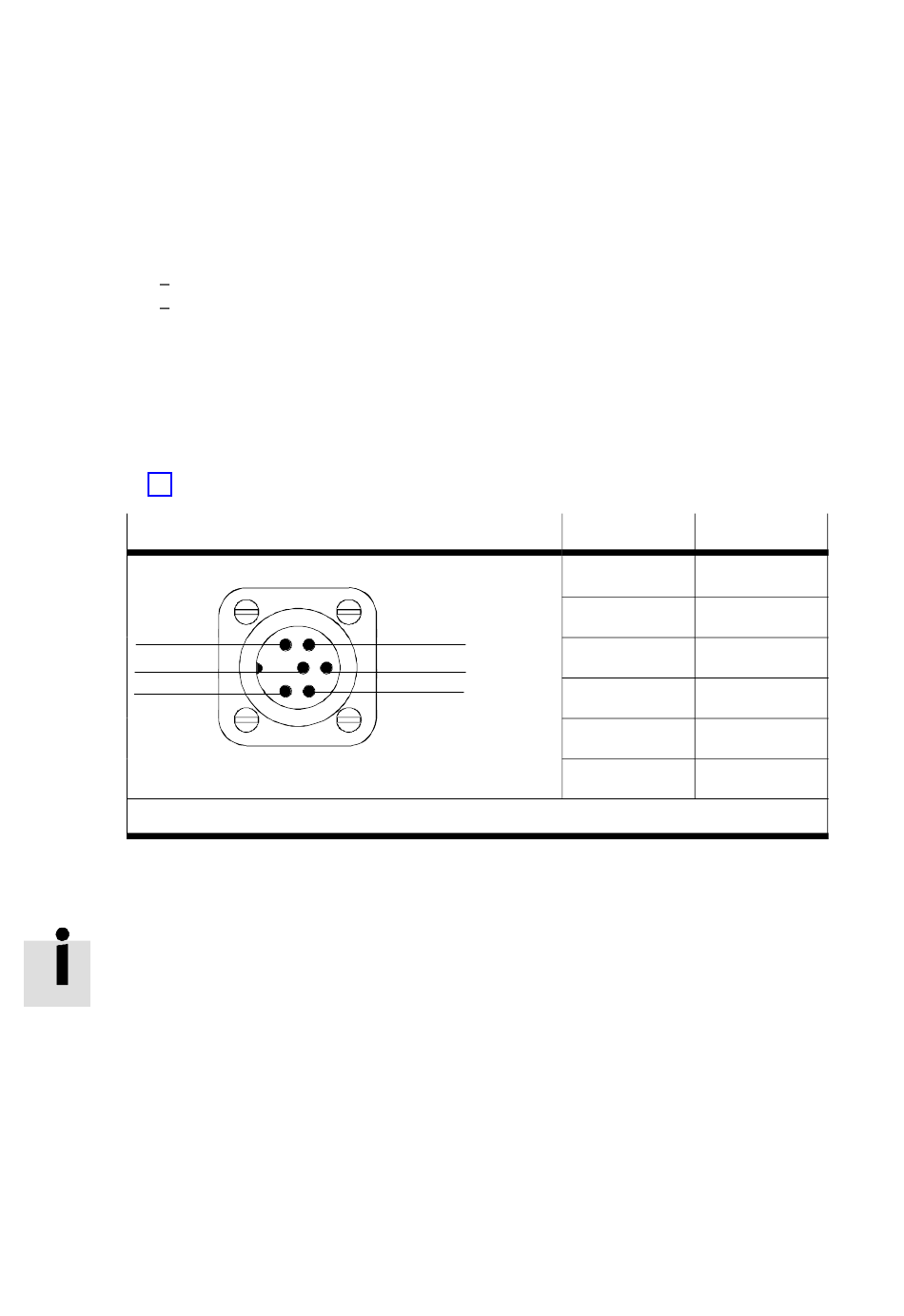

Measuring system connection
5 5
6 6
1
n.c. = not connected
Fig. 16
Note that the permanent magnet fitted in the piston is only suitable for operating
the integrated measuring system.
Proximity switches with magnetic actuation cannot be used.
28
2
.
PIN
1
2
4 4
3
3 3
4
2
5
6
Festo DGPI(L)−...−AIF 0409a English
Assignment
CAN−Low
CAN−High
n.c.
n.c.
+24 V DC
0 V
