3 INSTALLATION
This paragraph deals with installation of the equipment.
Installation and initial commissioning should be carried out by an electrician or professional installer in
accordance with the standards currently in force (for small craft the applicable international standard is
ISO13297).
The installer should familiarize himself with this operating manual and inform users of the instructions for
use and the safety warnings set out in the manual.

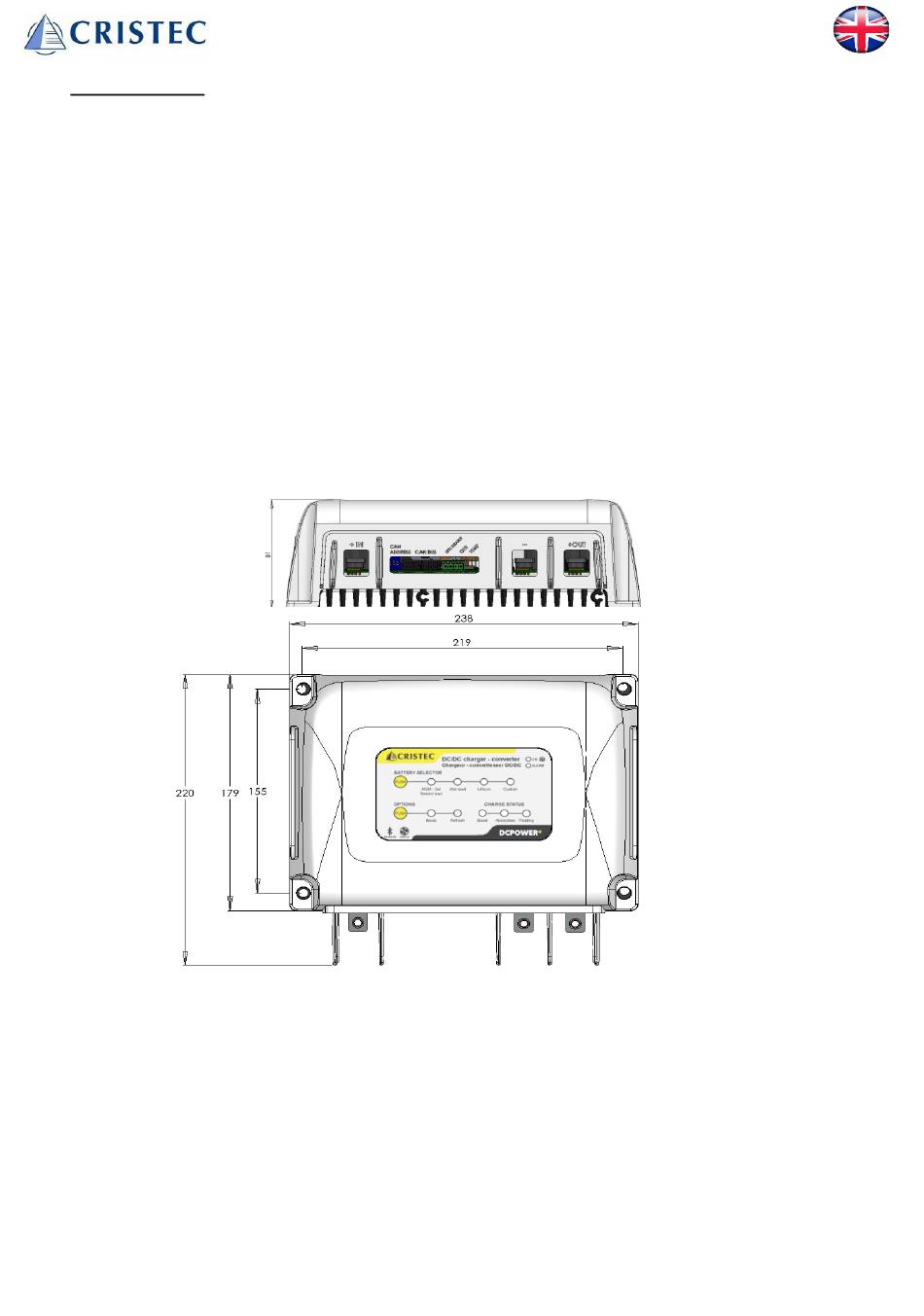

Charger / converter overall dimensions
3.1
Place the charger / converter vertically, connection downwards. Failure to respect this position may cause a
decrease in available power and a loss of IP level.
A clear area of 150mm is recommended all around the charger / converter for proper ventilation and opening
of the charger / converter.
Never put anything on the charger / converter.
Fixing
3.2
Fixing of the charger / converter is made by 4 x M5 round head screws (screw head diameter less than 10
mm).
Wiring
3.3
When connecting or disconnecting a cable, the charger / converter's power supply must be turned off and the
batteries electrically isolated from the charger / converter.
The references for additional cables required for the appliance to operate efficiently are provided in the
following paragraphs: failure to comply with these provisions renders the warranty null and void.
6
