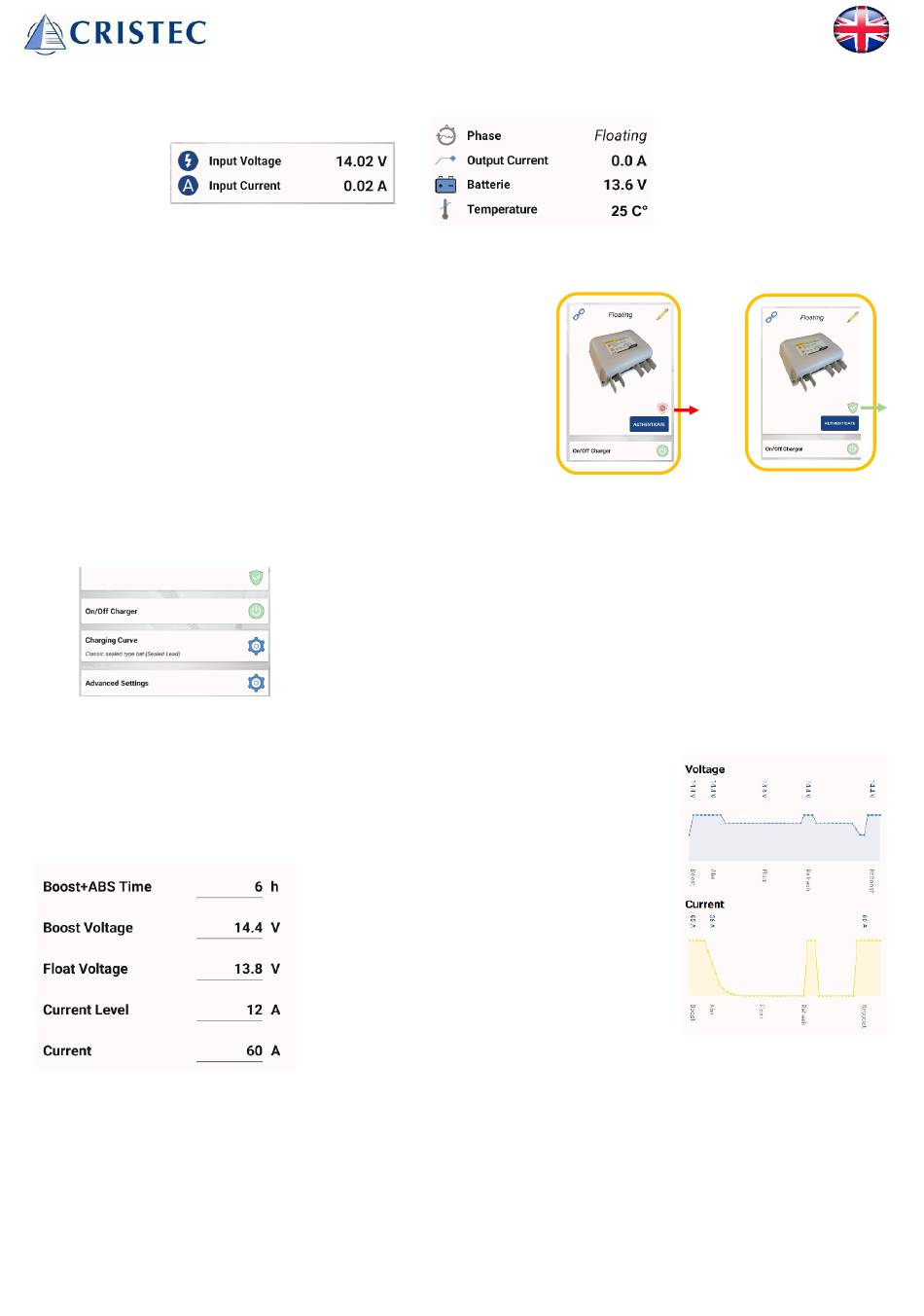

The lower section displays charge phase information, charger voltage and current, temperature (with optional
sensor) and DC input voltage and current.
3.4.3.3 Pin code
When you click authentication, you can enter the charger's
configuration menus. The application asks you to enter a pin
code. Enter 6 zeros by default, then press ok
"000000" + OK
You can change the default pin code in the application (see
3.4.4.1).
If charger control is enabled, the shield on the control page is
coloured in green. Otherwise, it appears in red.
3.4.3.4 charger control
3.4.3.5 Charging curve
You can select the charging curve corresponding to your batteries by scrolling
through the battery types. Once you've selected the battery type, two graphs show
how the charger behaves in terms of voltage and current. A table at the bottom of
the page summarizes these data:
These data cannot be modified*; they are provided for information purposes only.
(* In order to modify this data, you must enter customization mode, see 3.4.3.7)
Charger control activated
Turn the charger ON or OFF
Charging curves (see 3.4.3.5)
Advanced settings (see 3.4.4)
Cumulative boost and absorption duration
Boost voltage
Float voltage
Current threshold to switch from absorption
to Floating
Nominal charger output current
NOT OK
OK
