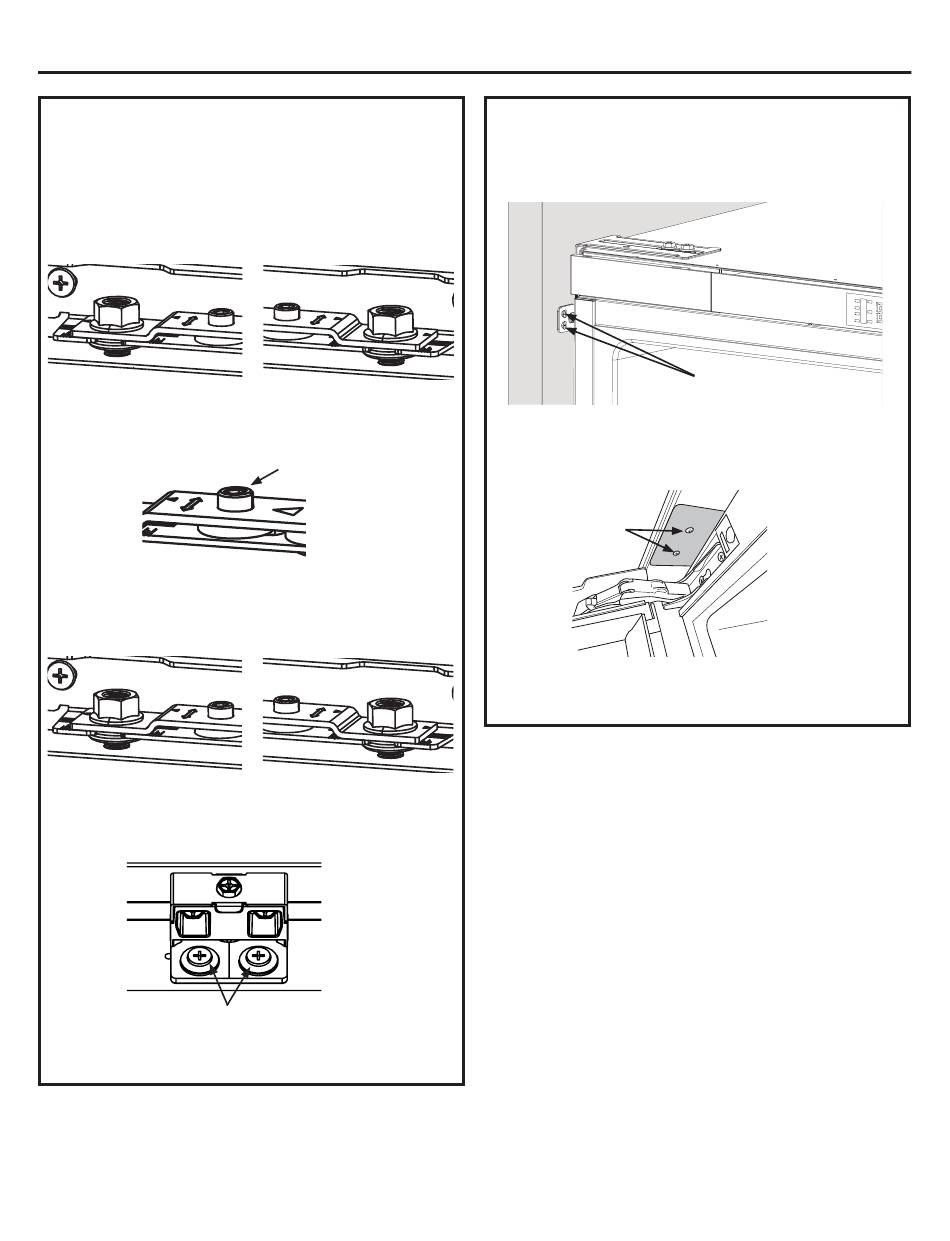

ADJUST AND ALIGN THE DOOR
PANEL
(CONT.)
3.2 Vertical adjustment
At the top of the door panel, loosen 2K nuts with 13mm
wrench. Turn the Cam J (two locations) to adjust the
door up and down with 4mm Allen wrench.
Nut K, Cam J
3.3. Horizontal adjustment
Top of panel: Use an Allen wrench to turn Cam M
adjusting panel left/right. One location
3.4 Depth Adjustment
To adjust the upper part of the door: Use Allen wrench to
turn Cam L at two locations to move door panel in/out.
Cam L
To adjust the lower part of the door, tighten the 4 door
panel screws in 2 places, adjust fasteners N using a
phillips screw driver to move the door panel in/out.
Tighten screws
Tighten all the screws and nuts at the bottom and at the
top of the door.
32
Installation Instructions
Nut K, Cam J
M
Cam L
N
COMPLETE INSTALLATION
1. Secure the brackets to the adjacent cabinetry with
the fasteners provided. Fastener F on the Fastener
Reference Chart.
Or secure the bracket to the countertop with fasteners
provided, fastener F on the Fastener Reference Chart
Screws
2. Complete the installation of top door trim. See details
in Reversing Door section step 10.
Secure the left and right brackets
to the adjacent cabinetry.
49-1000777 Rev. 2
