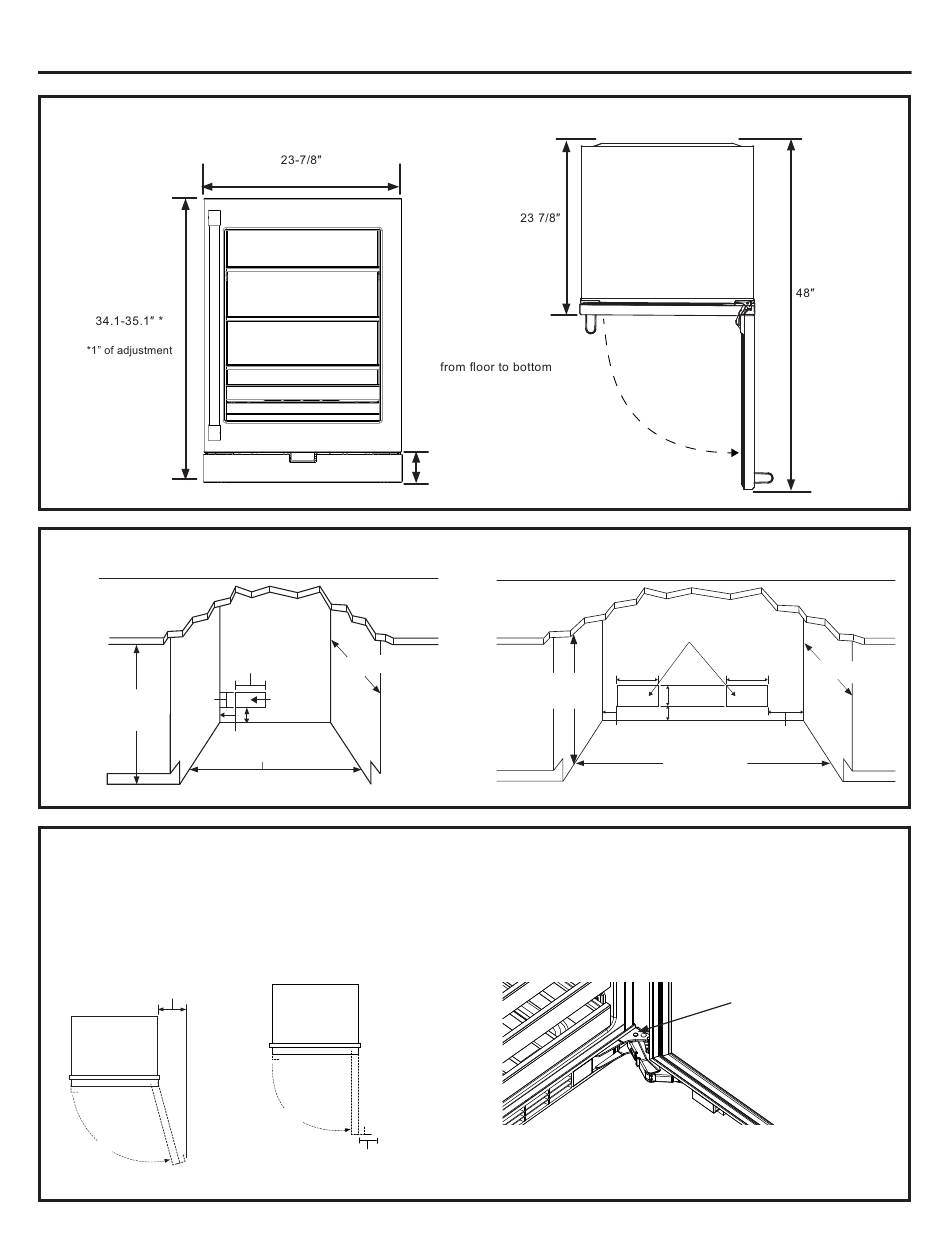

BEVERAGE CENTER DIMENSIONS
(866-891 mm)
with leveling legs
and rollers
THE INSTALLATION SPACE
5-3/16"
(131mm)
34-1/2" - 35"
(876.3 - 889mm)
PRODUCT CLEARANCES
When installed in a corner:
• Allow 4" (100 mm) min. clearance on the hinge side for
the 90° door swing and to allow racks to slide out.
• Allow 13" (330 mm) minimum clearance on the hinge
side for a full 115° door swing.
13" Minimum
to Wall
115°
20
Installation Instructions
(606 mm)
10"
24" (610mm)
(254mm)
Outlet
location
2" (52mm)
5/8" (41mm)
24" (610 mm)
90° Door Swing
90°
4" Minimum
to Wall
(606 mm)
Note:
Toe Kick height range
is 3 1/2" to 4 1/2"
of door. Adjust height
with front leveling
legs and rear leveling
rollers.
Toe Kick Height 4"
from floor to bottom
of door.
SIDE BY SIDE PRODUCT INSTALLATION
(254mm)
34 1/2"-35"
(876.3 - 889mm)
5/8" (41mm)
To prevent door from opening more than 90 degrees,
insert hinge pin A from accessory bag into the bottom
hinge pin hole. Make sure the pin sits all the way down
and the door can be closed smoothly.
(1216 mm)
Outlet
location
10" 10"
(254mm)
5-3/16"
(131mm)
2" (52mm)
12-3/8" (315mm)
48" (1220mm)
Hinge pin hole
24" (610mm)
