BUILD CUSTOM DOOR PANEL
are included with the refrigerator to provide mounting to
the appliance door.
NOTE: We recommend that decorative panels have inside
corners and edges rounded or beveled by cabinet maker
to avoid sharp edges on the panels. Edges to be treated
should include the top, bottom and hinge side edges.
NOTE: The back side of the panel is recommended to
be finished. Portions of the back side of the panel will be
visible when the door is open.
Steps

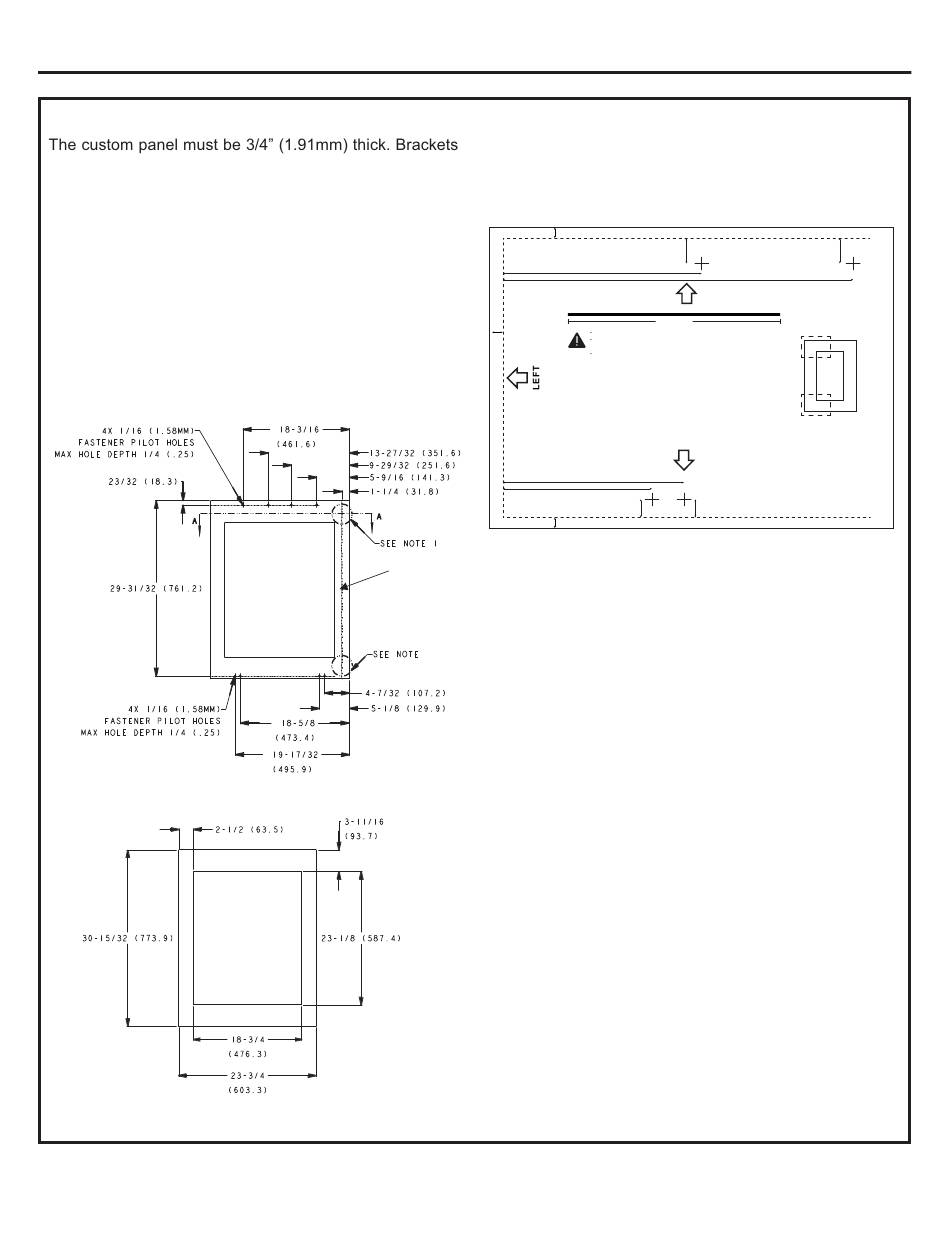

1. Verify overall panel dimension match below panel
drawing.
Back view of Custom Door Panel
Front view of Custom Door Panel
49-1000777 Rev. 2
Installation Instructions
Handle
mounting
centerline
Handle side
2. A template for pilot hole is provided with the unit in the
accessory bag to assist in drilling the pilot holes in the
correct location. Follow the instruction on the template
to complete pilots.
.3"
23/32"
5-9/16"
9-29/32"
6" (15.24 CM)
PRINT TEMPLATE ON 8.5" X 11" (21.59 CM X 27.94 CM) PAPER ONLY.
PRINT ACTUAL SIZE (100% SCALE). DO NOT SCALE TO FIT.
.3"
NO MARGINS OR HEADERS/FOOTERS.
VERIFY LINE MEASURES 6" (15.24 CM) LONG BEFORE DRILLING PILOT HOLES.
*PILOT HOLES TO BE 7/64" AND NOT EXCEED 1/2" DEEP.
BOTTOM
5-1/8"
4-7/32"
.3"
3. Install the thread bracket, handle mounting fastener,
spacer by following the installation manual coming with
ZKPN kit
23/32"
T1
T1
T1
