BUILD CUSTOM TOE KICK

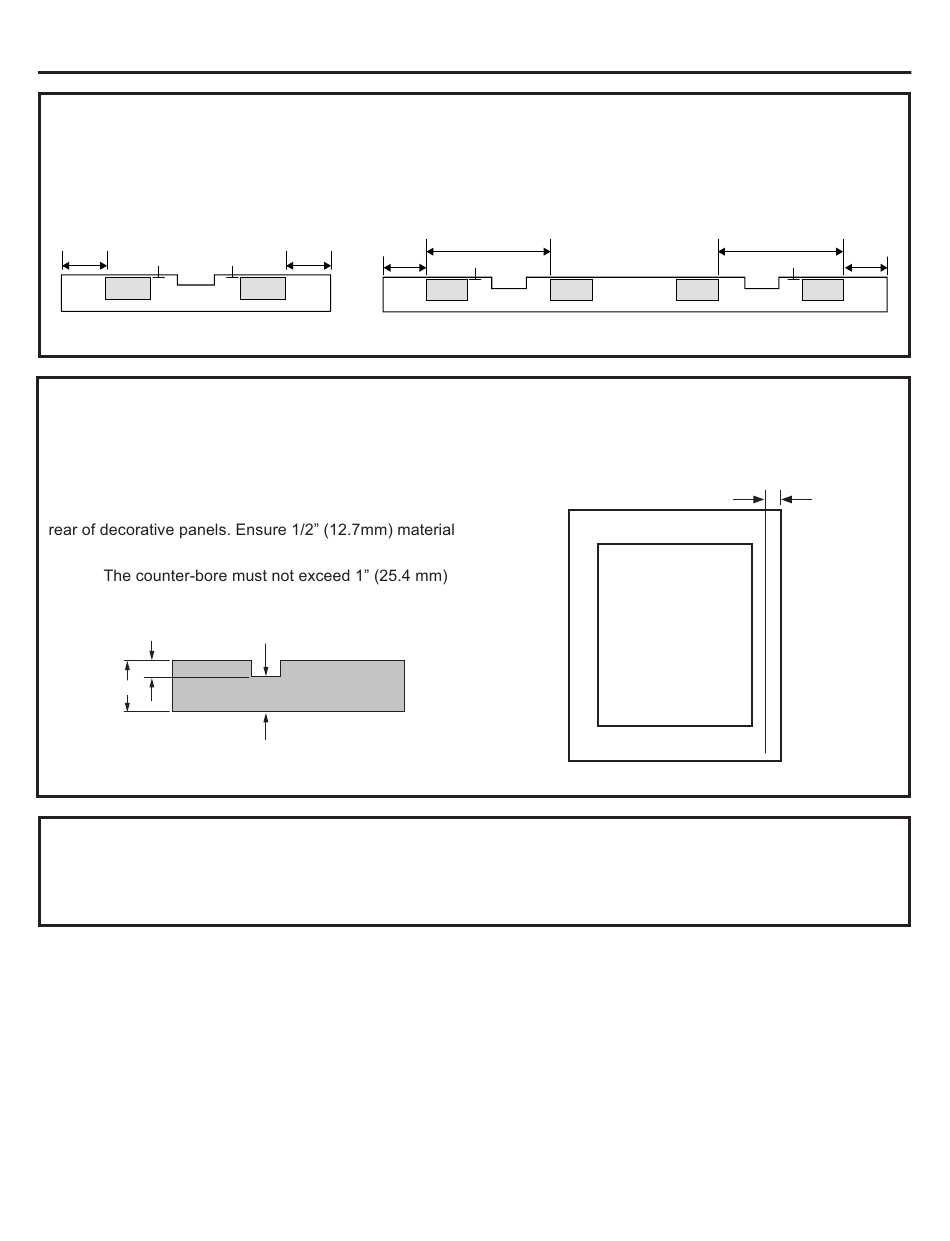

Custom toe kick magnet install
Peel the adhesive backing from magnetic pads which come with the unit accessory bag. Place them on the back of
the toe kicks as shown below:
Picture for both 24" and 48" toe kick see following page.
3-15/16"
1/4"
(100mm)
(5mm) (5mm)
24" toe kick
HANDLE DESIGN GUIDE (CUSTOM PANEL MODELS ONLY)
Custom Panels require a custom handle from a cabinet
maker or the use of the ZKPN - Handle Mounting
Kit (sold separately) if you are using the Monogram
Statement or Minimalist handles (sold separately).
For custom handle installation, counter-bore holes in
thickness remains for handle support.
NOTE:
in diameter.
1/4"
(6.4mm)
3/4"
(19.1mm)
INSTALL HANDLE
To install handle on a Stainless Door Panel. Place the
handle ends over the handle mounting fasteners and
tighten the set screws using the Allen wrench provided.
26
Installation Instructions
(CONT.)
3-15/16"
3-15/16"
1/4"
(104.1mm)
(100mm)
1/2"
(12.7mm)
11-7/8" (301.6mm)
1/4" (5mm)
48" toe kick
Minimum distance from panel side edge to handle center
should be 1-1/4'' (31.8 mm) as shown.
Hinge Side
To Install handle on a Custom Door Panel, Review the
handle assembly instructions included in the ZKPN
Handle Mounting Fastener Kit for Custom Panels.
11-7/8" (301.6mm)
3-15/16"
(104.1mm)
1/4" (5mm)
1-1/4'' (31.8mm)
Handle Side
