ADJUST AND ALIGN THE DOOR PANEL
Tools needed
Allen wrench, adjustable wrench, phillips screwdriver, hex
head driver.

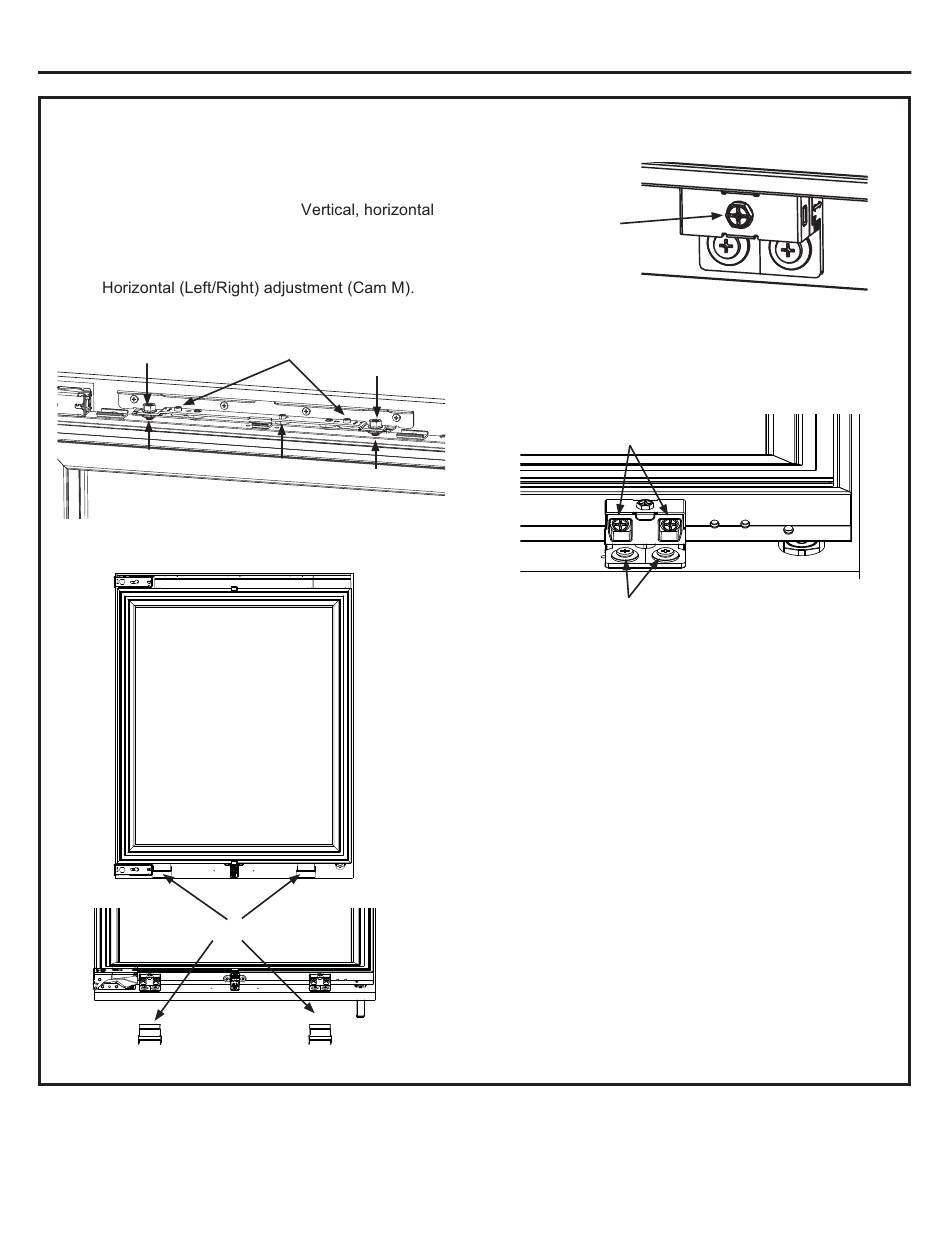

1. Upper adjustable mechanism:
and depth alignment.
1.1 Vertical (up/down) adjustment (Cam J, Nut K).
1.2 Depth (Front/Back) adjustment (Cam L).
1.3
2. Lower Adjustment Brackets: Depth alignment.
Nut K, Cam J
1.1 J
2.1 Remove the bracket cover.
Bracket cover
49-1000777 Rev. 2
Installation Instructions
1.2 L
Nut K, Cam J
1.3 M
1.1 J
2.2 Depth (In/Out) adjustment (Fastener N)
N
Depth (Front/Back)
adjustment
(Fastener N - 2 places).
3. Make Door Panel Adjustments
3.1 Prepare door panel adjustment: Loosen 8 screws
at the bottom of the door in 2 locations.
Loosen screws
Loosen screws
