JOIN DUAL INSTALL

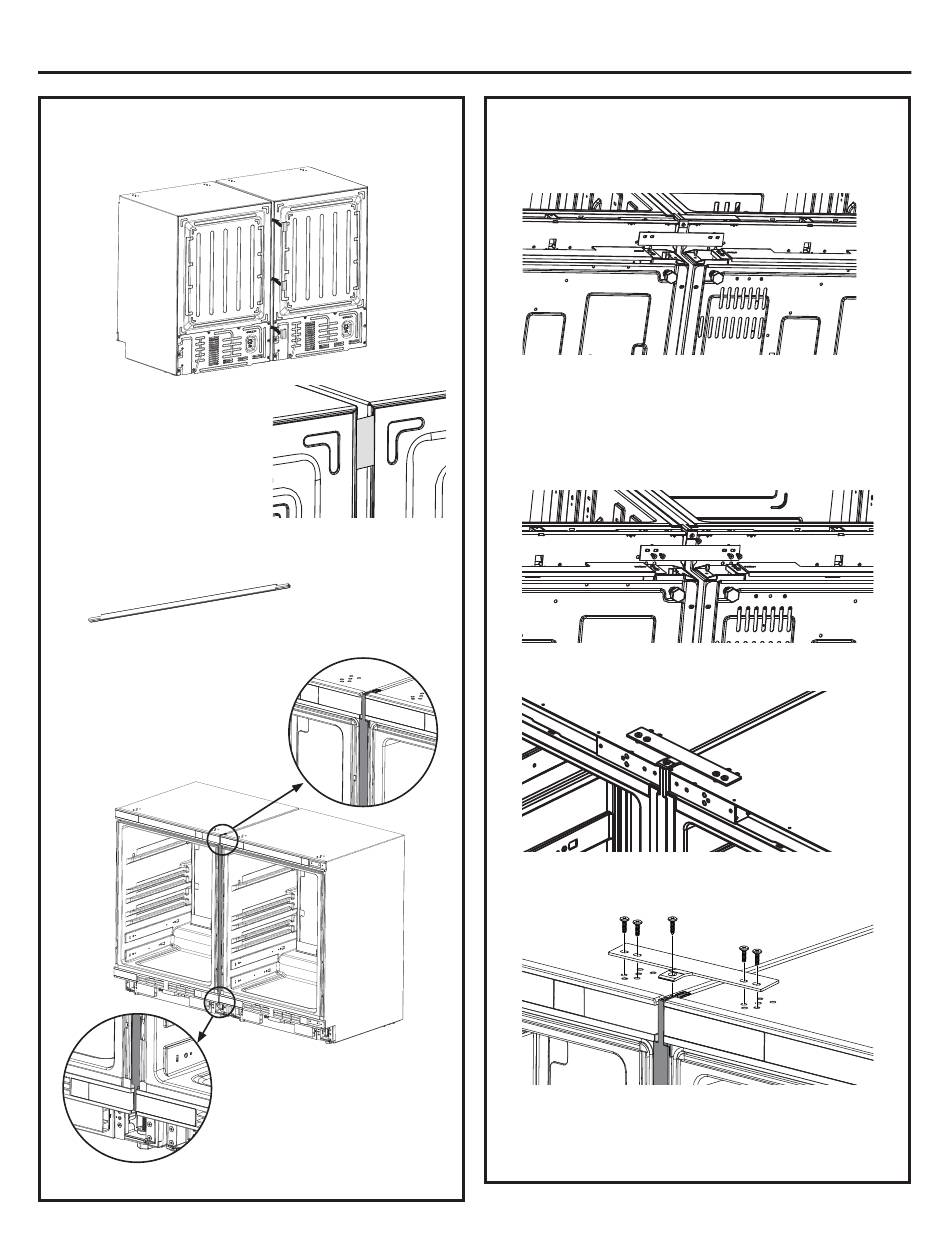

4. Install 3 back connectors.
5. Install front trim piece (front connector).
49-1000777 Rev. 2
Installation Instructions
(cont.)
Front Trim Piece (Front Connector)
JOIN DUAL UNITS
6. Install Bottom Connector.
A. Place the bottom connector as shown.
B. Install one Fastener C screw and four Fastener E
screws.
Note: Fastener C screw attaches the bottom connector
to the front trim (front connector) piece. The Fastener
E screws attach the bottom connector to the bottom of
both boxes.
7. Install Top Connector.
A. Place the top connector as shown.
B. Install one Fastener C screw and four Fastener E
screws.
Note: Fastener C screw attaches the top connector
to the front trim (front connector) piece. The Fastener
E screws attach the top connector to the top of both
boxes.
(cont.)
29
