BUILD CUSTOM DOOR PANEL
4. Install Custom Wood Door Panel
Gasket Kit (Optional)
• Unit includes 4 gaskets, 2 long and 2 short.
• These gaskets fill the gap between the custom wood
door panel and the glass.
• Install the two long gaskets first. Leave a small gap in
the corners for the short gaskets. (Figure 1)
• Remove the paper strip from the adhesive and discard.
• Install the long gasket hard edge approximately 1/16
(1 mm) from the customer facing window edge.
(Figure 2 and 2B)
• The hard gasket edge holds the gasket flat against the
door with adhesive.
• The soft gasket edge closes the gap between the door
and the glass.

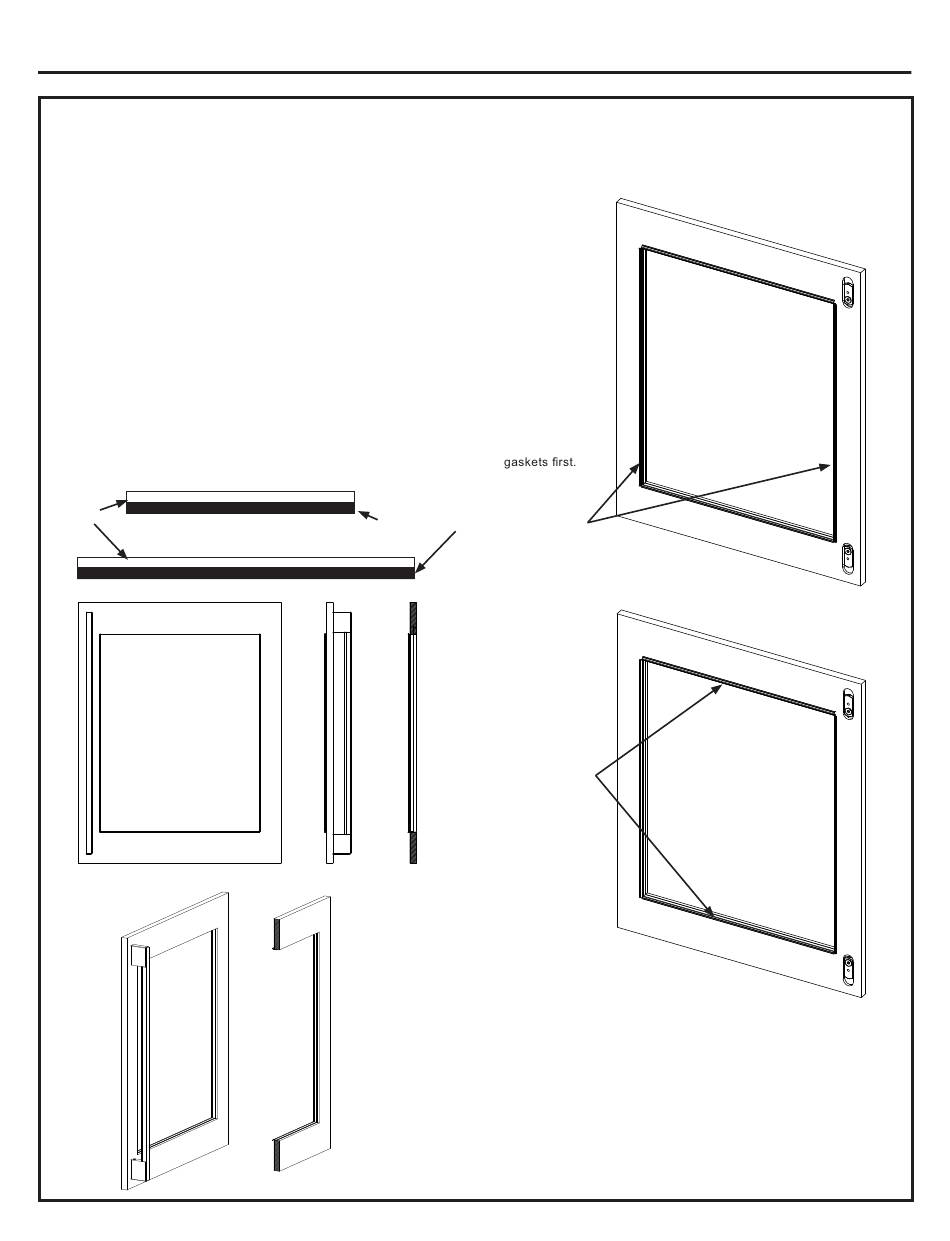

Figure 1
Soft edge
24
Installation Instructions
(CONT.)
Hard edge
(adhesive backed)
5. Install handles according to instructions for handle type
and kits listed.
Figure 2
Install two long
Note: Leave
small gap in
corners for
short gaskets.
Figure 2B
Install two short
gaskets to
complete the kit
assembly.
