90°

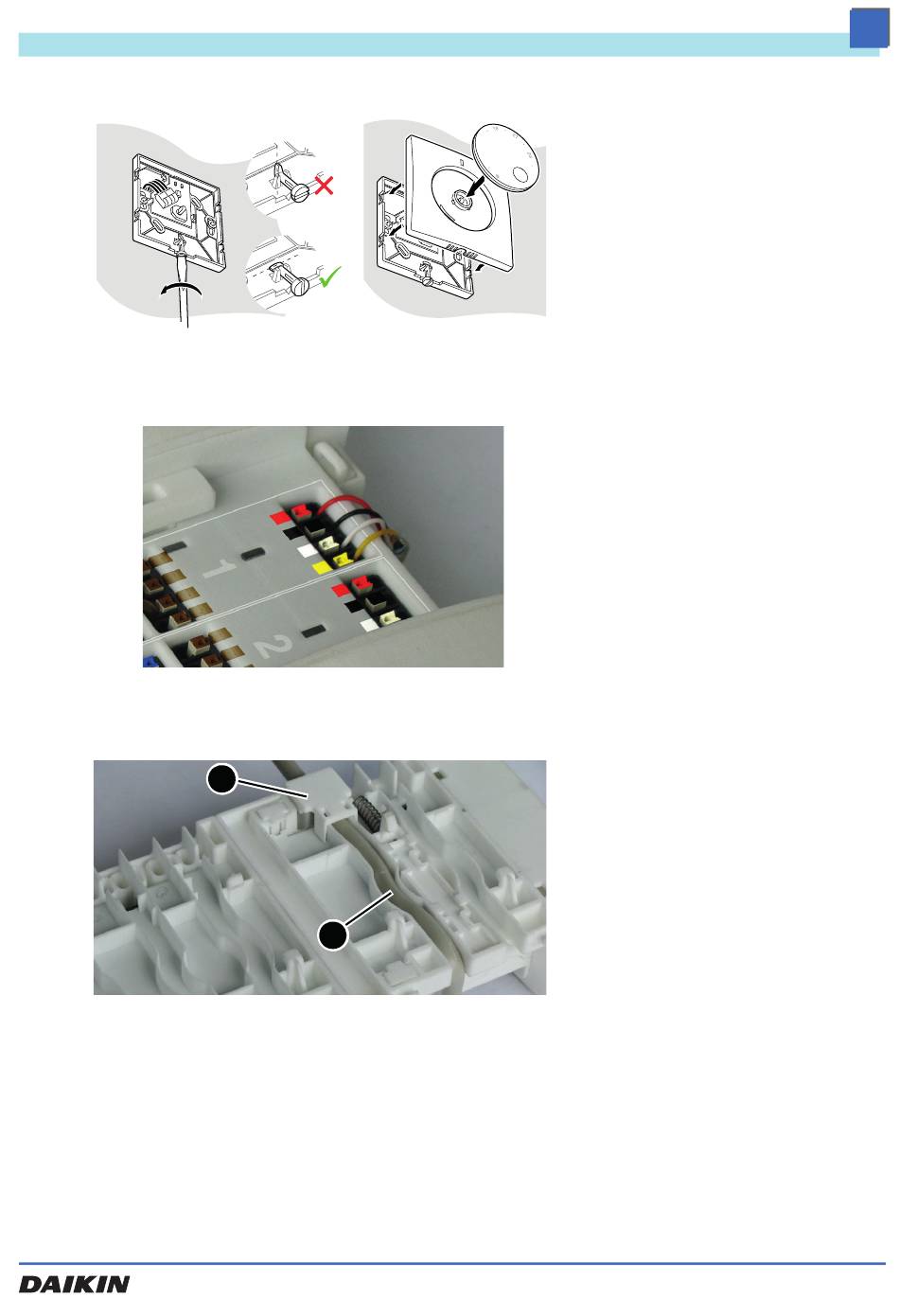

Fig. 5-13: Assembly upper part of housing
Fig. 5-14: Connecting the room temperature controller wired
A
Fig. 5-15: Routing cables
RoCon UFH
Mounting
B
6. Turn the cam screw at the
room controller counter-
clockwise by approximately
90° using a screwdriver.
7. Refit the upper part of the
housing and the rotary knob.
8. Connect the wires of the
cable of the room tempera-
ture controller to the termi-
nals of the corresponding
heating circuit at the product
(observe colour coding).
9. Route the cable through the
cable guide (B) at the rear of
the product.
10. Fix the cable of the room
temperature controller and
the cable of the thermostatic
actuator with the cable clamp
(A).
11. Repeat this procedure for all
other cables.
EN
32
