4.2 Overview
Base module RoCon UFH-BM

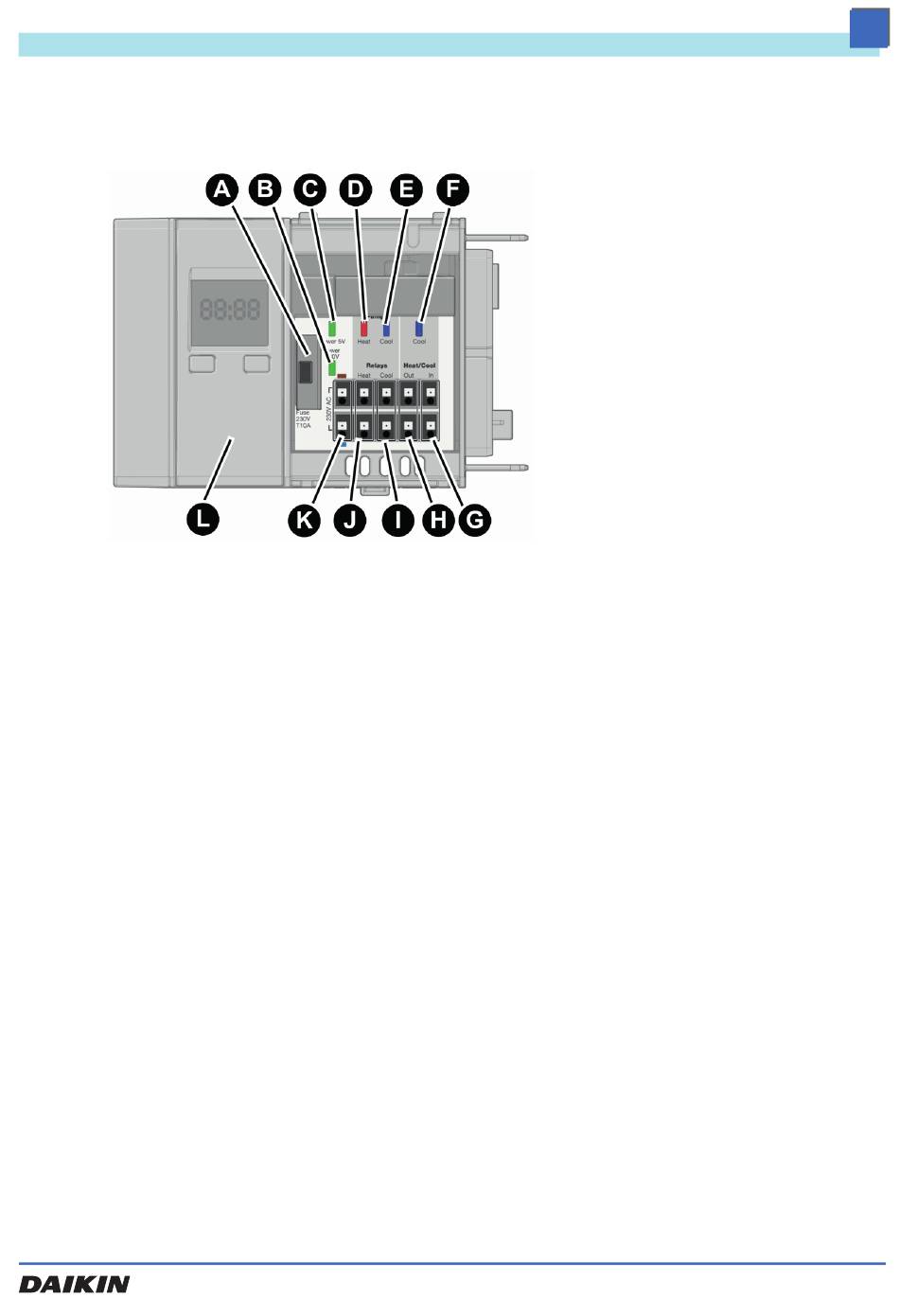

Fig. 4-1: Front view base module
Product description
RoCon UFH
A. Fuse compartment
B. Operation mains voltage
(LED green)
C. Operation 5 V (LED green)
D. Pump Heating (LED red)
E. Pump Cooling (LED blue)
F. Cooling (LED blue)
G. Input switchover Heating/
Cooling
H. Cascading output Heating/
Cooling
I. Relay contact pump Cooling
J. Relay contact pump Heating
K. Mains voltage 230 V AC
L. Timer module (optional)
