3.3 Adjusting the angle of the handlebar [Reverse E-Black-One]

DANGER
Risk of accident due to an incorrect installation!
Any improperly installed components could loosen during the ride!
• Stick to the specific instructions for mounting the handlebar to the stem!
• Do not exceed torques!
• Do not use grease or other lubricants to mount the stem.
1. Loosen the upper bolts of the handlebar clamp (A).
2. Align the handlebar.
3. Tighten the upper bolts of the handlebar clamp (A) alternately with a torque wrench until you have reached a
tightening torque of 6 Nm.

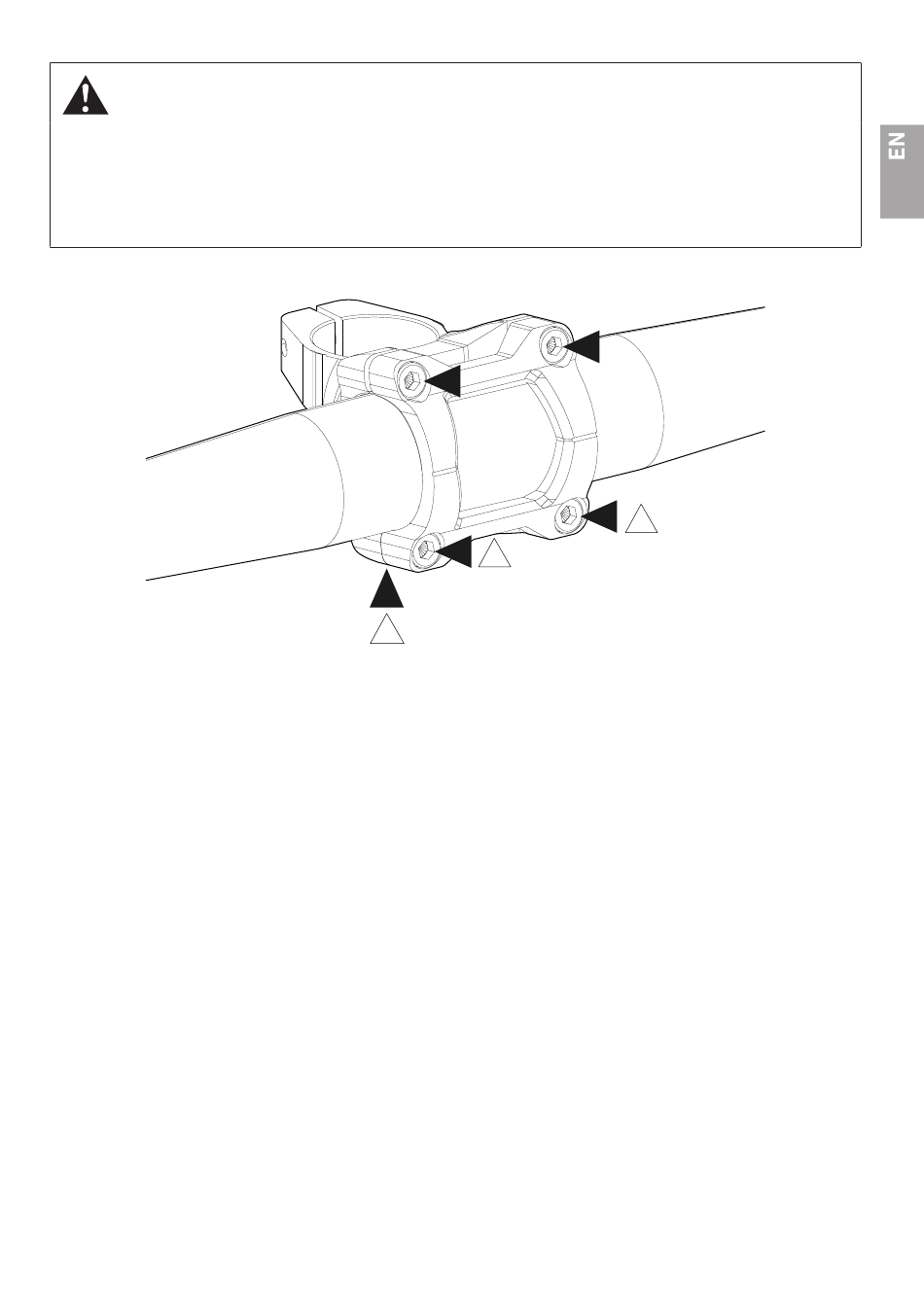

Tightening the upper bolts (A) preloads the lower bolts (B) to the intended value. The lower bolts of the handlebar clamp
(B) must not be tightened any further! The lower gap between handlebar clamp and stem (D) must be completely closed.
A
6 Nm
B
!
max. 1 Nm
C
!
A 6 Nm
B
!
max. 1 Nm
