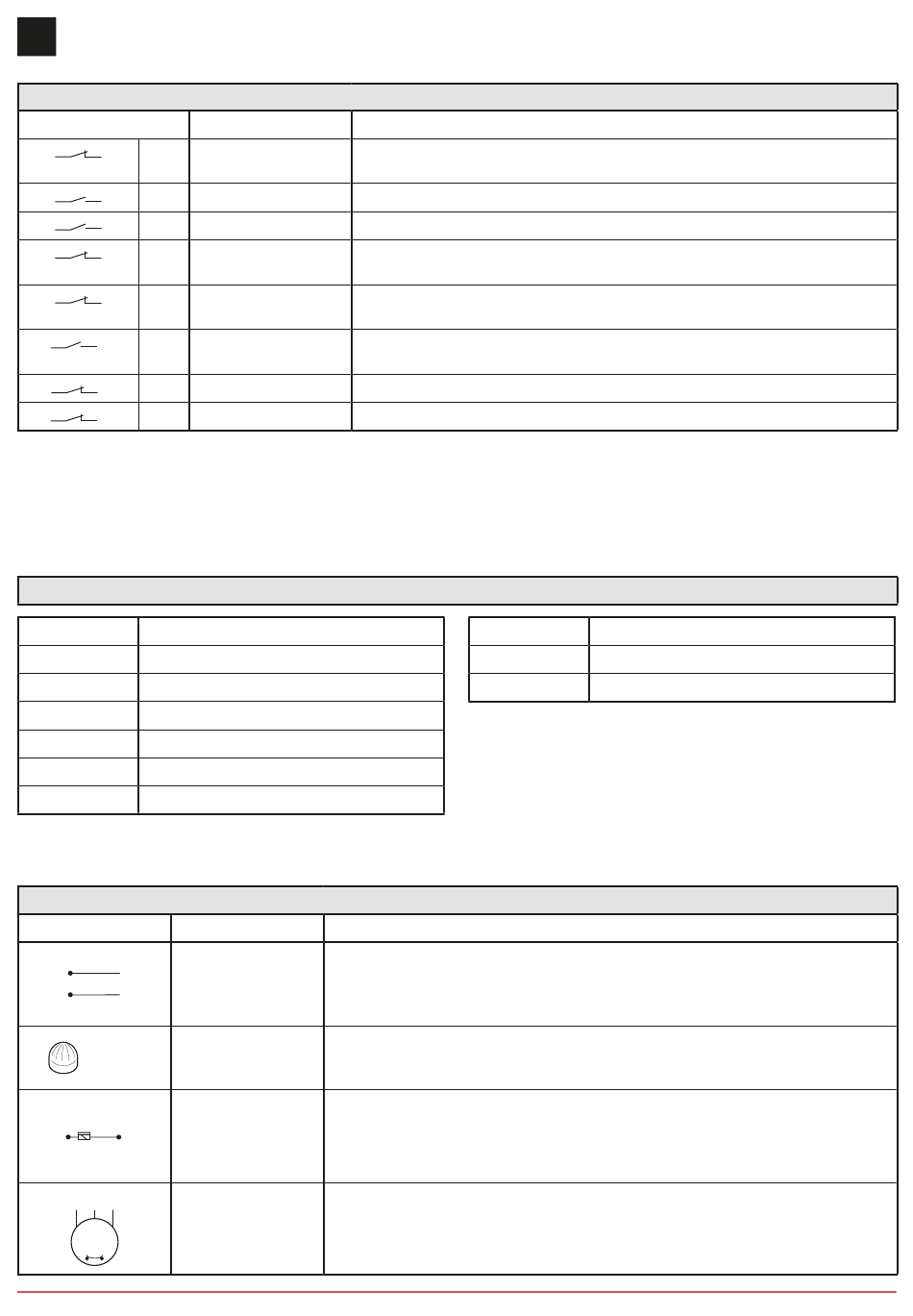

5.2 52E CONTROL PANEL (INVERTER) - Connections
52E
Command
1 2 NC
1 3 NO
1 4 NO
41 40 NC
1 8 NC
1 20 NO
1 11 NC
1 13 NC
M2 Safety device / Commands
M3 Position signal
M4 Interlock
M4A Back
M5 Motor / brake motor
M6 Thermal motor
M7 Absolute encoder
Output
+
1
-
0
LAMP
-F +F
U W V
M
3 ~
0DT848 01-12-2021
Function
STOP If on the programming menu (page 15 point 16)
Contact 1-2 enabled, opening of the contact STOPS the door
Opening The closure of the contact activates the opening operation.
Closure The closure of the contact activates the closing operation.
Reversal safety Opening the safety contact triggers a reversal of the movement (reopening)
contact during the closing operation.
Reversal safety Opening the safety contact triggers a reversal of the movement (reopening)
contact during the closing operation.
Partial opening Closing of the contact activates a partial opening operation of the duration set
with the advanced menu.
Closing position Opening of the contact indicates the closing position. (max. 50 mA)
Opening position Opening of the contact indicates the opening position. (max. 50 mA)
CONTROL PANEL CONNECTORS
Value
Power supply to accessories.
24 V = / 0. 5A Power supply output for external accessories, including automation status
lamps.
Flashing light (FLM).
230 V~ Non-flashing signal (jumper ON on FML).
Activated during opening and closing operations.
Motor electric brake.
24 V = / 0.5 A
The output is active for the duration of both the opening and closing operation.
230 V~ / 6 A Three-phase motor.
INPUTS
Description
J4
OPEN
SAFETY
OUTPUTS
Description
- 38 -
Brake resistance
Auxiliary panel card
Auxiliary safety card
