BFT RIGEL 5 Instructions D'utilisation Et D'installation page 18

x 2
OK
- +
- +
18 -
RIGEL 5

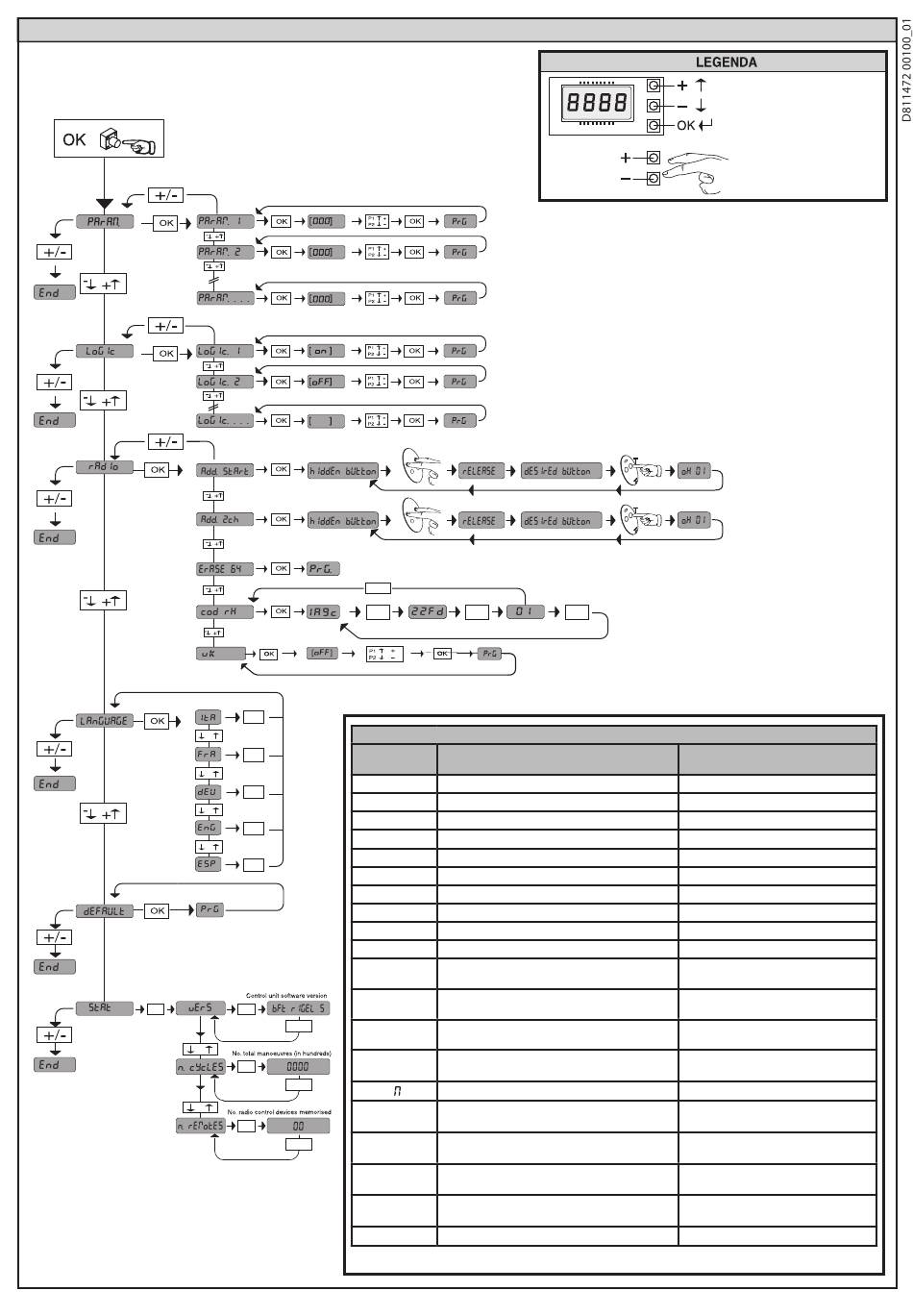

ACCESS TO MENUS Fig. 1
+/-
OK
- +
DIAGNOSTICS
OK
- +
OK
- +
OK
- +
OK
OK
+/-
OK
+/-
OK
+/-
* X = 0,1,...,9,A,B,C,D,E,F
See PARAMETERS MENU
See LOGIC MENU
OK OK
DIAGNOSTICS and WARNINGS
DESCRIPTION
CODE
EXTERNAL START input activation
stre
INTERNAL START input activation
stri
input activation PEDESTRIAN
ped
OPEN input activation
open
CLOSE input activation
cls
STOP input activation
stop
PHOT input activation
phot
activation of input for PHOTOCELL ON OPENING
phop
activation of input for PHOTOCELL ON CLOSING
phcl
input activation SAFETY EDGE
bar
activation of input for MOTOR 1 CLOSING LIMIT
svc1
SWITCH
activation of input for MOTOR 1 OPENING
svo1
LIMIT SWITCH
activation of input for MOTOR 2 CLOSING LIMIT
svc2
SWITCH
activation of input for MOTOR 2 OPENING
svo2
LIMIT SWITCH
TIMER input activation
ti e
photocell test anomaly
Er01
safety edge test anomaly
Er02
photocell on opening test anomaly
er03
photocell on closing test anomaly
er04
Er1X * hardware anomaly
Scroll up
Scroll down
Confirm/Switch on display
Exit Menù
OK
NOTES
check photocell connection and/or
parameter/logic settings
check safety edge connection and/or
parameter/logic settings
check photocell connection and/or
parameter/logic settings
check photocell connection and/or
parameter/logic settings
check connections to motor
