Installation instructions, only for experts
1. Operating unit
CAUTION!
4-pole cable may not be inserted into 6-pole socket, as otherwise the
operating unit will be damaged.
CAUTION!
Do not use force under any circumstances.

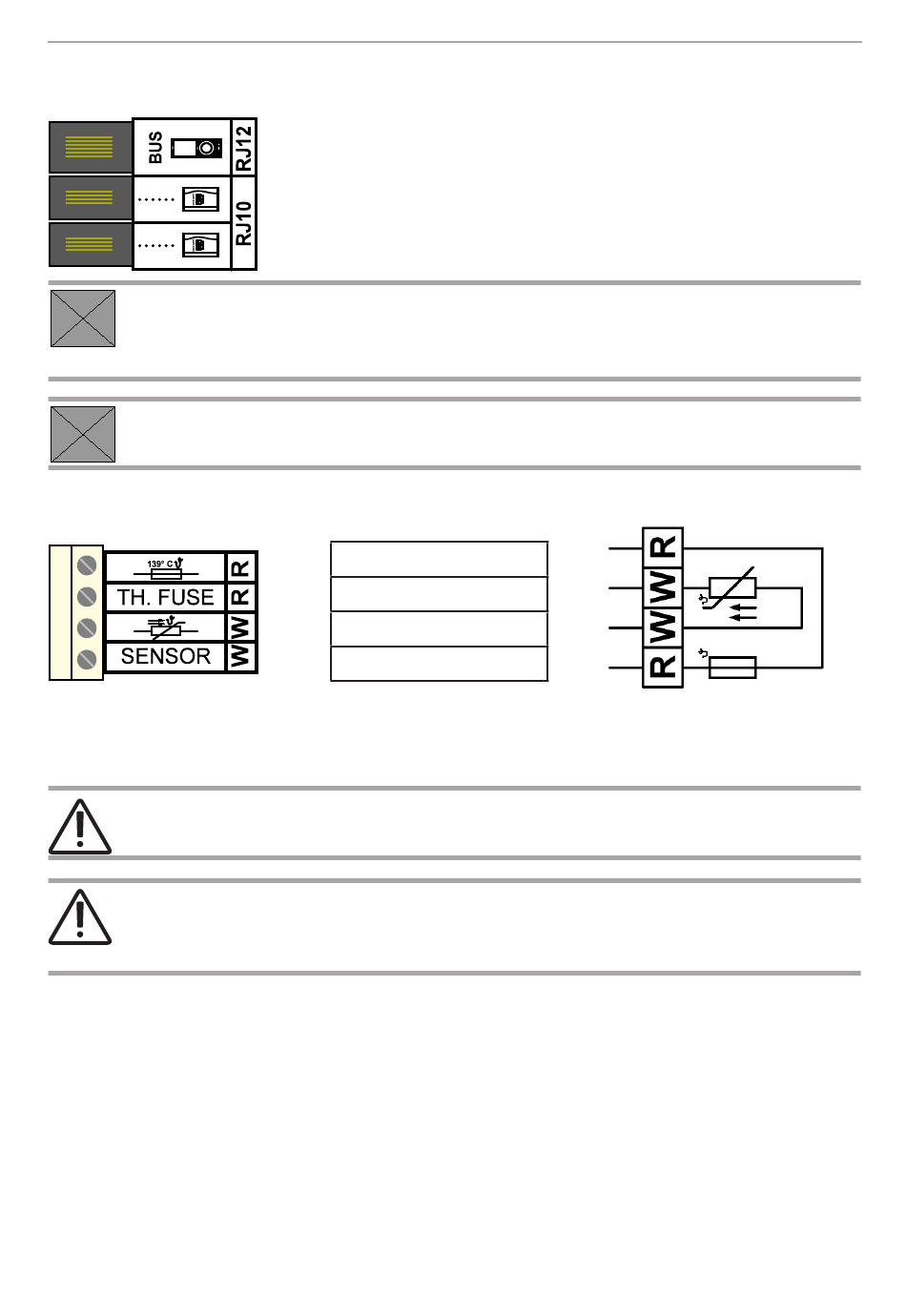

2. Heater sensors
The cables must be properly inserted into the casing via the PG screw joint and
connected..
CAUTION!
Heed the cable labelling under all circumstances.
CAUTION!
Wrongly connected cables can cause irreparable damage.
The WC4-B-L (Wave.com4 sauna control power unit)
has the following data connections:
• 2 pcs RJ10 4/4
• 1 pcs RJ12 6/6
Thermal fuse
Thermal fuse
Temp. sensor
Temp. sensor
