8. Wall Control Installation
3-WAY INSTALLATION
(One Fan controlled by two different Wall Controls)
(See Figures 35 and 36.)
WARNING
!
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse or circuit breaker box before
wiring. All wiring must be in accordance with National
and Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
8.9
Disconnect Electrical Power to the Branch Circuit at the
Circuit Breaker or Fuse Box before attempting to install
the Ceiling Fan Wall Control into the Outlet Box.
WARNING
!
Do not connect any neutral (white) wire to this control.
Incorrect wiring will damage this control.
8.10
At all Wall Box locations remove Faceplates and
Screws from Existing Controls. Pull Controls out
from Wall Boxes and determine which Wall Box
contains the "HOT" Wire and which Wall Box
contains the "LOAD" Wire. Also, identify Traveler
Wires which are common to both Wall Boxes.
Disconnect Wires from Existing Controls only.
Do not attempt to disconnect any Wires not already
connected to Existing Controls.
8.11
Before installing the Wall Control, place the Wall Control
in "OFF" mode by pushing "ON/OFF" Switch to the
"OFF" position.
8.12
Install a Wall Control in the Wall Box containing the
"HOT" Wire first. Connect the Black Wire of the Wall
Control to the "HOT" Wire. Securely connect the Wires
with Wire Connector, supplied.
8.13
Connect the other Black Wire of the Wall Control to both
remaining Traveler Wires in the Wall Box and secure
with Wire Connector, supplied.
(Continued)

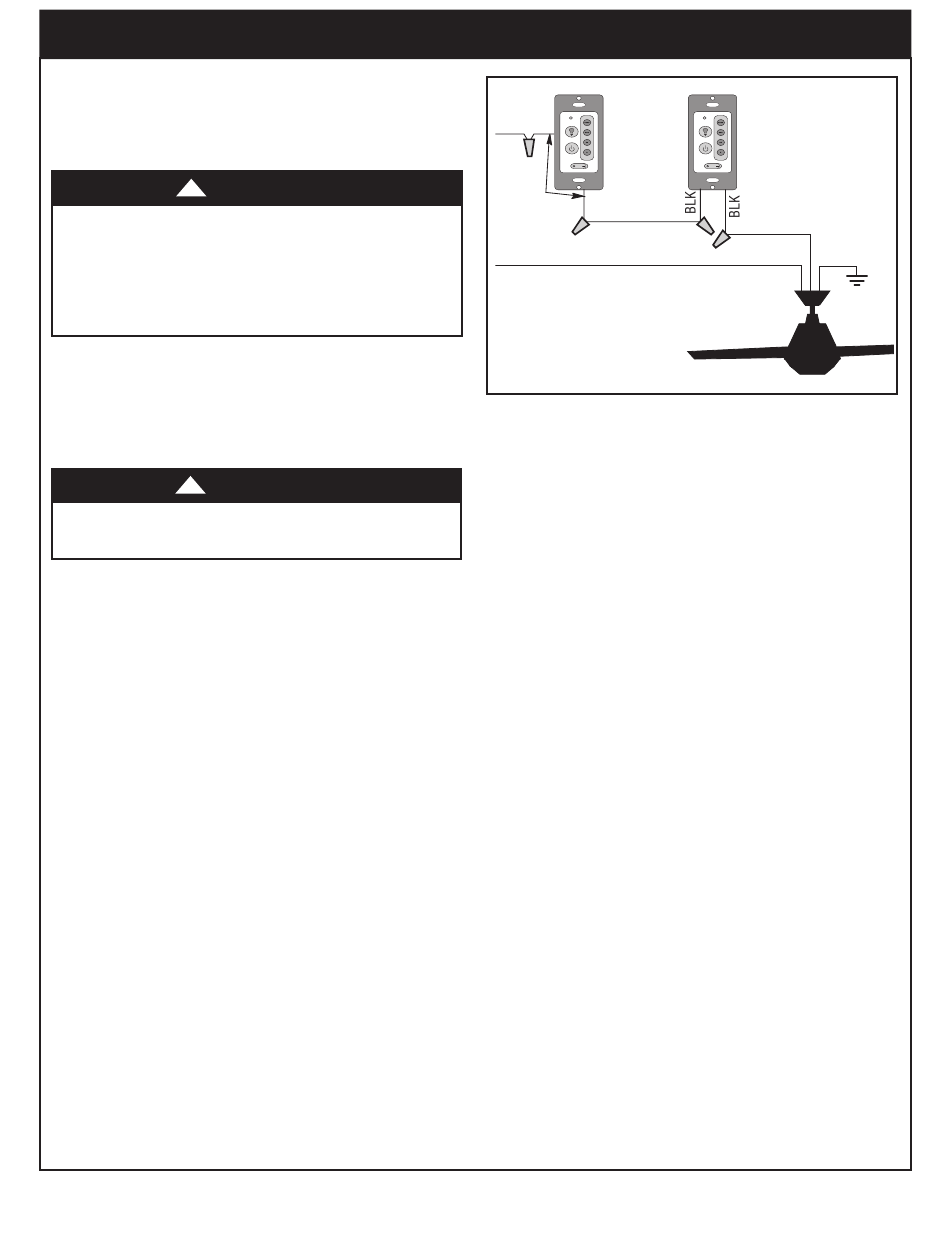

FAN/LIGHT
HOT
WALL
....
CONTROL
OFF ON
BLACK
TRAVELER
WIRE
NEUTRAL
RECEIVER LOCATED
WITHIN THE CEILING
COVER
Figure 35
Please contact 1-800-654-3545 for further assistance
23
SECOND
WALL
....
CONTROL
PURCHASED
OFF ON
SEPARATELY
LOAD
BLACK
GROUND
emersonfans.com
ETL Model No.: CF370
