5. How to Wire Your Ceiling Fan
5.3
NOTE: Make all wiring connections using the
wire connectors supplied in the parts bag and
the receiver hardware bag. Make sure that all
connections are tight, including ground, and that
no bare wire is visible at the wire connectors,
except for the supply circuit ground wire.
Connect the Hanger Ball Green Grounding Wire and
the Hanger Bracket Green Grounding Wire to the
Supply Grounding Conductor (this may be a bare wire
or wire with Green Colored insulation).
Securely connect Wires with Wire 12 ga. Connector
(supplied in parts bag) (Figure 19).
5.4
Securely connect the Receiver White Wire (AC IN N) to
the Supply White Wire (neutral) using the 12 ga. Wire
Connector (supplied in parts bag) (Figure 20).
HANGER BALL, HANGER BRACKET, & SUPPLY GREEN
GOUNDING WIRES

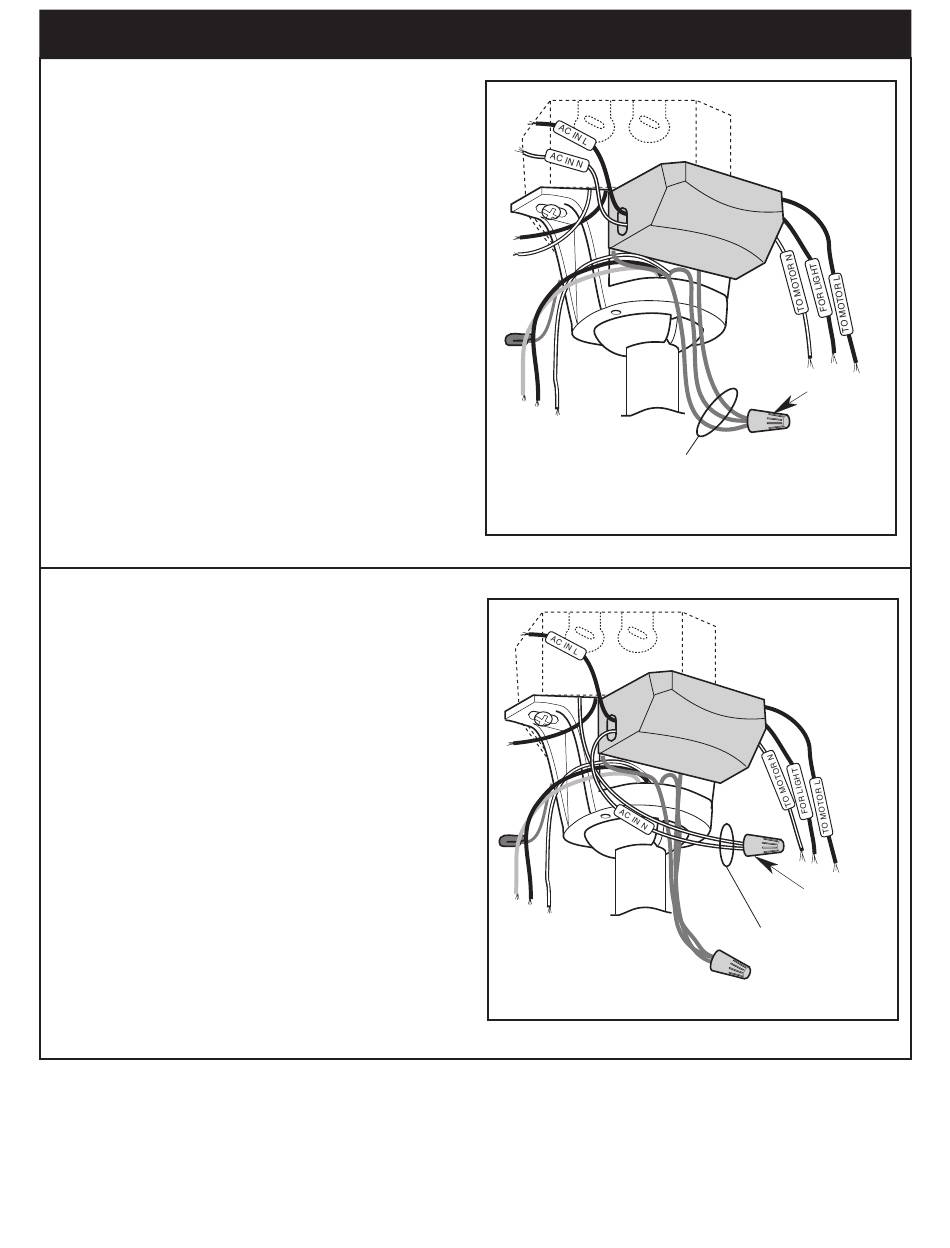

Figure 19
Figure 20
Please contact 1-800-654-3545 for further assistance
13
(Continued)
12 ga. WIRE
CONNECTOR
12 ga. WIRE
CONNECTOR
SUPPLY AND RECEIVER
WHITE WIRES
