11.3.4 Error type E or F
1
2
3
4
9a 9b

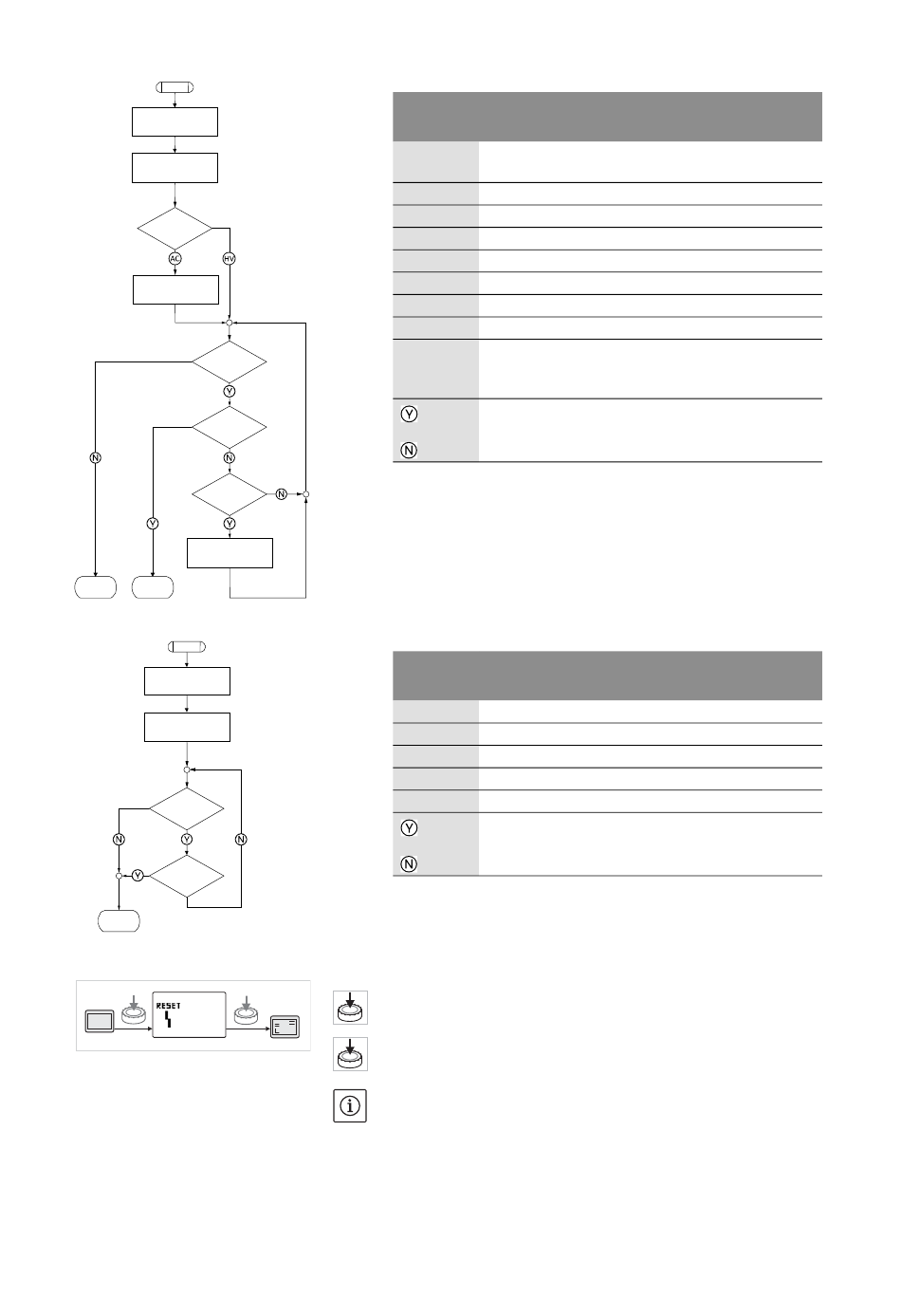

Fig. 54: Error type E, flowchart
1
2
3
4
5
Fig. 55: Error type F, flowchart
6.0.0.0
E000
Fig. 56: Acknowledging error type E or F
Installation and operating instructions Wilo-CronoLine-IL-E, CronoTwin-DL-E, CronoBloc-BL-E
Error type E (Fig. 54):
5
6
7
8
Error type F (Fig. 55):
If type E or F errors occur, proceed as follows to acknowledge (Fig 56):
• To change to the menu mode, press the red button.
Menu number <6.0.0.0> flashes on the display.
12.3
• Press the red button again.
The error is acknowledged, and the status page is displayed.
NOTE:
The error will be acknowledged automatically if the cause of the error
is eliminated.
Program Contents
step/query
1 • Error code is displayed
• Pump goes into emergency operation
2 • Error counter is incremented
3 Error matrix AC or HV?
4 • SSM is activated
5 Error criterion fulfilled?
6 Error acknowledged?
7 Error matrix HV and > 30 min?
8 • SSM is activated
9a End; auto control (double pump) resumes
9b End; auto control (single pump) resumes
Yes
No
Program Contents
step/query
1 • Error code is displayed
2 • Error counter is incremented
3 Error criterion fulfilled?
4 Error acknowledged?
5 End; auto control resumes
Yes
No
