4. Adjust the rail size on the rail assembly for the depth of your rack

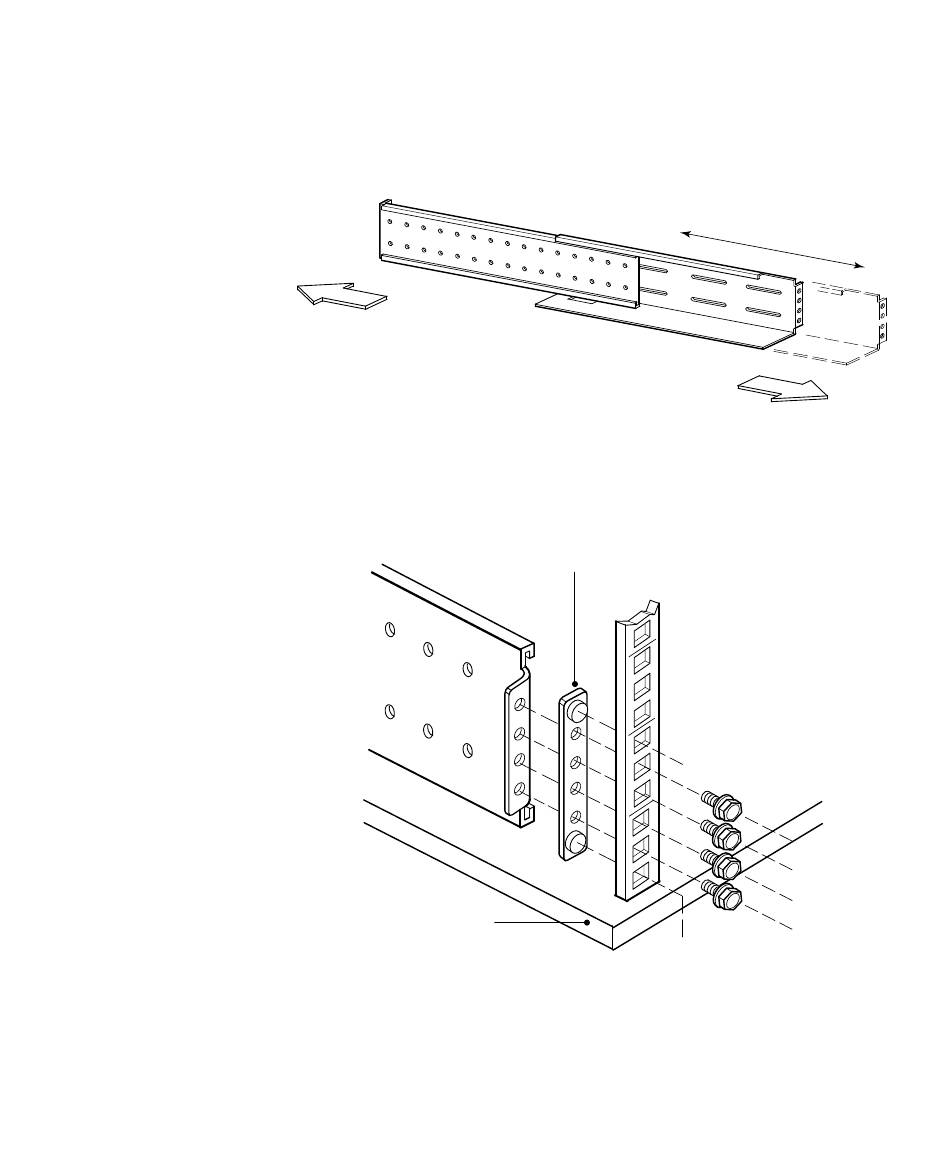

(see Figure 15).
Rear
Figure 15. Adjusting the Rail Depth (Right Rail Assembly Shown)
5. Secure the rail to the rear of the rack with four M5 machine screws
and an adapter plate (see Figure 16).
Tighten all screws at the front and rear of the rail.
Bottom of Rack or
Top of Other Cabinet
Figure 16. Securing the Rear Rail (Right Rail Assembly Shown)
®
