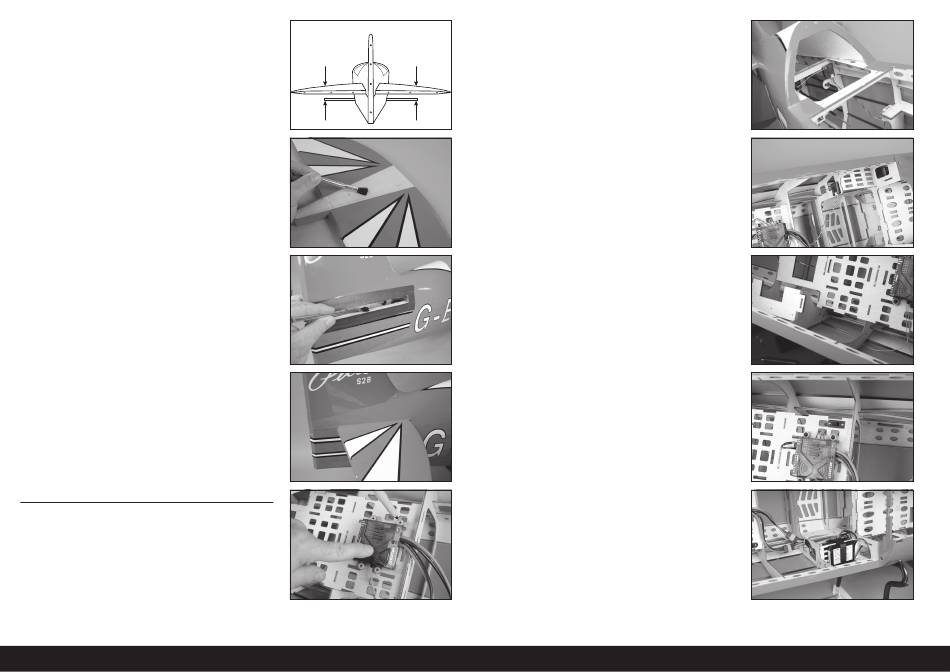

45. Slide the stabilizer back into the slot in the fuselage. Stand
8-10 feet (2-3 meters) and check that the stabilizer is parallel
to the wing tube. If not, remove the stabilizer and lightly sand
the slot in the fuselage until the stabilizer is aligned perfectly
to the wing tube.
46. Remove the stabilizer and mix 1/2 ounce (15cc) of 30-minute
epoxy. Apply epoxy to the exposed wood on the stabilizer
that will come in contact with the bare wood of the slot in the
fuselage.
47. Apply epoxy to the slot where it will come in contact with the
stabilizer.
48. Slide the stabilizer into the slot and check the alignment
with the fuselage and wing tube. Remove any excess epoxy
from the stabilizer and fuselage using a paper towel and
isopropyl alcohol. Check the alignment of the stabilizer as the
epoxy cures to make sure it does not change position in the
fuselage. Once the epoxy has fully cured, remove the tape
from the fuselage.

RECEIVER INSTALLATION

49. Secure the receiver in the fuselage using the screws provided
with the receiver.
 For additional details, refer to the instructions
provided with the receiver.
EN
A=A
A A
10
50. Mount the remote receiver(s) in the fuselage.
 Use the instructions included with your receiver for
additional installation information for the remote receivers.
51. Mount the receiver switch in the radio tray. Holes will need
to be drilled in the tray for the mounting screws. It may be
necessary to trim the tray using a hobby knife with a #11
blade to properly install the switch. Connect two 6-inch
(150mm) servo extensions to the appropriate ports on the
receiver for the lower wing aileron servos.
52. Secure the receiver batteries in the fuselage using hook
and loop tape (not included) and hook and loop straps (not
included).
 Do not cover warnings on the battery when
mounting them in the fuselage.
