WARNING!
Risk of Injury due to Damaged Backrest Buckles!
Check for secure fastening of the backrest
buckles each time the product is maintained or
reconditioned.
– Check all buckle clips for secure fastening by
closing the buckles and pulling on both ends.
– Replace the backrest/backrest buckles if a
buckle opens under the applied force.
1639504-D

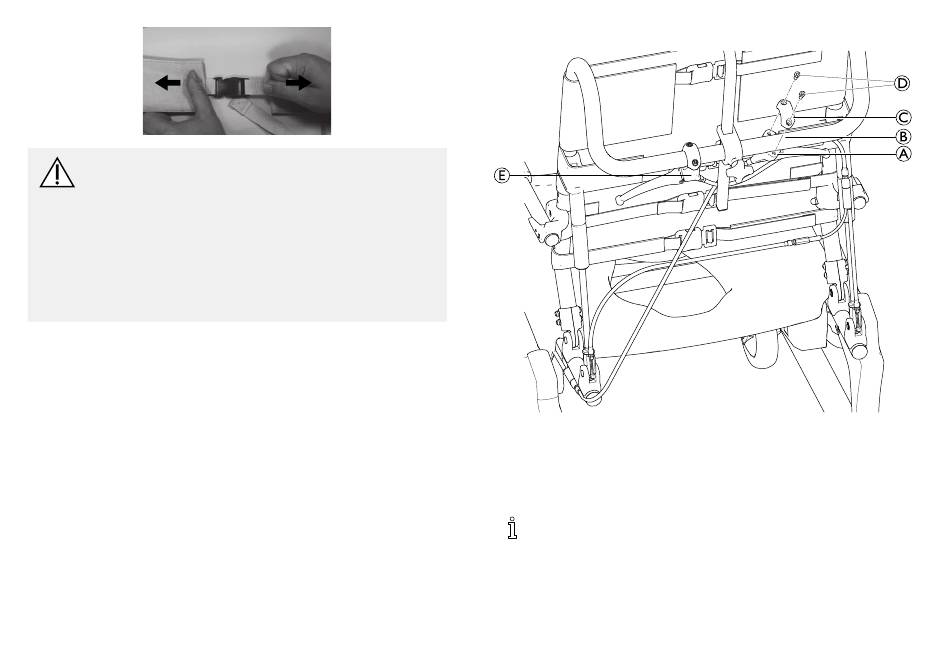

4.2.3 Installing the Activation Handle

1. Remove the clamping part C from the activation handle
A by loosening the screws D.
2. Position the activation handle A for seat tilting from
the underside at the right side of the handle tube B.
The handle should be slightly turned inwards to the
backrest.
3. Install the activation handle to the handle tube using
the clamping part C and screws D.
Setup
15
