Operating and Maintenance Instruction FCU 8000-1 series

5.3 Hydraulic circuit

pressure line 1 - 350 bar
fixed
current
regulator
800 ml/min

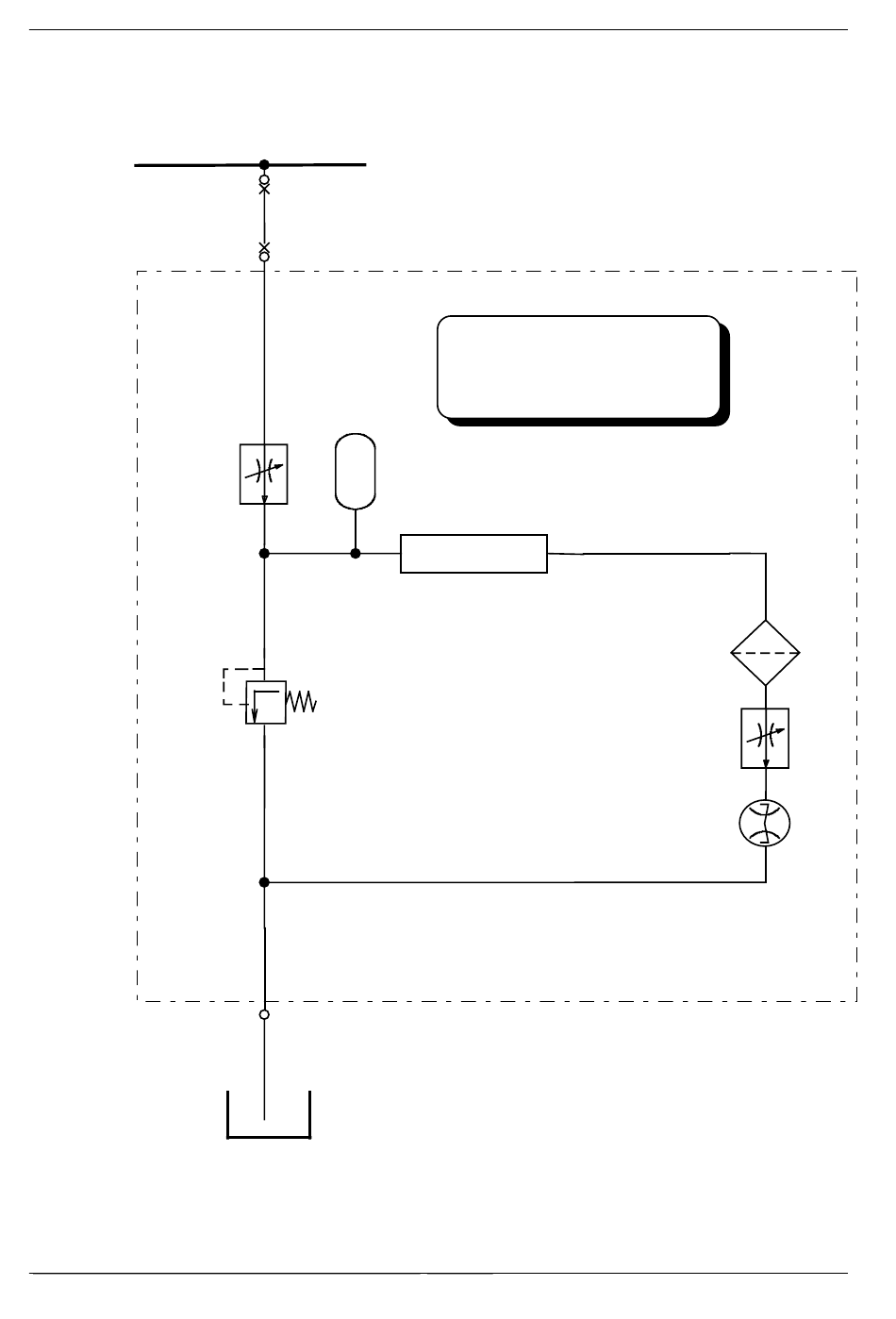

Figure 1 : Hydraulic circuit of FCU
HYDAC Filtertechnik GmbH
high pressure hose
pulsation damper
particle sensor
pressure relief valve
30 bar
return line hose
reservoir or return line of the system
Doc.: 3109776 Ed.: 01/13.02.2002
FluidControl Unit
FCU 8110 / FCU 8210
flow control valve
flow rate meter
E
filter
5 µm
Page 74
