REMS Tiger ANC Notice D'utilisation page 70

eng
Hand-guided sawing with all REMS reciprocating saws
REMS universal saw blades and REMS saw blades
Steel pipes and other metal profi les,
Wood, wood with nails, pallets,
building materials, plastics
1.4. Number of strokes (idling speed)
REMS Tiger ANC
REMS Tiger ANC VE (infi nitely variable)
REMS Tiger ANC SR (infi nitely variable)
REMS Tiger ANC 48 V
REMS Tiger ANC pneumatic (infi nitely variable)
REMS Puma VE (infi nitely variable)
REMS Cat ANC VE (infi nitely variable)
REMS Akku-Cat ANC VE (infi nitely variable)
1.5. Electric data
REMS Tiger ANC/VE,
REMS Cat ANC VE 230 V~; 50 – 60 Hz; 1050 W; 5 A or
110 V~; 50 – 60 Hz; 1050 W; 10 A or
48 V~; 50 – 60 Hz; 750 W; 16.5 A
radio interference suppression
Protection class ll, protective insulation
REMS Tiger ANC SR 230 V~; 50 – 60 Hz; 1400 W; 6.4 A or
110 V~; 50 – 60 Hz; 1400 W; 12.8 A
radio interference suppression
Protection class ll, protective insulation
REMS Puma VE 230 V~; 50 – 60 Hz; 1300 W; 6 A
radio interference suppression
Protection class ll, protective insulation
REMS Akku-Cat ANC VE 18 V – ---; 30 A
Rapid-charger Input
Li-Ion/Ni-Cd Output
radio interference suppression
Protection class ll, protective insulation
Rapid-charger Input
Li-Ion/Ni-Cd Output
radio interference suppression
Protection class ll, protective insulation
1.6. Compressed-air supply REMS Tiger ANC pneumatic
Required working pressure
Air consumption at idling speed
Air consumption at full speed
Tube width
Oiler adjustment
1.7. Dimensions
REMS Tiger ANC
REMS Tiger ANC VE
REMS Tiger ANC SR
REMS Tiger ANC pneumatic
REMS Puma VE
REMS Cat ANC VE
REMS Akku-Cat ANC VE
1.8. Weights
REMS Tiger ANC
REMS Tiger ANC VE
REMS Tiger ANC SR
REMS Tiger ANC pneumatic
REMS Puma VE
REMS Cat ANC VE
REMS Akku-Cat ANC VE (with battery)
REMS Battery Li-Ion 18 V, 3,0 Ah
Guide support / " – 2"
1
8
Guide support 2½" – 4"
Guide support 5" – 6"
1.9. Noise information
Sound pressure level L
pA
REMS Tiger/Cat
REMS Puma
Sound capacity level L
WA
REMS Tiger/Cat
REMS Puma
Uncertainty K
1.10. Vibrations
Weighted effective value of acceleration:
all REMS reciprocating saws
Sawing chipboard 18.3 m/s²
Sawing wooden beam 28.3 m/s²
The indicated weighted effective value of acceleration has been measured
against standard test procedures and can be used by way of comparison with
another device. The indicated weighted effective value of acceleration can also
be used as a preliminary evaluation of the exposure.
Ø ≤ 6", ≤ 250 mm
≤ 250 mm
2400 min‫¹־‬
0 ... 2400 min‫¹־‬
700 ... 2200 min‫¹־‬
1300 min‫¹־‬
0 ... 1700 min‫¹־‬
0 ... 2800 min‫¹־‬
0 ... 2400 min‫¹־‬
0 ... 1800 min‫¹־‬
230 V~; 50 – 60 Hz; 65 W
10.8 – 18 V – ---
110 V~; 50 – 60 Hz; 65 W
10.8 – 18 V – ---
0.6 MPa, 6 bar (85 psi)
1.6 m³/min (56 cf/min)
1.3 m³/min (46 cf/min)
12 – 13 mm (½")
6 – 7 drops/min
455×80× 90 mm (17.9"×3.2"×3.5")
435×80×135 mm (17.1"×3.2"×5.3")
490×80× 90 mm (19.3"×3.2"×3.5")
445×80× 90 mm (17.5"×3.2"×3.5")
475×90×152 mm (18.7"×3.5"×6.0")
435×80×135 mm (17.1"×3.2"×5.3")
435×90×190 mm (17.1"×3.5"×7.5")
3.0 kg (6.6 lb)
3.0 kg (6.6 lb)
3.1 kg (6.8 lb)
3.8 kg (8.4 lb)
3.8 kg (8.4 lb)
3.0 kg (6.6 lb)
3.2 kg (7.1 lb)
0.7 kg (1.5 lb)
1,0 kg (2,2 lb)
1,7 kg (3,7 lb)
2,7 kg (6,0 lb)
96 dB(A)
87 dB(A)
107 dB(A)
98 dB(A)
3 dB(A)
K = 3.3 m/s²
K = 2.4 m/s²
CAUTION CAUTION
The indicated weighted effective value of acceleration can differ during operation
from the indicated value, dependent on the manner in which the device is used.
Dependent upon the actual conditions of use (periodic duty) it may be necessary
to establish safety precautions for the protection of the operator.
2. Preparations for Use
2.1. Electrical connection
Note the mains voltage! Before connecting the REMS reciprocating saw or
the rapid charger, check whether the voltage given on the rating plate corre-
sponds to the mains voltage. On building sites, in a wet environment, indoors
and outdoors or under similar installation conditions, only operate the power
tool on the mains with a fault current protection switch (FI switch) which inter-
rupts the power supply as soon as the leakage current to earth exceeds 30 mA
for 200 ms.
Rechargeable batteries
NOTICE

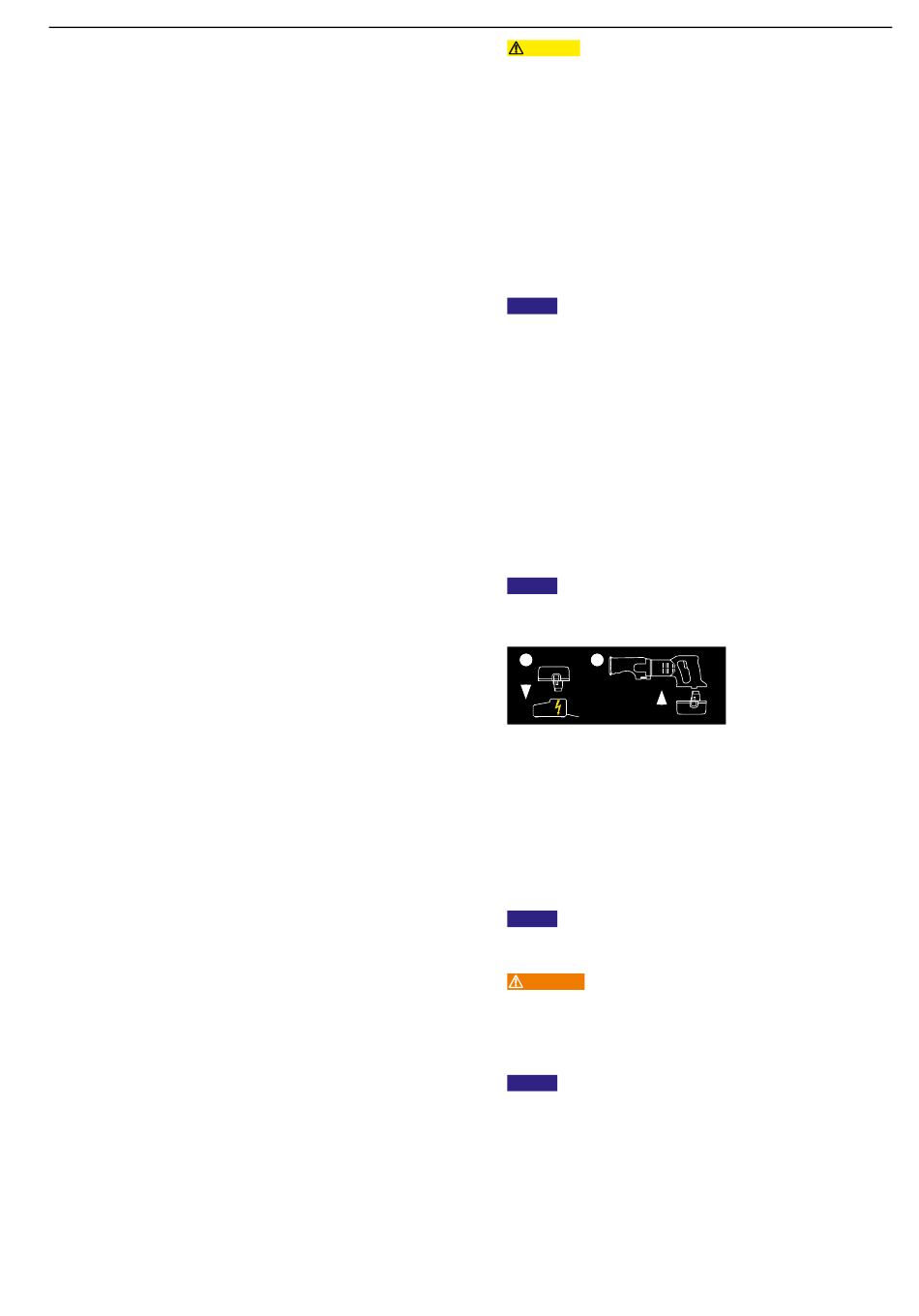

Charge the battery before inserting it into the REMS Akku-Cat ANC VE! Always
insert the battery (13) vertically into the REMS Akku-Cat ANC VE or rapid
charger until it snaps in audibly. If inserted at an angle it can cause damage to
the contacts and result in a short circuit which damages the battery.
Total discharging by undervoltage
The Li-Ion batteries may not drop below a minimum voltage because otherwise
the battery could be damaged by "total discharge". The cells of the REMS Li-Ion
battery are delivered pre-charged to approx. 40 %. Therefore the Li-Ion batteries
must be charged before use and recharged regularly. Failure to observe this
regulation of the cell manufacturer can lead to damage to the Li-Ion battery by
total discharging.
Total discharging due to storage
If a relatively low charged Li-Ion battery is stored, self discharging can lead to
total discharge damage of the battery after longer storage. Li-Ion batteries must
therefore be charged before storing and recharged every six months at the
latest and charged again before use.
NOTICE
Charge the battery before use. Recharge Li-Ion batteries regularly to avoid
their total discharge. The rechargeable battery will be damaged by total
discharge.
1 2
Only use a REMS rapid charger for charging. New Li-Ion batteries and Li-Ion
batteries which have not been used for a long time only reach full capacity after
several charges. Non-rechargeable batteries may not be charged.
Rapid charger Li-ion/NiCd (Art. No. 571560)
The left control lamp lights up and remains green when the mains plug is
plugged in. If a battery is inserted in the REMS rapid charger, the green control
lamp fl ashes to indicate that the battery is charging. The green light stops
fl ashing and remains on to signal that the battery is fully charged. If the red
control lamp fl ashes, the battery is defective. If the red control lamp comes on
and remains on, this indicates that the temperature of the rapid charger and /
or the battery is outside the permissible range of 0°C to +40°C.
NOTICE
The REMS rapid chargers are not suitable for outdoor use.
2.2. Sawing with guide holder (2) (right-angled sawing)
WARNING
Pull out the mains plug or remove the battery before fi tting/removing the
guide holder!
Push the bearing pin (3) of the guide holder (2) into the REMS reciprocating
saw from the side so that the limit pin of the guide holder runs in the longitudinal
slit in the REMS reciprocating saw.
NOTICE
The guide holder must be used to achieve right-angled saw cuts because
exact right-angled positioning and guiding of the REMS reciprocating saw is
not possible by hand.
2.3. Hand-guided sawing
The REMS reciprocating saw is used without a guide holder (2). It must be
pressed forcefully against the material when sawing so that the support shoe
(6) is constantly in contact with the material being sawn. The material to be
sawn must be secured against being fl ung away.
2.4. Selecting the suitable saw blade
In your own interest, use only REMS quality saw blades for all REMS recipro-
cating saws otherwise your warranty rights will be voided!
