5 WHEEL LOCKS

5.2 Replacing Wheel Lock Handle.



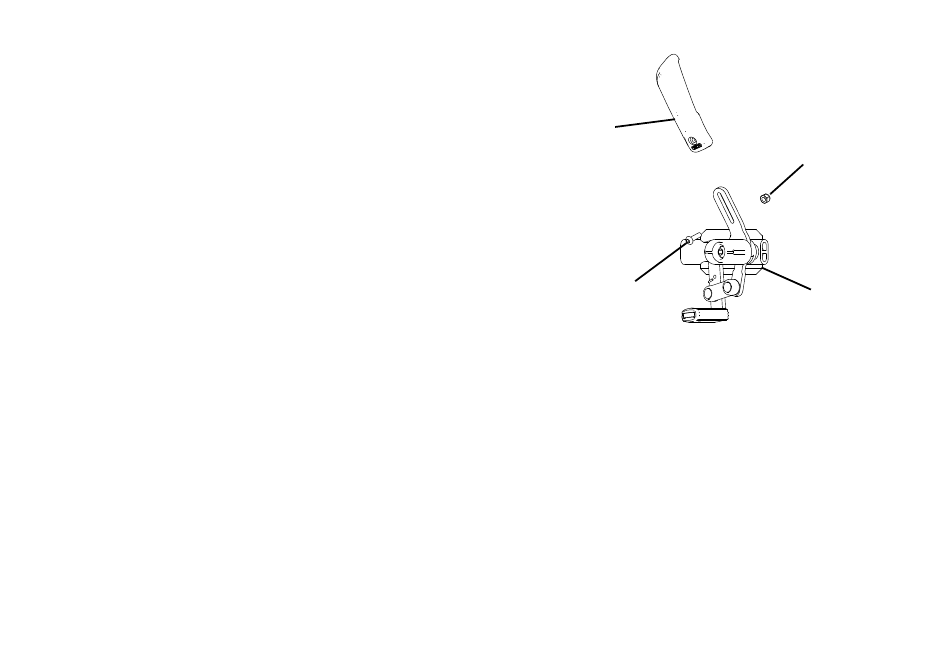

For this procedure, refer to FIGURE 3.
1. Remove the mounting screw (A) and locknut (B) that secures the
wheel lock handle (C) to the wheel lock assembly (D).
2. Remove the wheel lock handle and discard.
3. Align the new wheel lock handle with the wheel lock assembly.
4. Secure the new wheel lock handle with the mounting screw and
locknut.
5. If necessary, repeat STEPS 1 to 4 for the other wheel lock.
™
