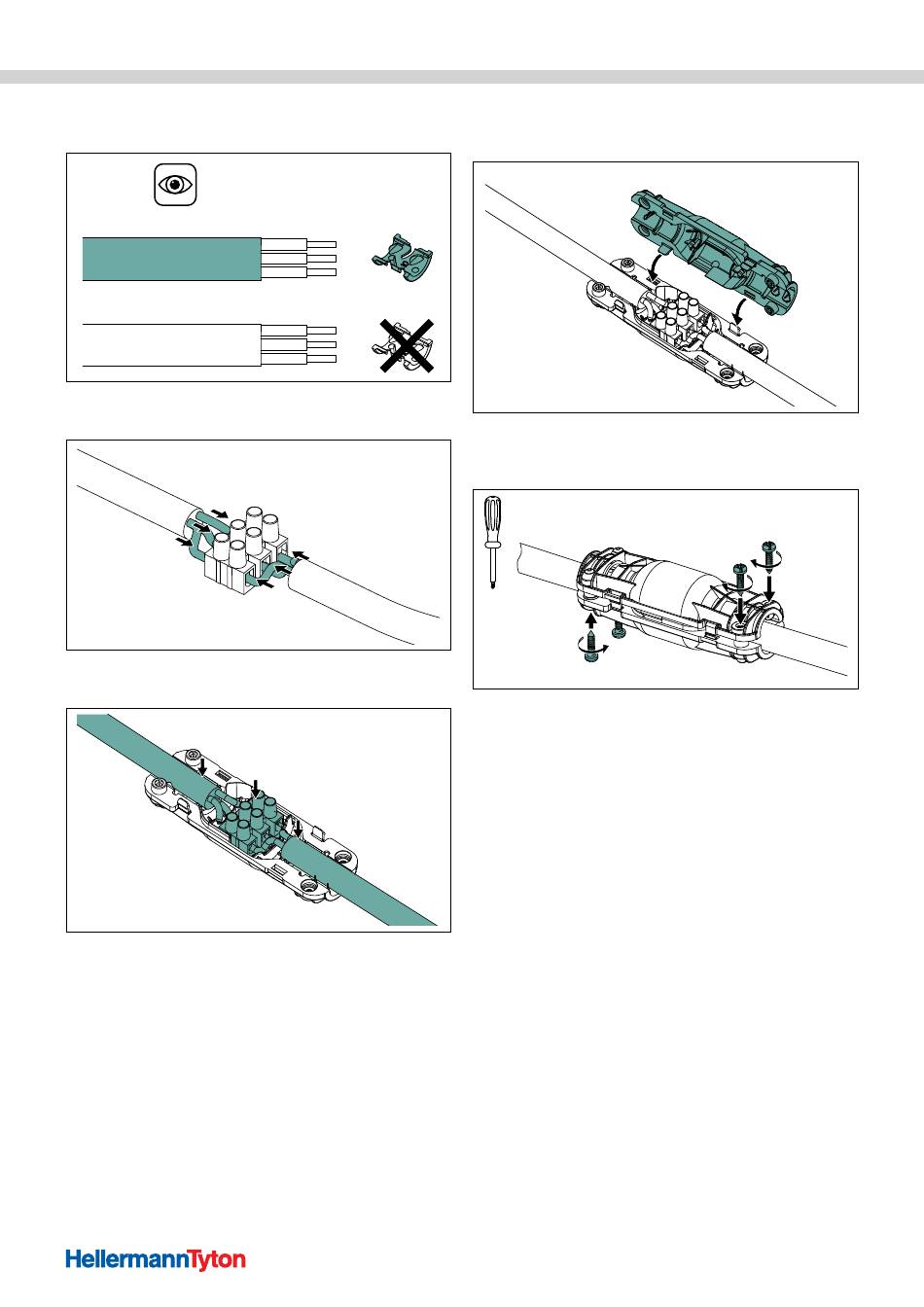

Installation
f Select the adapters for the corresponding cable
diameters.
< Ø9,5 mm
> Ø9,5 mm
Selecting the adapters.
4 Connect the cores with the connector.
Connecting the cores.
5 Insert the cable connection into the bottom shell.
Inserting the cable connection.
8
Operating Instructions • Relilight • 09-2016
6 Place the top shell on the bottom shell.
f Ensure that the catch hooks engage.
Assembling the top and bottom shells.
7 Screw the top and bottom shells together with the four
screws.
Screwing the top and bottom shells together.
; The product has been successfully installed.
