Installation
5 Installation
DANGER
Danger of lethal electric shock!
There is a risk of lethal injury when touching live cables.
f Disconnect the cable from the power supply before
installing the product.
f Only connect the product to a properly installed and
standardised cable.
f Observe the voltage and amperage requirements.
The following equipment is required for the start-up of
the product:
• Cable knive or stripping plier
• Screwdriver
• Crimping plier
If transport damage has been found or if the scope of
delivery was incomplete, please contact Customer Service at
HellermannTyton.
6
Operating Instructions • Relilight • 09-2016
5 .1 Installing the Relilight V 2 .75 I1
Proceed as follows:

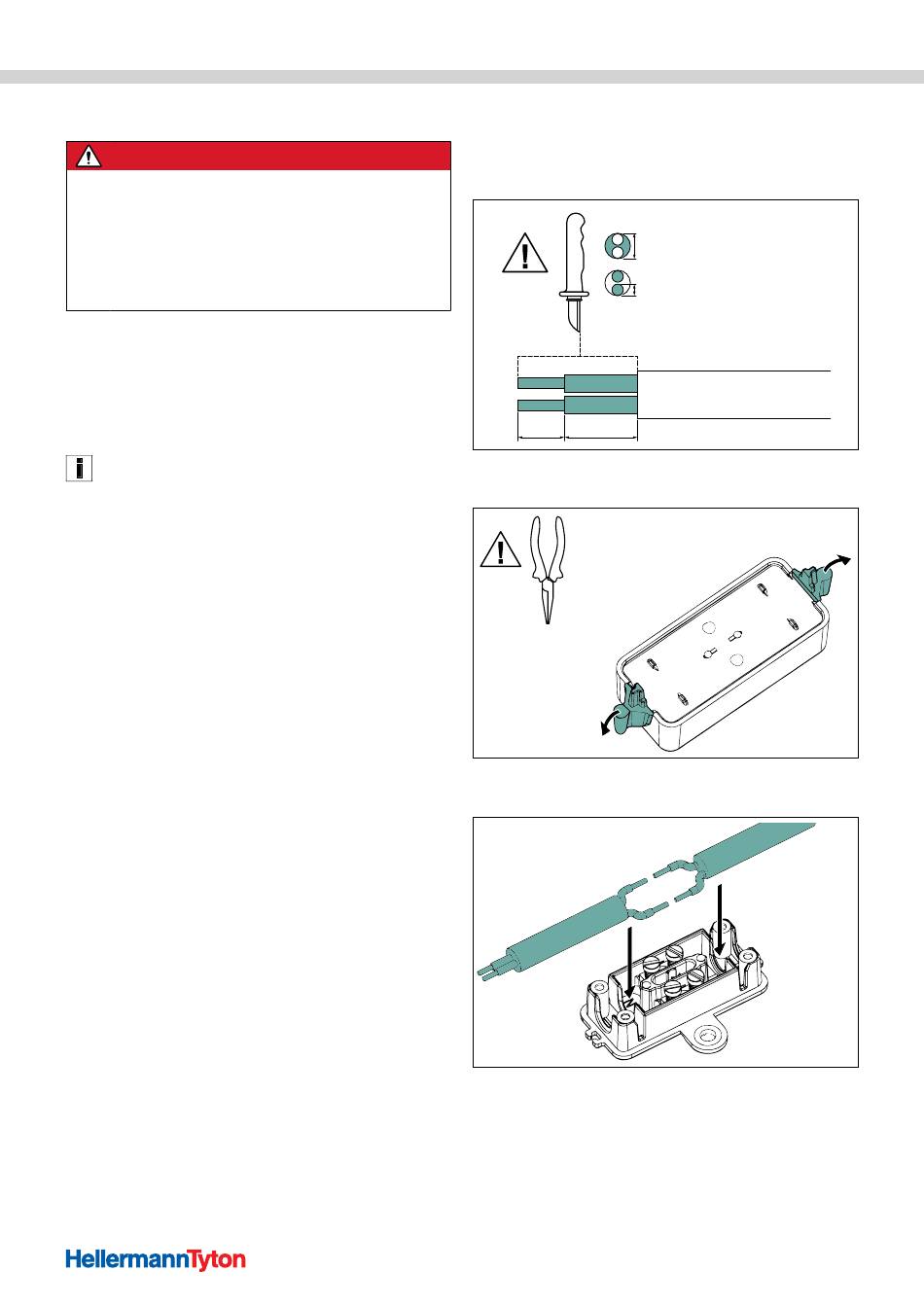

1 Strip the cable as shown in the figure and align the
cores.
4,8 - 6,0 mm
2 x 0,35 - 2 x 0,75 mm²
4 mm 7 mm
Stripping the cable.
2 Break out the spacers.
Breaking out the spacers.
3 Insert the cable into the bottom shell.
Inserting the cable.
