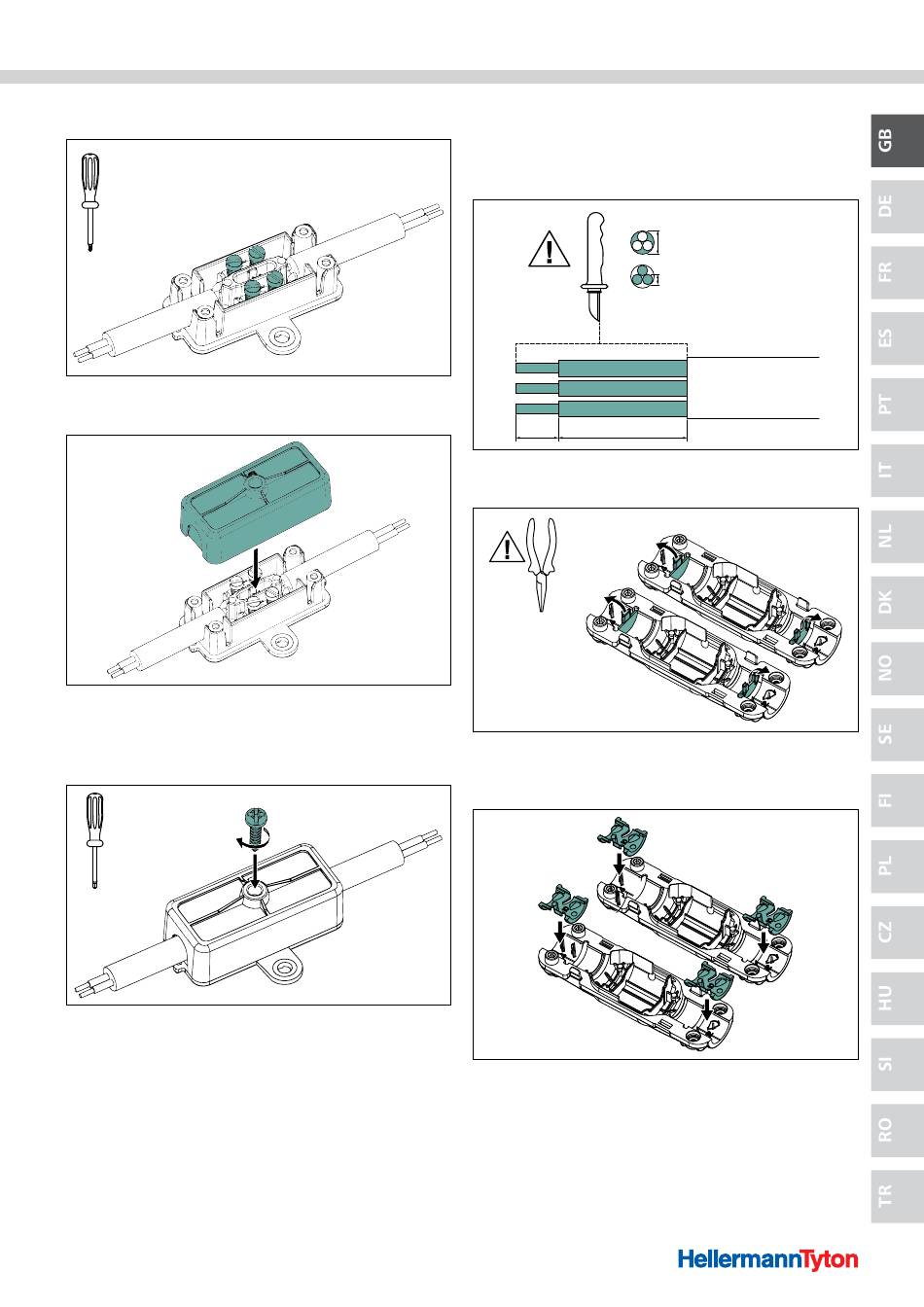

4 Connect the cores with the connector.
Connecting the cores.
5 Place the top shell on the bottom shell.
Assembling the cable joint.
6 Connect the top shell with the bottom shell using the
screw.
f Mount the cable joint onto the wall (optional).
Closing the gel shell.
; The product has been successfully installed.
5 .2 Installing the Relilight V 32 .5 I2
Proceed as follows:
1 Strip the cable as shown in the figure and align the
cores.
8 mm 30 mm
Stripping the cable.
2 Break out the spacers in the top and bottom shell.
Breaking out the spacers.
3 Depending on the cable diameter, insert the adapters in
the cable joint.
Inserting the adapters.
Operating Instructions • Relilight • 09-2016
Installation
6,5 - 12,0 mm
3 x 0,5 - 3 x 2,5 mm²
