Neural Capture
Capture process
Set your microphone position and tweak the device parameters to
your liking.
Reduce levels if any of the meters detect
GROUND LIFT can mitigate noise caused by ground loops.

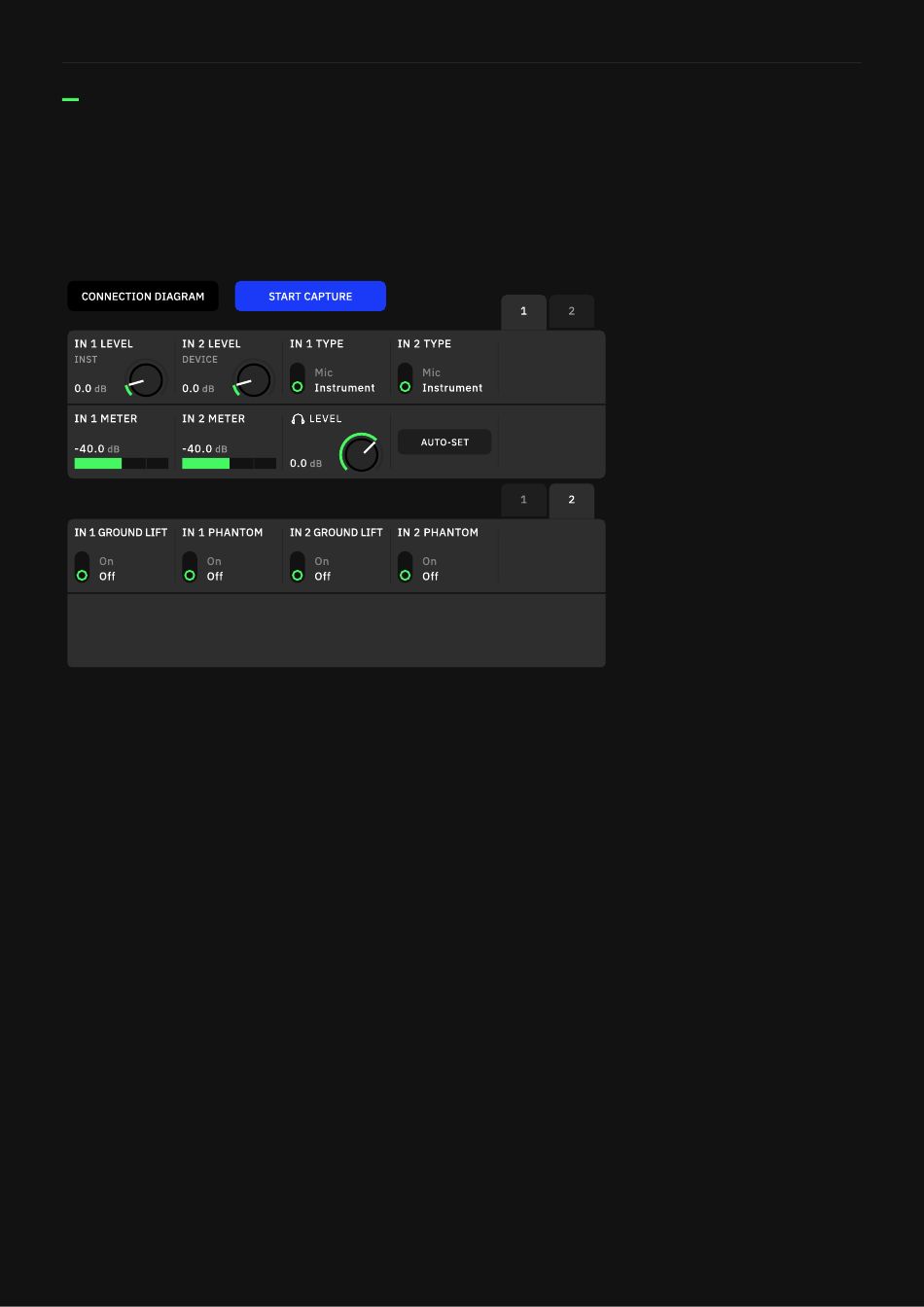

PAGE 1:
•
IN 1 LEVEL KNOB: Sets the input gain of the instrument signal.
•
IN 2 LEVEL KNOB: Sets the input gain of the target device
signal.
•
IN 1/2 TYPE SWITCHES: Toggles between "Mic" and
"Instrument" inputs. Use "Instrument" if the device being
captured is connected to Quad Cortex with a TS cable. Use
"Mic" if the device being captured is connected to Quad Cortex
with an XLR cable.
•
IN 1/2 LEVEL METERS: Input signal meters.
•
HEADPHONE LEVEL KNOB: Sets the output level of the
headphones.
•
AUTO-SET BUTTON: Sets the IN 2 level automatically. Play
your instrument until the IN 1 knob stops moving.
PAGE 2:
•
1/2 GROUND LIFT SWITCHES: Enable them in order to
mitigate noise caused by ground loops, faulty audio cables, or
other sources.
•
1/2 PHANTOM SWITCHES: Engages Phantom Power (48v).
clipping. The IN 2
80
