Setup Examples
Four Cable Method (4cm)
The four cable method allows you to use effects in different stages of the signal chain (pre and
post) in conjunction with an amplifier and cabinet. The Quad Cortex will be used as an effects
processor, therefore the Presets created for this purpose don't need amp or cab device blocks.
This method allows you to place pre effects tools such as overdrives, noise gates, and pitch
shifters before the amplifier. Post effects such as reverbs and delays will sound after the amp.
1. Add an FX Loop device block. Choose FX Loop 1.
2. Add device blocks before and after the FX Loop block.
3. Set the output block as Out 3.

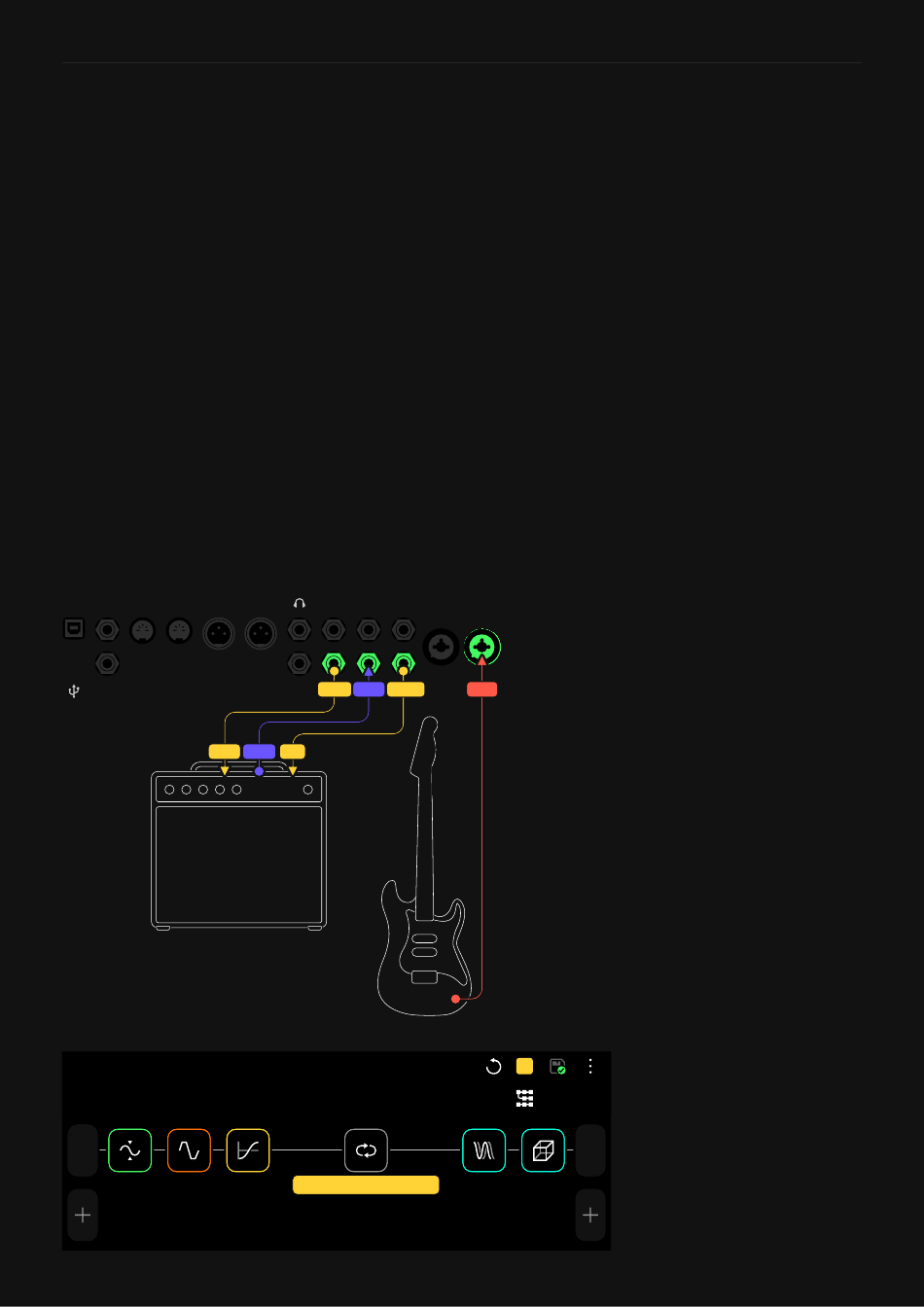

You will need four TS cables for making the connections:
1. Connect your instrument to INPUT 1.
2. Connect OUT 3/L to the amplifier's FX return.
3. Connect SEND 1 to the amplifier's input.
4. Connect RETURN 1 to the amplifier's FX send.
I/O Setup
EXP 2
EXP 1
MIDI
MIDI
OUT 2
OUT
IN
RET
Preset Grid #1
1 4CMv2 Preset
A
In
1
OUT 4/R
RET 2
SEND 2
OUT 1
CAPTURE
OUT 3/L
OUT 3
RET 1
RET 1
SEND 1
SEND 1
OUT
SEND
IN
FX Loop 1 (Send 1 + Return 1)
IN 2
IN 1
IN 1
A
PRESET
Out
3
Why FX Loop 1?
There are many FX Loop
devices. FX Loop 1 takes the
signal from the row where it's
placed and returns it by using
SEND 1 and RETURN 1.
If you want to use SEND 2 and
RETURN 2 for conneccting your
external devices, choose FX
LOOP 2.
66
