Setup Examples
Basic Routing
Quad Cortex offers multiple routing options,
which can be configured through the I/O
Settings screen.

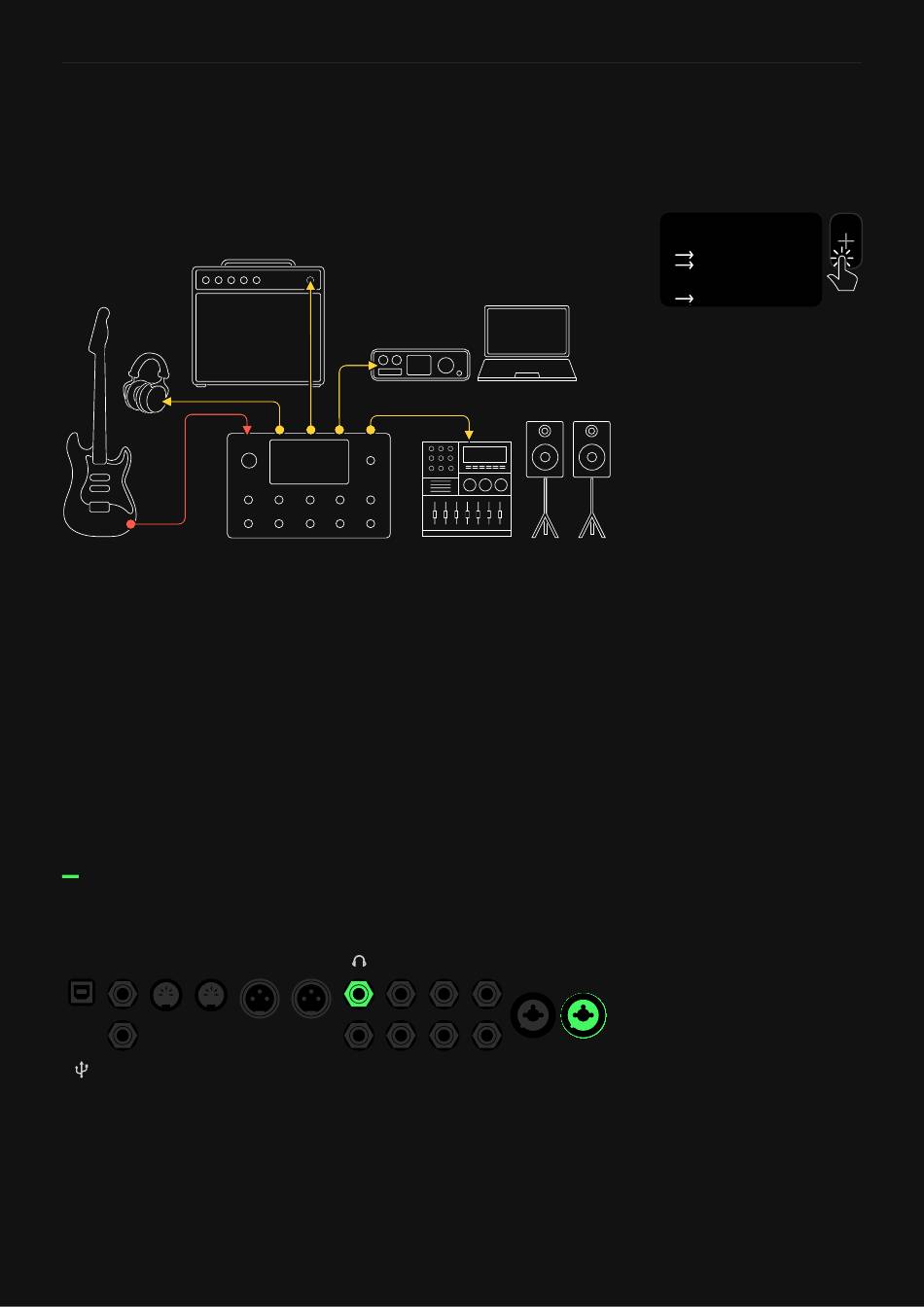

Most signals will begin with an instrument. Factory Presets and
newly created Presets will use In 1 and Multi-Output blocks by
default. The Multi-Out block routes your signal through XLR Outs
1/2 as well as TRS Outs 3/4, and USB. You can use this routing as
a multi-purpose set up to monitor your signal while you're playing.
However, you can use the headphone out of the unit to keep things
even simpler:
1. Connect your instrument to Input 1.
2. Connect your headphones to the Headphone output.
3. Adjust the mix on the I/O Settings screen.
I/O Setup
EXP 2
EXP 1
MIDI
MIDI
OUT
IN
The outlined routing configurations can be used to connect to
FRFR systems, audio interfaces, and many other setups.
OUT 4/R
OUT 2
OUT 1
CAPTURE
OUT 3/L
OUT
RET 2
SEND 2
RET 1
SEND 1
IN 2
IN 1
The Multi-Out block routes your
signal through XLR Outs 1/2
as well as TRS Outs 3/4, and
USB. It's the default setting for
all Factory Presets and newly
created Presets.
STEREO
Multiple Outputs
1/2 + 3/4 + USB 3/4
Output 1/2
Tap any output block in The Grid
then select "Multiple Outputs"
to enable this feature.
60
