Setup Examples

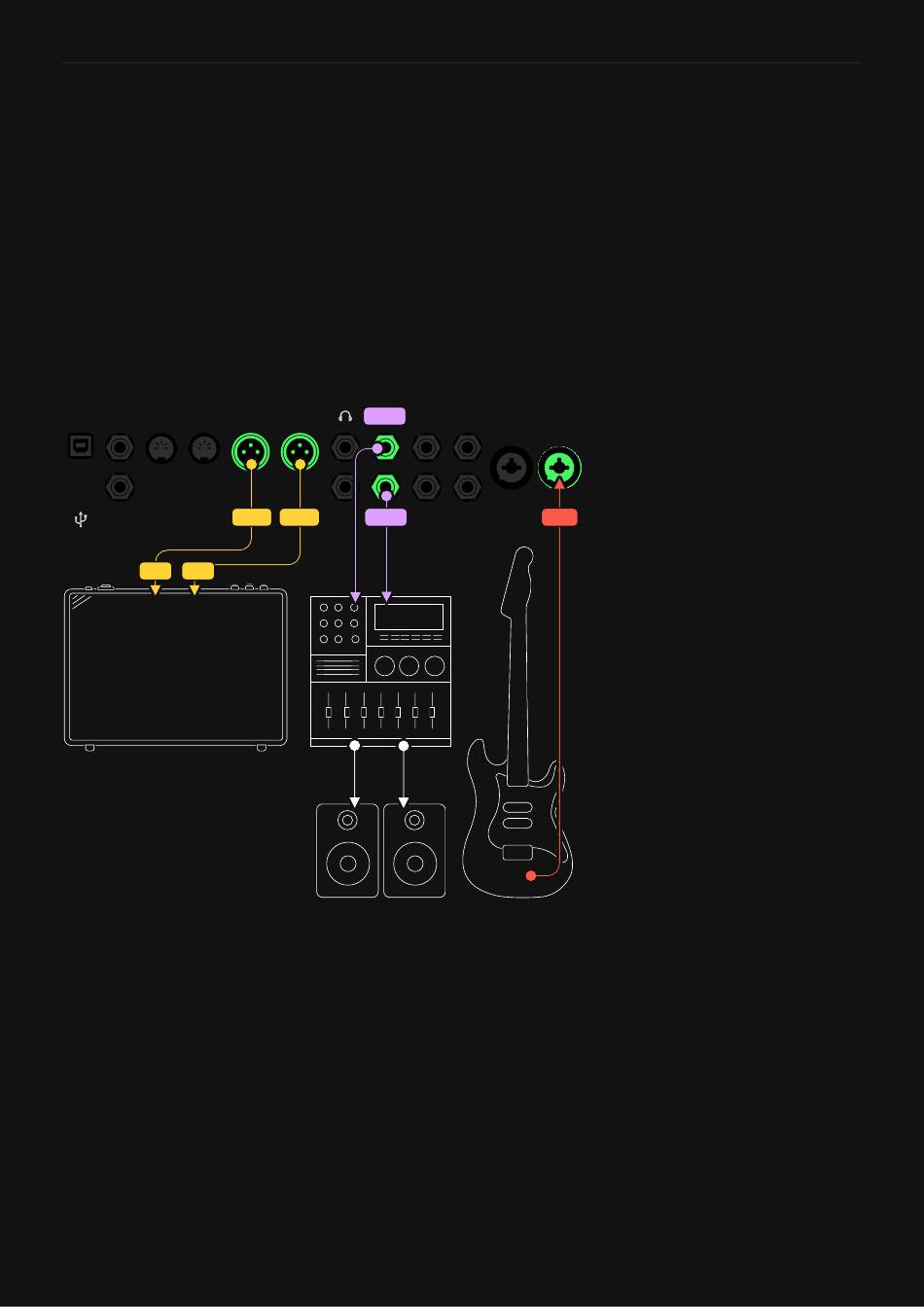

FRFR Monitor + FRFR to Front-of-House
This method is used to send a "copy" of the stereo signal to a
mixing console or another monitoring system.
1. Connect your instrument to Input 1.
2. Connect OUT1/L and OUT2/R to an FRFR system.
3. Use The Grid to patch your signal chain to use Outputs 3 and 4
using an A/B Splitter.
4. Connect OUT3/L and OUT4/R to a mixing console or another
monitoring system.
EXP 2
EXP 1
MIDI
MIDI
OUT
IN
IN 2
IN 1
OUT 4/R
OUT 4
OUT 2
OUT 2
OUT 1
OUT 1
CAPTURE
OUT 3/L
OUT 3
OUT
RET 2
SEND 2
RET 1
SEND 1
IN 2
IN 1
IN 1
Why use an A/B Splitter?
Using an A/B Splitter allows you
to send a custom amount of
signal to each external device.
