Presets
Splitter Stereo Switch
This switch determines the Splitter behavior while using stereo
sources like Input 1/2, Return 1/2, USB input 5/6 and USB input 7/8.
•
Split Mode: Sends the right input (Input 2, Return 2, USB input
6 or 8) to the Splitter/Mixer path.
•
Normal Mode: Sends both left and right inputs to the Splitter/
Mixer path.
Mixer settings:
Depending on the Mixer location and Splitter settings, the Mixer
can receive input signal from

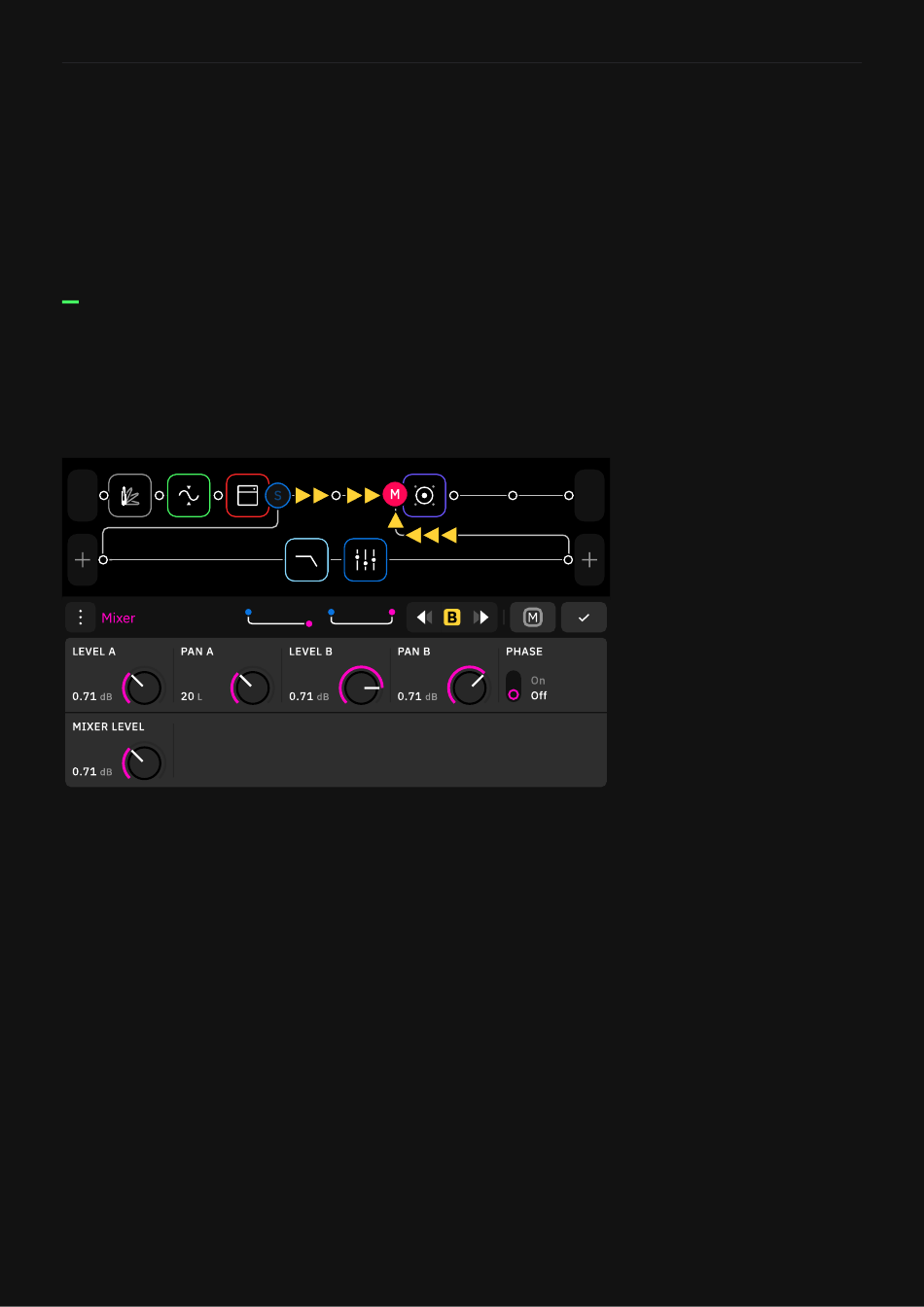

Check the following example:
In
1
Mixer
LEVEL A
PAN A
0.0 dB
10
MIXER LEVEL
0.0 dB
In this particular case, both row 1 and the Splitter/Mixer path are
feeding the Mixer input. Use the following parameters in order to
control the signal levels.
•
LEVEL A KNOB: Sets the row signal level.
•
PAN A KNOB: Controls the panning of the row.
•
LEVEL B KNOB: Sets the Splitter/Mixer level.
•
PAN B KNOB: Controls the panning of the Splitter/Mixer path.
•
PHASE SWITCH: Inverts the phase of the signal workflow.
•
MIXER LEVEL KNOB: Controls the overall level of the Mixer.
two sources
at the same time.
LEVEL B
PAN B
0.0 dB
10
Out
1/2
Mute
Done
PHASE
On
Off
36
