Instructions for installation and use p. 11/36

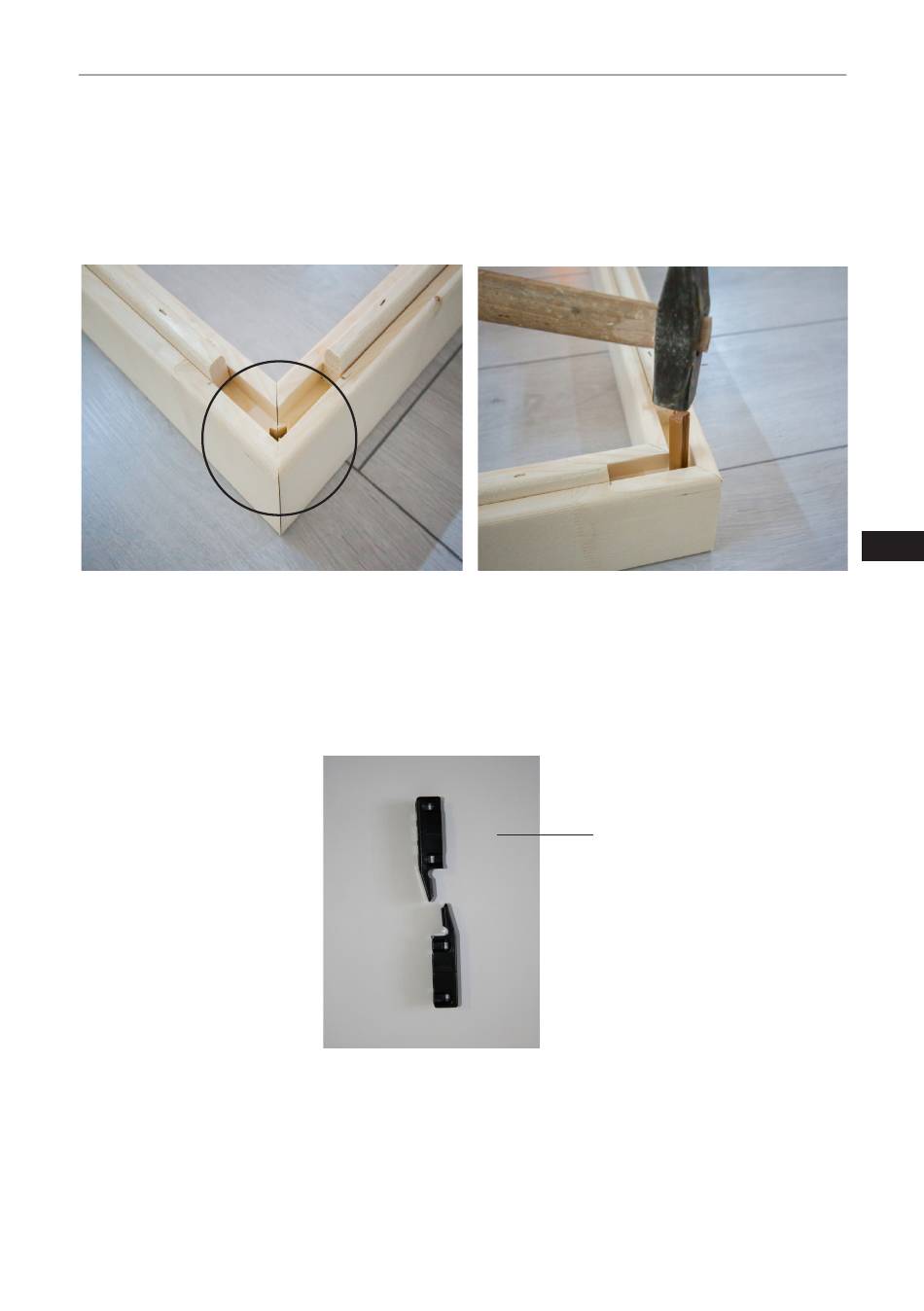

Fig. 2: Connecting the base frame
With a hammer, carefully drive in the plastic dovetail keys on both corners of the
base frame until they are flush with the groove of the element.
Use a punch or a wooden block so that the plastic dovetail key is adequately sunk.
EN
Wall element assembly
The corner posts are connected to the wall elements using Multiclips. The other
wall elements are connected tongue and groove and are screwed together.
Fig. 3: Multiclips
Corner posts
