Step 6:

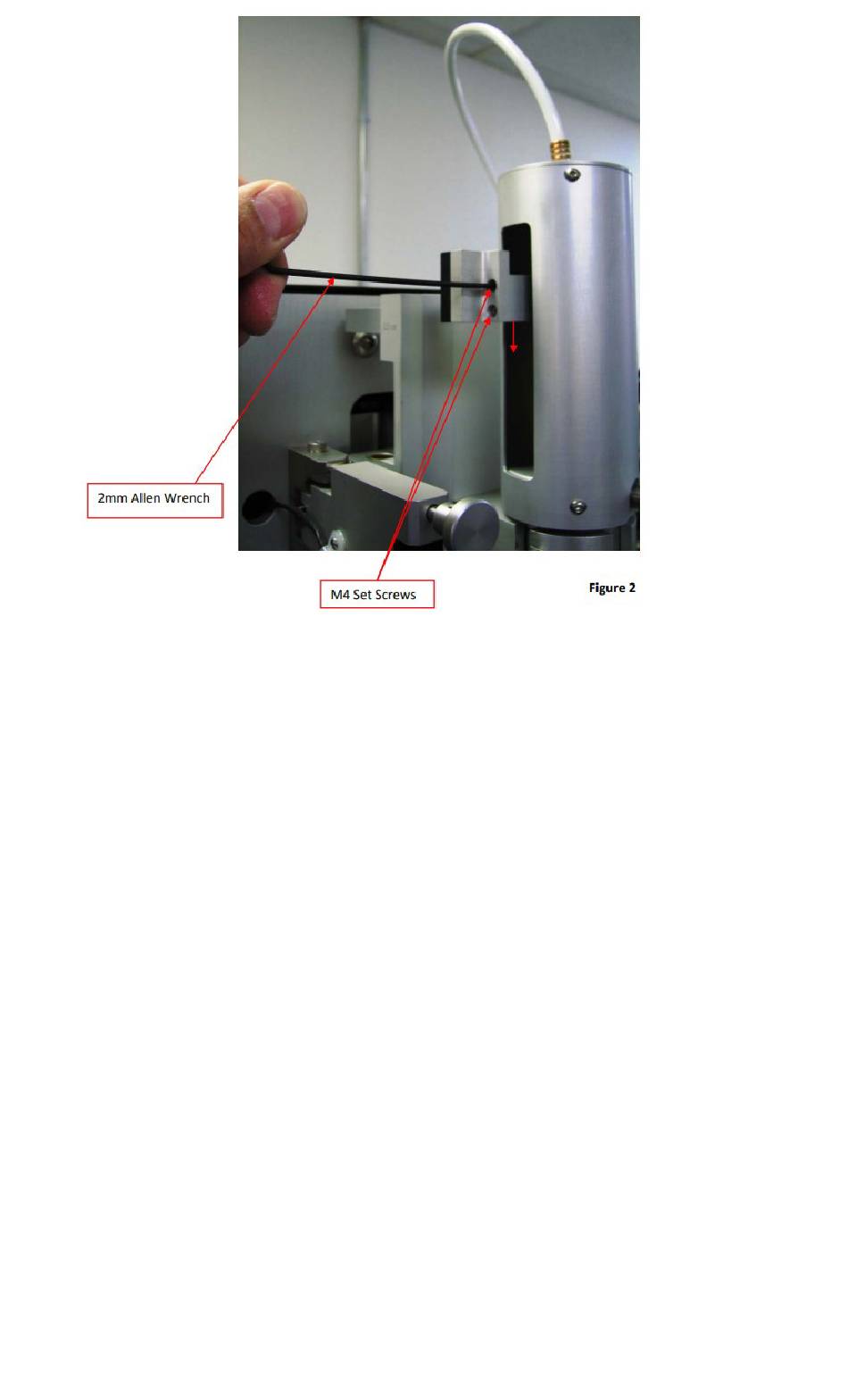

The magnet and sensor need to be checked for proper
alignment after adjusting before operating machine. While
the unit is turned on, engage E‐Stop switch to interrupt
supplied air to the system. Manually move the Plunger
Assembly downward until sensor and magnet block are
aligned at the position as shown, 4 – 6 mm gap must be
maintained for proper sensing.
