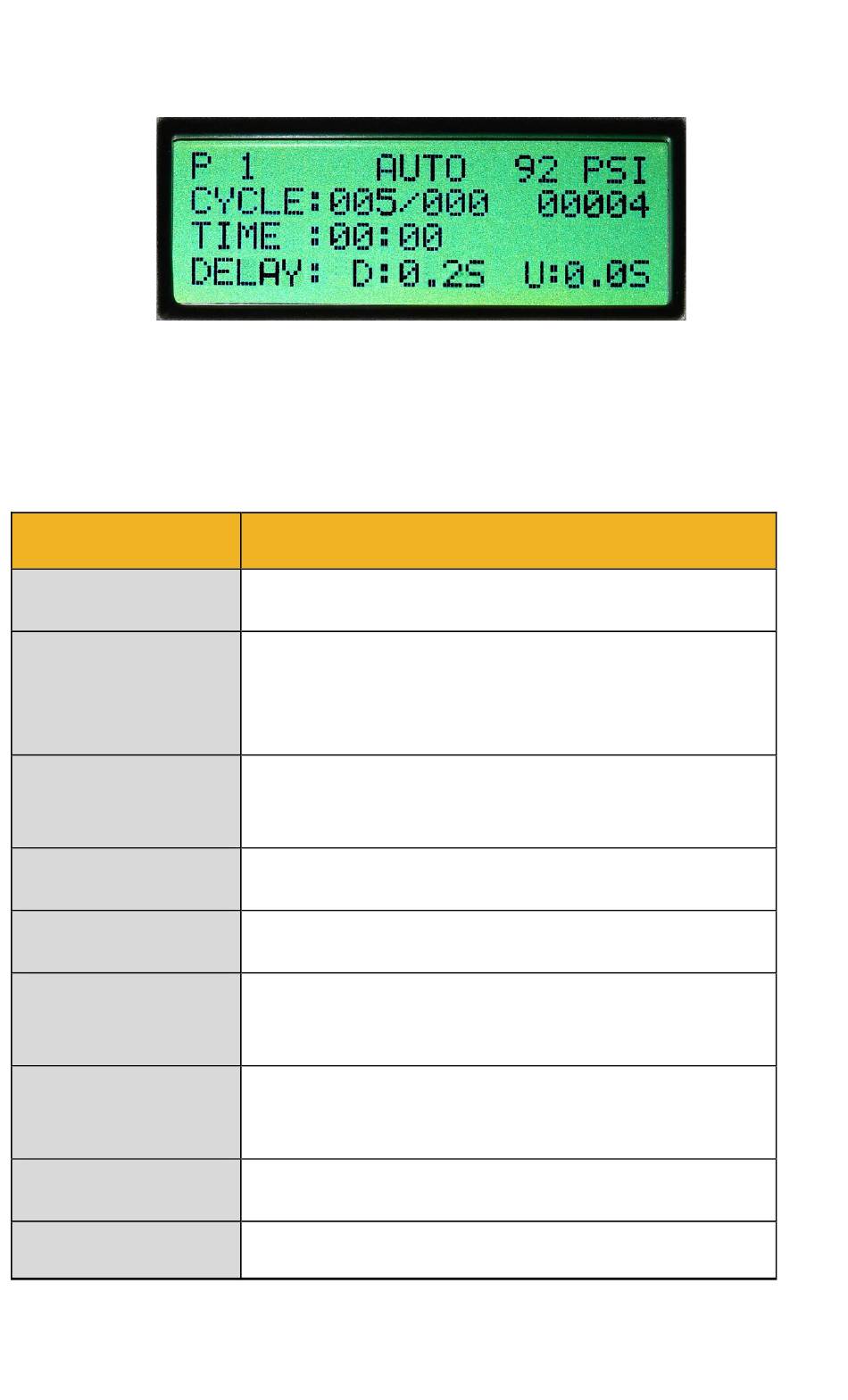

Figure 5.0 Setup Screen Identification
6.2 Operation Function
DESCRIPTION
Plunger
Bracket
Cartridge
Holder
Guide Block
Air Plunger
Inlet
Pressure Relief
valve
Drive Spindle
with Injection
Rod
Start Buttons
(Green)
Control
Buttons
Air Regulator
11
FUNCTION
• Holds plunger assembly when not in use
•
Holds cartridge kit
•
Operates with the plunger assembly and
guide block to drive the cartridge up and
down for mixing
•
Operates with the plunger assembly and
cartridge holder to drive the cartridge up
and down for mixing
•
Provides air to plunger
•
Relief plunger pressure when door is
opened
•
Rotates mix rods during mix cycle
•
Injects the hardener into the resin
•
Starts the unit
•
Press green buttons simultaneously to
start
•
Input buttons (see Fig. 4.0 and Fig. 5.0)
•
Regulates the air pressure to the unit
